Military Thermal Camera Binocular

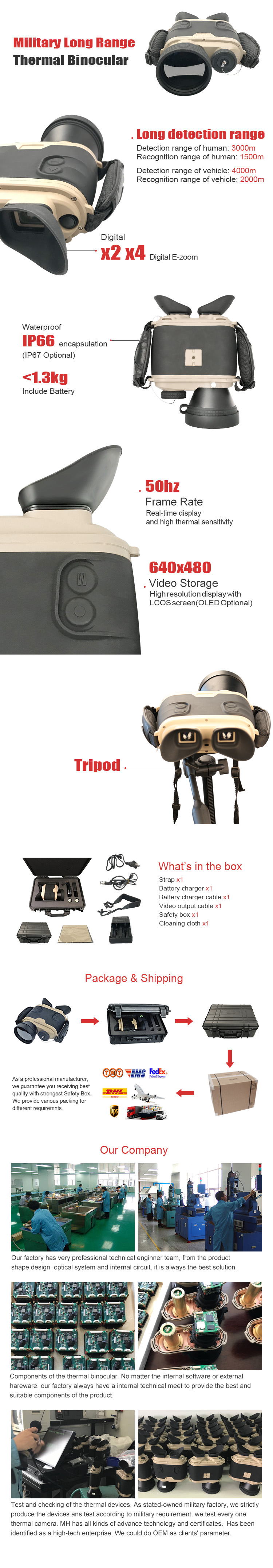

MH6100 Long Range Thermal Binocular, 640*480,17um,100mm focus lens

MH6100 Thermal Binocular Camera is rugged lightweight infrared binocular system that uses the latest in low-power, compact, un-cooled thermal imaging technology. It used a 640x480 un-cooled thermal sensor with 50mm, 75mm and 100mm lens for middle or long distance application. The unique power save design can last battery operation time with fast startup and autofocus ability. Unlike image intensification night-vision devices that only magnify existing light, thermal imaging cuts through darkness, through smoke, dust and most fogs.

SPECIFICATIONS:

Uncooled IR Main Spec

Detector Type: Un-cooled Microbolometer

Spectral Range: 8 ~ 14μm


This affordable product can be widely applications:

· Operations

· Border security

· Commercial and perimeter security

· Man-portable or multifunction surveillance


Ower Consumption

Power Supply: 7.4V 20Wh

Power Dissipation: Less than 3.0W(Not Recording Mode)

Battery Type: F570 (or 2*18650) Lithium ion

Operating Hours: More than 6 hours

Environment

Operating Temperature: -30°C ~ +55°C

Storage Temperature: -40°C ~ +60°C

Protect standard: IP 66

Mechanical

Weight: < 1.4kg (exclude battery)

Dimension(mm): 220(L)/165(W)*85(H)  MAX

Mount Adaptor: Standard tripod mounting

Housing: Full of Aluminum alloy

Array Format: 640 x 480
Pixel Size (Pitch): 17μm
Frame Rate: 50Hz(PAL)
NETD(Typical): < 60mk
Continuous Operation Time: ≥ 6 Hours
Contrast/Brightness: Adjustment Available (Manual or Auto)
E-Zoom: 2, 4
Optical Spec
Focal Length: 100mm
F#: 1.2
Field of View: 8.8°×6.6°
Focus: Motorize
Environment
Working temperature -10℃ to 50℃
Storage temperature -20℃ to 60℃
Protection level IP66
Range Performance
Persons (Standing man)
Object Detection: 2500m
Object Recognition: 1000m
Vehicle (NATO Tank) 2.3m×2.3m
Object Detection: 3500m
Object Recognition: 1500m
Digital Video Recorder
Video format: MPEG4
Storage capacity: 16Gb
Recording Time: >8hours
Output  Interface
Analog Video BNC
Digital Video Storage USB 2.0
Display Spec
Type of Viewfinder: 800X600  0.6''OLED
Phasical spec
Size 260*170*90mm(L*W*H)
Net weight 1000g(excluding battery)
