MH670 Thermal Binocular Camera

Pls click or email to

mh_elec@126.comor jacky@mh-elec.com


MH-70-6 Thermal Binocular Camera

thermal binoculars

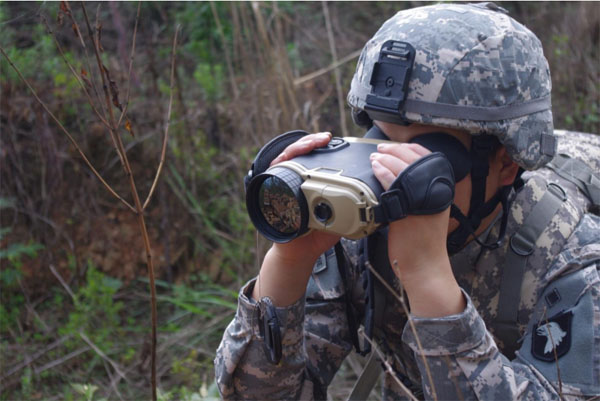

MH670 Thermal Binocular Camera is rugged lightweight infrared binocular system that uses the latest in low-power, compact, un-cooled thermal imaging technology. It used a 640x480 un-cooled thermal sensor with 70mm lens for middle or long distance application. The unique power save design can last battery operation time with fast startup and autofocus ability. Unlike image intensification night-vision devices that only magnify existing light, thermal imaging cuts through darkness, through smoke, dust and most fogs.


SPECIFICATIONS:


Uncooled IR Main Spec


Detector Type: Un-cooled Microbolometer

Spectral Range: 8 ~ 14μm


This affordable product can be widely applications:


· Border security

· Commercial

· Man-portable or multifunction surveillance


Ower Consumption


Power Supply: 7.4V 20Wh

Power Dissipation: Less than 3.0W(Not Recording Mode)

Battery Type: F570 (or 2x18650) Lithium ion

Operating Hours: More than 6 hours


Environment


Operating Temperature: -30°C ~ +55°C

Storage Temperature: -40°C ~ +60°C

Protect standard: IP 66


Mechanical


Weight: < 1.4kg (exclude battery)

Dimension(mm): 220(L)X165(W)X85(H)  MAX

Mount Adaptor: Standard tripod mounting

Housing: Full of Aluminum alloy


Array Format: 640 x 480
Pixel Size (Pitch): 17μm
Frame Rate: 50Hz(PAL)
NETD(Typical) : < 60mk

Continuous

Operation Time:

≥ 6 Hours
Contrast/Brightness:

Adjustment Available

(Manual or Auto)

E-Zoom: × 2, × 4
Optical Spec
Focal Length 70mm
F#: 1
Field of View: 8.8° 6.6°
Focus: Motorize
Range Performance

Persons

(US DoD Standing man)

Object Detection: 2500m
Object Recognition: 1000m
Vehicle (NATO Tank) 2.3m 2.3m
Object Detection: 3500m
Object Recognition: 1500m
Digital Video Recorder
Video format: MPEG4
Storage capacity: 16Gb
Recording Time: >12hours
Output  Interface
Analog Video BNC
Digital Video Storage USB 2.0
Display Spec
Type of Viewfinder: 800X600  0.6''OLED
Color: Monochrome/ Colors (Optional)
