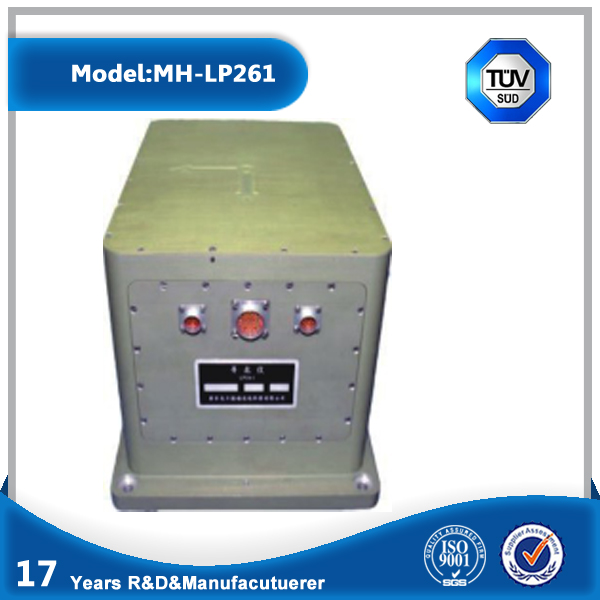

MH-LP261 Rugged North Seeker
As an inertial system product manufacturer, LP261 comprises the latest North Seeking Gyro technology which provides
highly accurate and reliable data. Featuring a Ring Laser Gyroscope(RLG), LP261
North-seeker gives best performance at a consumer price and is widely applied
to informationized automotive vehicles with a
certain anti-shake capability. The high-speed continuous North
Seeking Gyro is characterized by high precision, excellent reliability,
strong environmental adaptability.
High-accuracy North-seeker based on Ring Laser Gyroscope(RLG) for
LP261 type is applied to informationized automotive vehicles with a certain anti-shake capability.
Adopted Ring Laser Gyroscope(RLG) as the core inertial device, it is
characterized by high precision, excellent reliability, strong
environmental adaptability.
（1）Main
Characters
It has
conversion capability between UTM coordinate system and WGS84 coordinate system.
The operational
interface is visual and succinct.
It can work
properly in the temperature range from -40°C to 65°C.
（2）Main
Applications
It has been
widely used in the field of land vehicle, industrial applications, precise tilt
measurement, measurement and calibration of laboratory equipment as well as
heavy equipment, road, rail, aviation, shipping.
（3）Technical
Specifications
|
NO.
|
ITEM
|
INDEX
|
NOTES
|
|
1
|
North
-seeking Time
|
5min
|
|
|
2
|
North
-seeking Accuracy
|
0.5mil/1mil
|
Selectable Precision
1σ
|
|
3
|
Operating
Temperature
|
-40°C～70°C
|
|
|
4
|
Impact Force
|
30g
|
|
|
5
|
Dimensions
|
340m
mX230mm
X220mm
|
|
|
6
|
Weight
|
≦16kg
|
|
|
7
|
Power
|
18v～36v
|
|
|
8
|
Data Communication
|
RS422、Ethernet Channel
|
|
|
9
|
Reliability
Prediction
|
≧1500h
|
|
|
10
|
Baud Rate
|
115200bps
|
Selectable
|
