DIC 3D full-field strain measurement and analysis system
2021-03-18
DIC uses high-precision digital image correlation algorithms to provide experimenters with non-contact dynamic full-field three-dimensional strain and displacement measurement.
DIC technology can be used in ordinary indoor and outdoor environments. The strain measurement range is from 0.005% to 2000% or more. With different image acquisition hardware, the measurement object size can be from a few Square millimeter to tens of Square millimeter, and the larger measurement format can also be customized. In theory, as long as high-quality images can be obtained within this measurement range, accurate strain and deformation measurements can be performed.

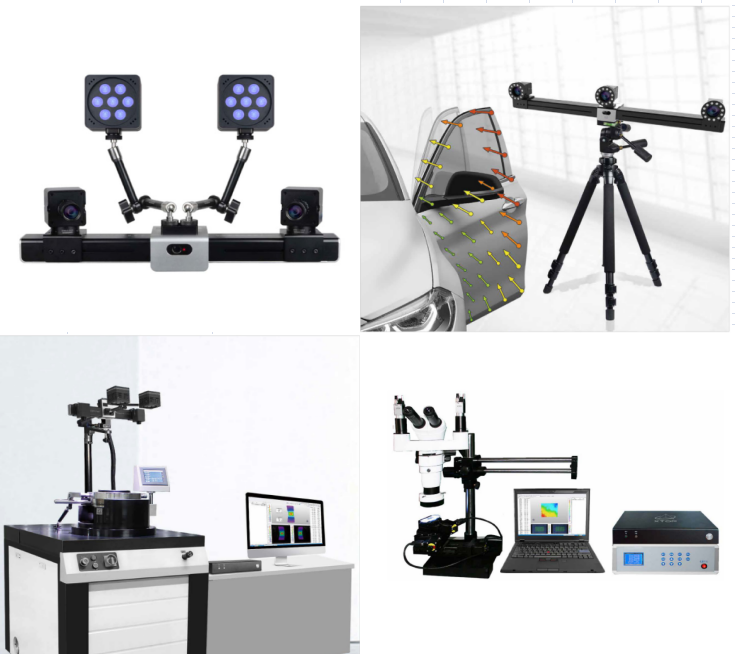

The DIC three-dimensional full-field strain measurement and analysis system can be combined with the binocular stereo microscope technology to realize the measurement of the three-dimensional coordinates, displacement field and strain field of the surface during the deformation of small objects.

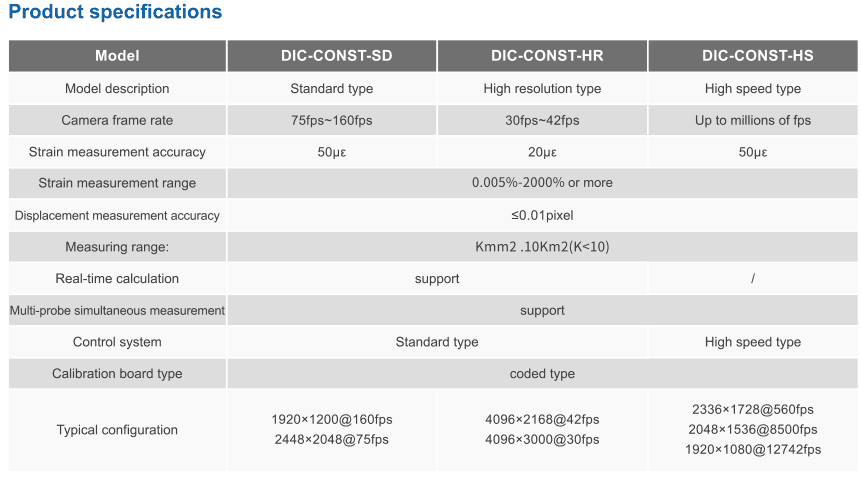

We have four series of products to provide you best solution. Below are specifications for our DIC CONTST for your reference first:
For other models and more information, please contact your sales engineer. Thank you!
