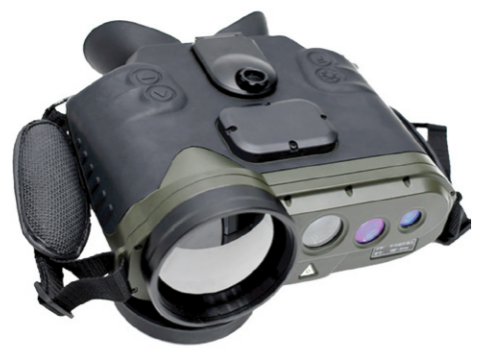

MH-900 Multifunctional Thermal Vision Binocular
2021-02-24
he MH-900 series is multi-purpose reconnaissance system, advanced hand-held, fully integrated muti-function thermal imager binocular, which allows the user to detect and located target. It can get the coordinates and directions of the targets in day and night with thermal image or day light Camera. MH-900 series equipped with a latest UN-cooled thermal imager, eye safe laser range finder, integrated GPS/GNSS， digital magnetic compass (DMC) and visible light camera. The system provides silent operation, advanced target location and image storage capability to work well in a wide variety of battlefield conditions.
MAIN FEATURES
* Uncooled Thermal Imager
* Daylight Night vision
* GPS/GNSS
* Digital Magnetic Compass(DMC)
* Eye-safe Laser Range Finder
* Silent Operation
|
Thermal Detector
|
|
Detector Type
|
Uncooled FDA Detector
|
|
Array Size/Resolution
|
640×512
|
|
Spectral range
|
8～12μm
|
|
Detector Pitch
|
12μm
|
|
Frame rate
|
50Hz(PAL)
|
|
Polarity
|
White hot/Black hot（pseudo-color）
|
|
NETD
|
≤50mK@25℃,F#1.0
|
|
Contrast/Brightness
|
Auto/Manual
|
|
Image Processing
|
|
Image Denoise
|
Digital filter
|
|
Image Enhancement
|
Digital Detail Enhancement
|
|
E-zoom
|
1-4x
|
|
Infrared Optical
|
|
Focus mode
|
Motorize Focus
|
|
IR Lens
|
f=85mm, F# 1.0
|
|
Field of view
|
5.2°×4.1°
|
|
Focus Range
|
8m～∞
|
|
Micro Display
|
2×0.5’ OLED（1024×768 pixels ）
|
|
Eyepiece Magnification
|
12×
|
|
Laser Range Finder
|
|
Wave Length
|
1.55um (eye safety)
|
|
Measure distance
|
50-4000m (Max 5000m)
|
|
Accuracy
|
< 2m
|
|
Accuracy rating
|
>98%
|
|
Visible Light Parameters
|
|
Sensor
|
Ultra-Low Light CMOS
|
|
Effective pixels
|
1280×960
|
|
Focal Length
|
f =35mm
|
|
Working luminance
|
0.001Lux （black & white）
|
|
Features
|
WDR\3Ddenoise\Automatic shutter
|
|
GPS/DMC
|
|
Accuracy
|
CEP < 5m
|
|
Digital Magnetic Compass
|
|
Azimuth accuracy
|
<±0.5° (RMS)
|
|
Pitch angle
|
<±0.2° (RMS)
|
|
System Parameters
|
|
Target Localization
|
1.5% CEP
|
|
Secure Me
|
Optional
|
|
External interface
|
USB2.0/RS-232C
|
|
Mount Adaptor
|
1/4' Standard tripod mounting
|
|
Observation Distance
|
|
Man (1.8x 0.92m)
|
Detection:4500m(IR)
|
|
Recognition: 1300m(IR)
|
|
Vehicle (2.3 x 2.3m)
|
Detection:7500m(IR)
|
|
Recognition: 3000m(IR)
|
