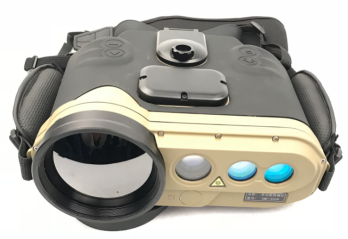

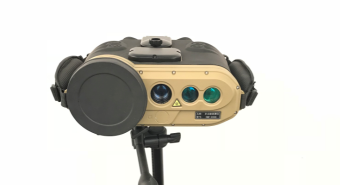

MH850 Multi-Function Thermal Binocular
|
|
Model
|
MH850
|
|
|
Thermal Imager
|
|
Detector
|
Uncooled FPA Detector
|
|
Spectral range
|
8～12μm
|
|
Resolution
|
640×480@17μm
|
|
Frame rate
|
50Hz
|
|
NETD
|
≤ 60mK
|
|
Focal length
|
85mm(F# 1.0)
|
|
Focus
|
Auto focusing，8m～∞
|
|
FOV
|
7.3°× 5.5°
|
|
Micro display
|
0.6 inch OLED/（800×600）
|
|
Start up time
|
< 5S
|
|
E-Zoom
|
2x/4x
|
|
Pole
|
white hot/black hot（optional pseudo-color）
|
|
Contrast/Brightness
|
Auto/Manual
|
|
Reticle
|
moveable、storable、graphic editable
|
|
Laser Range Finder
|
|
Wave Length
|
1.55μm (Eye Safety)
|
|
Measure distance
|
50～4000m（Max 5000m）
|
|
Accuracy
|
<±2m
|
|
Accuracy rating
|
> 98%
|
|
Visible Light Parameters
|
|
Sensor
|
1/2' Ultra low light night vision
|
|
Visible light
|
700TVL
|
|
Field of view
|
9.0°×7.0°
|
|
Working luminance
|
0.001Lux（black & white）
|
|
Focal length
|
f =35mm
|
|
Specialty
|
D-WDR、3Ddenoise、automatic shutter
|
|
GPS/DMC
|
|
Accuracy
|
CEP< 5m
|
|
DMC
|
3D heading accuracy less than1°
|
|
WIFI
|
YES
|
|
Video recording
|
|
Photo format
|
JPEG
|
|
Video format
|
640×480@50Hz
|
|
Storage capacity
|
Standard 16G
|
|
Recording time
|
Around 10 hours
|
|
Interface
|
USB 2.0
|
|
Power supply
|
|
Power source
|
7.2V/3000mAH
; 2×18650 Lithium ion
|
|
Average Power
|
＜4.0W
|
|
Operating Time
|
≥5 hours
(observing pattern)
|
|
Environments
|
|
Protect standard
|
IP66
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Humidity
|
5%~95%(Non-Condensing)
|
|
Vibration
|
Sweep frequency:5-200-5Hz
,Acceleration 2.5g
|
|
Impact
|
30g/11ms Half sine wave
|
|
Physical parameters
|
|
Net weight
|
Less than 2.3K
g（include Battery）
|
|
Dimension
|
255×230×95（L×W×H）
|
|
Housing
|
Magnesium and aluminum alloy
|
|
Suitcase
Dimension (mm)
|
460×350×180（L×W×H）
|
|
Mount adaptor
|
1/4 'standard tripod mounting
|
|
Observation Distance
|
|
Man (1.8×0.92m)
|
Detection: 2500m
|
|
Recognition: 1000m
|
|
Vehicle (2.3×2.3m)
|
Detection: 4000m
|
|
Recognition: 1500m
|
