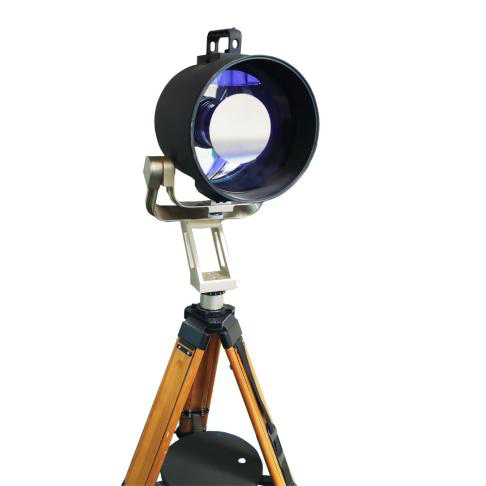

Model
|
MH-413 Gen3
|
|
Magnification
|
16x
|
|
FOV, deg
|
3°
|
|
Focus range
|
200m-infinity
|
|
Exit pupil
|
4.5mm
|
|
Diopter adjustment
|
-1
|
|
Reticle scal-division value
|
5 mils
|
|
Battery type
|
1xCR123 lithium battery
|
|
Battery lifetime
|
80 hours
|
|
Dimension(mm)
|
400x250x250
|
|
Net weight
|
12kg
|
|
Gen 3 image intensifier tubes
|
|
Photocathode type
|
18mm S-25
|
|
Photocathode sensitivity, typical, μA/lm
|
≥550
|
|
Resolution, typical, Ip/mm
|
57-64
|
|
Luminous gain, typical, fl/fcd
|
19000-25000
|
|
Signal-to-noise ratio, typical
|
20:1 or better
|
|
FOM, typical
|
≥1150
|
|
Tube reliability standard, hour
|
10000
|
|
Keep time, typical, year
|
10
|
|
Warranty, year
|
1
|
|
Effective distance
|
|
Detection range, approx., m/yard
-quarter moon
-cloud cover
|
up to 2800/3000
up to 2500/2800
|
|
Recognition range, approx., m/yard
-quarter moon
-cloud cover
|
up to 2200/2400
up to 1600/1800
|
|
5mW IR illuminator, approx., m/yard
|
up to 100/24
|
|
Environment data
|
|
Operating temperature, ℃/℉
|
-40° to +50° / -40° to +122°
|
|
Storage temperature, ℃/℉
|
-30° to +50° / -86° to +122°
|
|
Waterproof rate
|
IPX4
|
|
Humidity, %
|
up to 98%
|
