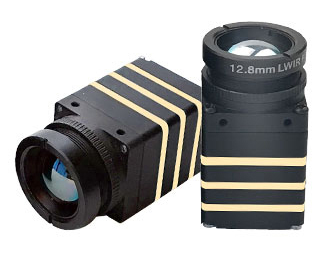

MH-SM567-3 Mini thermal imaging core 384*288
2020-12-30
MH-SM567-3 is one of the smallest thermal imaging modules in the world, which uses the latest Gen2 384*288px@17um FPA uncooled detector. The module can offer the brilliant video quality and customized connection interface. Believe it or not, it will bring you great success in your system integration. There is a extreme power consumption and small-size (PCB: 20mmX20mm) uncooled thermal imaging core. Weight is only 12g！Compact design makes it well-suited for OEM assembly and integration.
MH-MINITC384+ 12.8mm lens=57.6g
But MH-SM567-3+12.8mm lens =25.8g!!
Its size is 20*20*35.66mm!!
Benefits & features:
Low power
Low power consumption for easy integration, also in portable systems
High resolution
384*288 Image resolution
Easy connectivity
Various interfaces available
Small size, 17 μm pixel pitch
Small formfactor thermal imaging core with excellent image quality
50 Hz frame rate world wide
Interface of mini thermal imaging core:
1. Standard: Integrated date interface
2. Optional: Camera link / USB / MCX / RJ45
Application:
l UAV
l Night vision
l Thermal sights
l Border security
l Fire fighting
l Driver assistance
l imaging.
l Police surveillance
l Electro optical payloads
And so on
