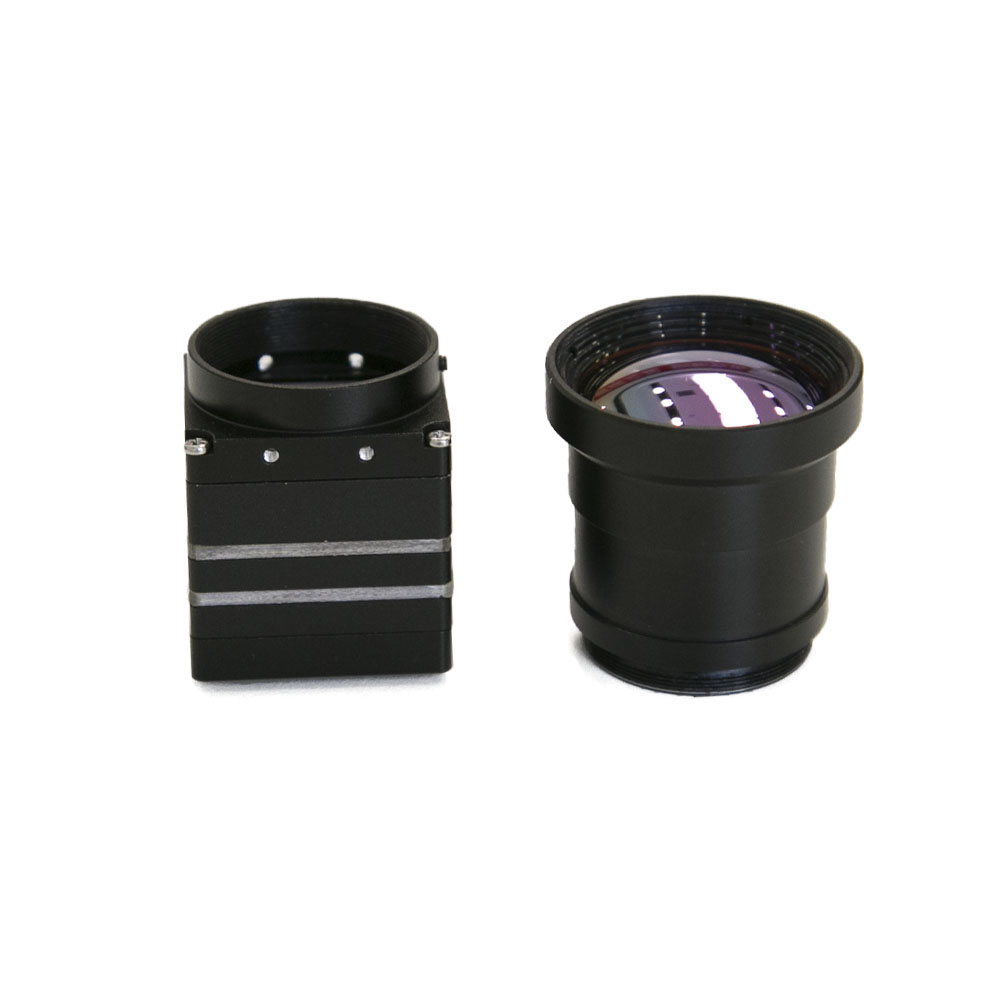

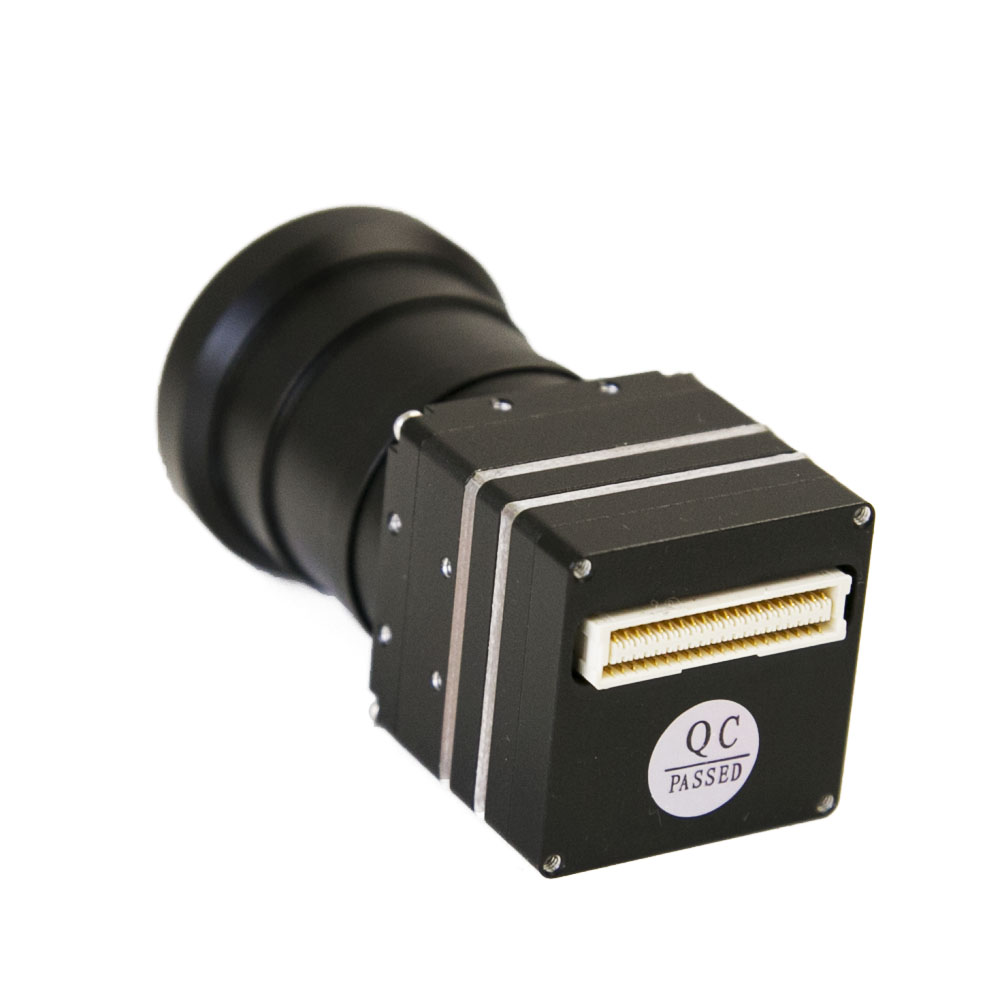

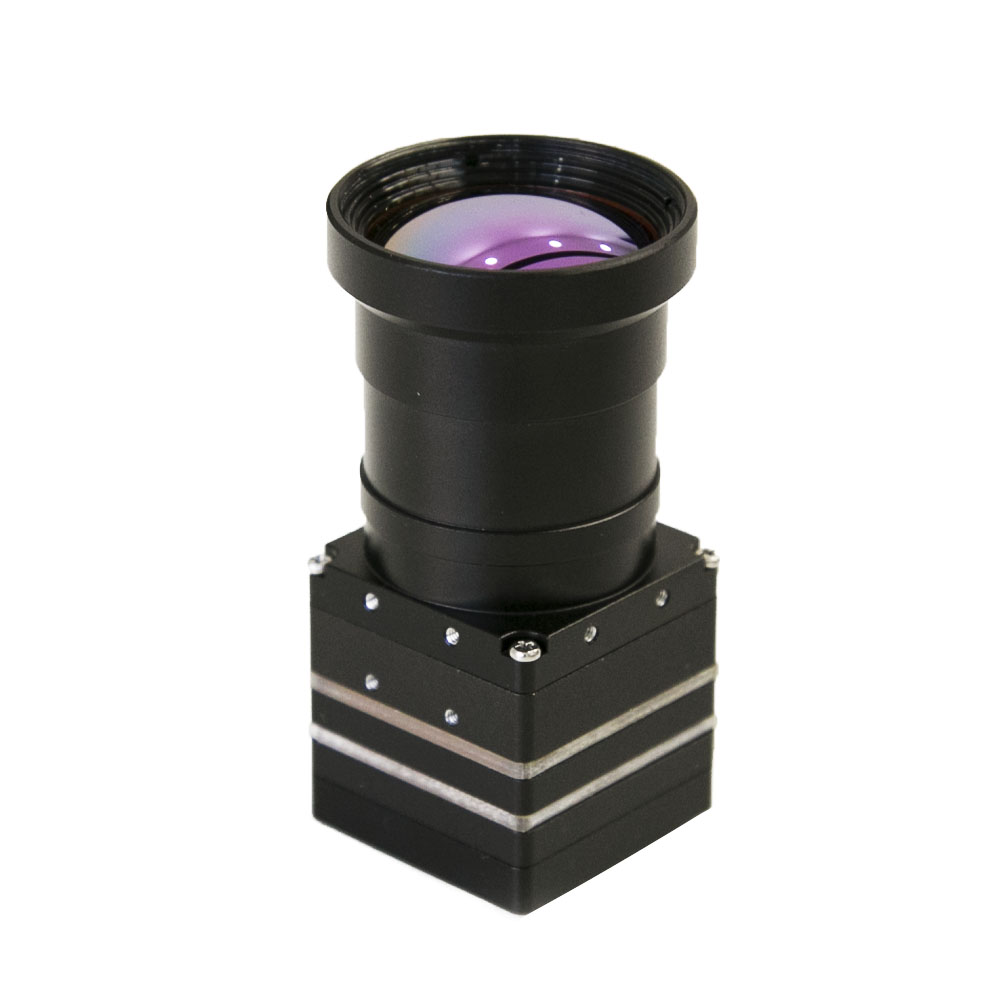

| Advanced 384*288px thermal module with 25 mm lens |
thermal modules are one of the smallest thermal imaging modules in the world, which use the latest Gen2 384x288@ 17um FPA
uncooled detector. Offering the brilliant video quality and customized
connection interface, it will bring you great success in your system
integration.
This is a extreme low power consumption and small-size
(PCB：20mm X 20mm ) uncooled thermal imaging core. Compact design makes it well-suited for OEM assembly and integration.
|
DetectorPerformance
|
|
Type
|
Uncooledamorphoussilico
nFPA(NonTEC)
|
|
FPAformat/Pixelpitch
|
384×288px/17um Gen2
|
|
NETD
|
≤30mk at f/1.0 300K
|
|
Framerate
|
50Hz
|
|
Spectralrange
|
8~14um
|
|
ImageProcessing
|
|
Non-
uniformitycorrection
|
Self-adaptioncalibration
|
|
Timetoimage
|
<3s
|
|
Imageenhancement
|
DDE
|
|
Imagedisp
layresolution
|
640×480
|
|
Framerate
|
50Hz(PAL)
|
|
Lens
|
Optional7mm,9mm
,12mm,19mm,
25mm,35mm
|
|
DisplayControl
|
|
Modes
|
Whilehot/blackhot
/(Optionalcolorful)
|
|
Imagezoom
|
×2,×4digitalzoom
|
|
Brightness
|
Auto/manual
|
|
Contrast
|
Auto/manual
|
|
Imagereversal
|
Horizontal/Vertical
|
|
Crosshair
|
Oneormore
|
|
Power
|
|
Operation
Voltagerange
|
DC:+2.5V~+5.5V
|
|
Typical
|
DC:3.7V
|
|
Powerconsumption
|
<0.9W
|
|
Reverseprotection
|
Yes
|
|
Over/
undervoltageprotection
|
Yes
|
|
EnvironmentParameters
|
|
Operation
temperaturerange
|
Commercial:
-20ºC~+60ºC
|
|
Specialpurpose:
-40ºC~+60ºC
|
|
Storagete
mperaturerange
|
-45ºC~+65ºC
|
|
Humidity
|
5%~95%non-condensing
|
|
Anti-
Vibrationandshock
|
GJB150-162.3.1
|
|
GJB150-18T7100g/6ms
|
|
Temperature shock
|
-5ºC/min（-40ºC~+60ºC）
|
|
PhysicalAttributes
|
|
Weight(excludeslens)
|
12g
|
|
ModuleSize
|
20*20mm
|
|
ExternalPowersupply
|
Yes
|
|
Digitalvideooutput
|
14Bit(50Hz)/BT.65
6(customized)
|
|
Communication
|
RS-232orRS-485
|
