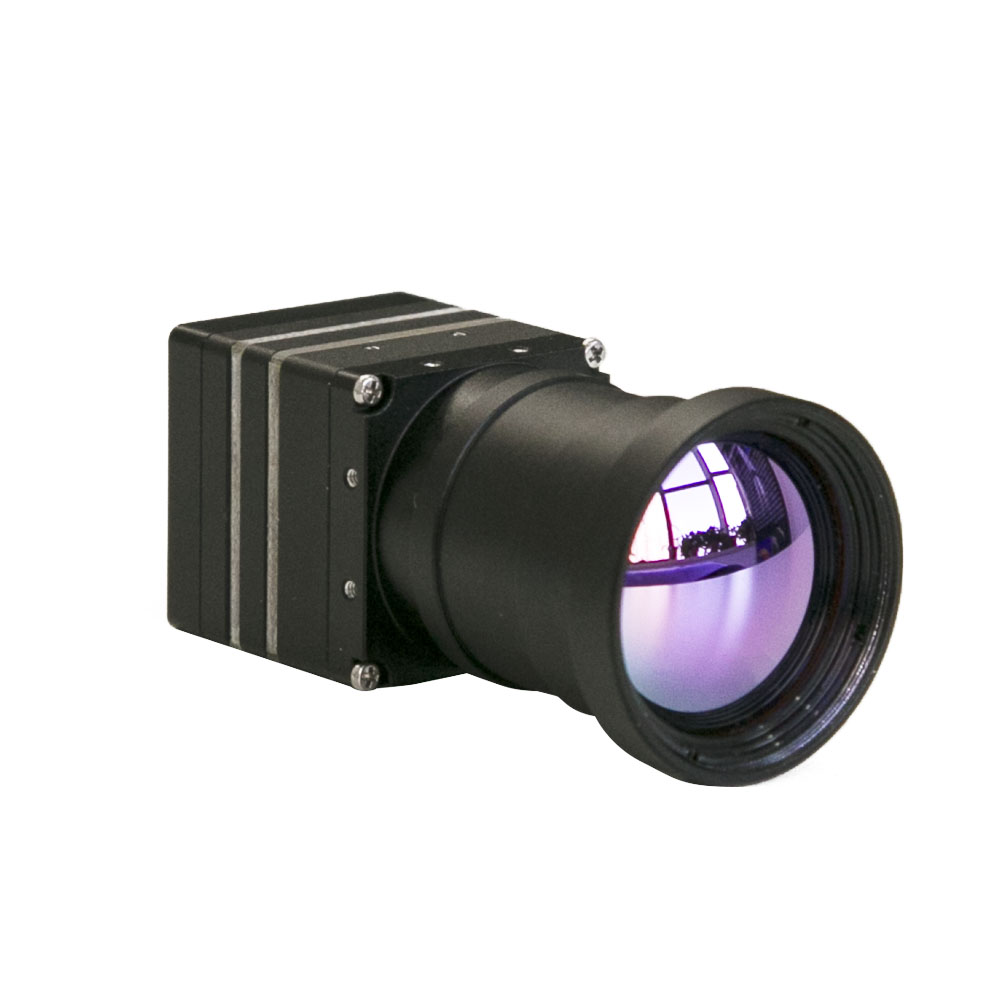

MH-MINITC384 Thermal imaging core 384*288 resolution with 25mm lens
2020-12-18
The longwave infrared (LWIR) thermal camera module sets a new standard for size, weight, power, and performance (SWaP). It utilizes infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. The 17 µm uncooled amorphous silicon detector comes in two resolutions – 640 x 480 or 384 x 288. It is available with multiple lens configurations, adding flexibility to integration programs.
MH-MINITC384 thermal modules are one of the smallest thermal imaging modules in the world, which use the latest 384*288px@17μm FPA uncooled detector. Offering the brilliant video quality and customize connection interface, it will bring you great success in your system integration.
About model MH-MINITC384:
Weight: only 33g(exclude lens)
Size: 27*28*33mm
Detector type: Uncooled amorphous silicon FPA
FPA formal/pixel pitch: 384*288px @ 17um
Spectral range: 8~14um
Sensitivity: NETD ≤30mk at / f/1.0 300k
Non-uniformity correction: Self-adaption calibration
Time to image: < 3s
Image enhancement: DDE
Image display resolution: 640*480px
Frame rate: 50Hz
Lens: Optional 9mm, 12mm, 19mm, 35mm etc.
Modes: white hot / black hot / optional colorful
Image zoom: x2, x4 digital zoom
