| MH-MINTC384 Thermal Imaging Core with lens for drones |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
MH thermal module could see further clear,like mountains;see near clear, even though hairs.
MH longwave infrared (LWIR) thermal camera CORE sets a new standard for size, weight, power, and performance. It utilizes MH's infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. It is available with multiple lens configurations, adding flexibility to integration programs.
Specification:
|
Detector Performance
|
|
Type
|
Uncooled
amorphous silicon FPA
(Non TEC)
|
|

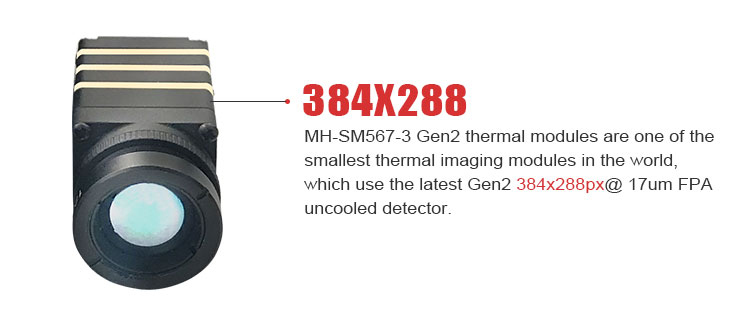

FPA format/
Pixel pitch
|
384*288px (Gen2)
|
|
Sensitivity
|
≤50mk at f/1.0 300K
|
|
Frame rate
|
50Hz
|
|
Spectral range
|
8~14um
|
|
Image Processing
|
|
Non-uniformity
correction
|
Self-adaption calibration
|
|
Time to image
|
<3s
|
|
Image enhancement
|
DDE
|
|
Image display resolution
|
640×480
|
|
Frame rate
|
50Hz(PAL)
|
|
Lens
|
Optional 7mm, 9mm,
12mm,19mm,35mm
|
|
Display Contro
|
|

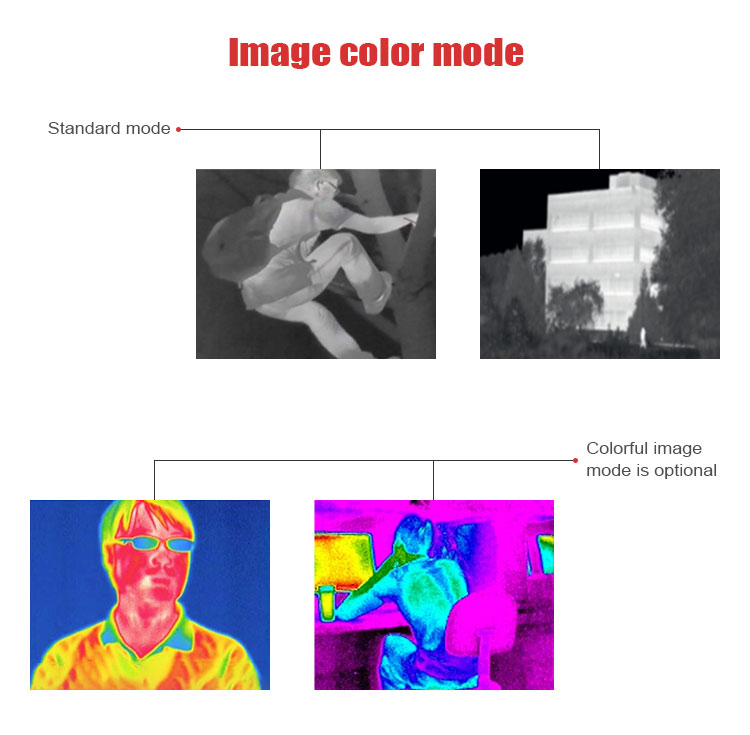

Modes
|
While hot/black hot/
(Optional colorful )
|
|
Image zoom
|
×2,×4 digital zoom
|
|
Brightness
|
Auto/manual
|
|
Contrast
|
Auto/manual
|
|
Image reversal
|
Horizontal/Vertical
|
|
Crosshair
|
One or more
|
|
Power
|
|
Operation
Voltage range
|
DC: +2.5V~+5.5V
|
|
Typical
|
DC:3.7V
|
|
Power consumption
|
<0.9W
|
|
Reverse protection
|
Yes
|
|
Over/under
voltage protection
|
Yes
|
|
Environment Parameters
|
|
Operation
temperature range
|
Commercial:-20ºC~+60ºC
|
|
|
Special purpose:-40ºC~+60ºC
|
|
Storage
temperature range
|
-45ºC~+65ºC
|
|
Humidity
|
5%~95% non-condensing
|
|
Anti-Vibration and shock
|
GJB 150-16 2.3.1
|
|
|
GJB 150-18 T7 100g/6ms
|
|
Temperature shock
|
-5ºC/min(-40ºC~+60ºC)
|
|
Physical Attributes
|
|

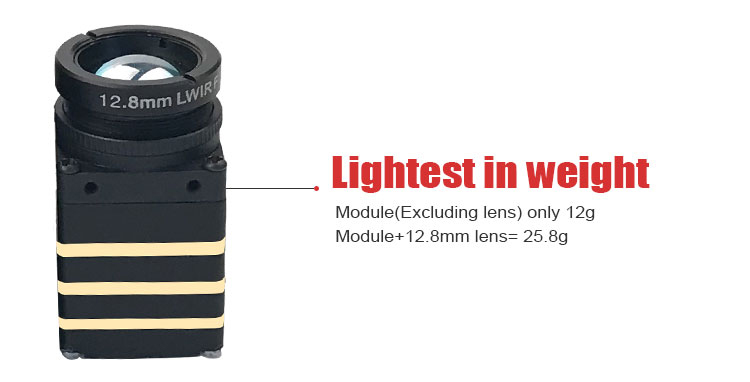

Weight(excludes lens)
|
12g
|
|
Module Size
|
20*20mm
|
|
External Power supply
|
Yes
|
|
Digital video output
|
14 Bit(50Hz)/ BT.656
(customized)
|
|
Communication
|
RS-232 or RS-485
|
