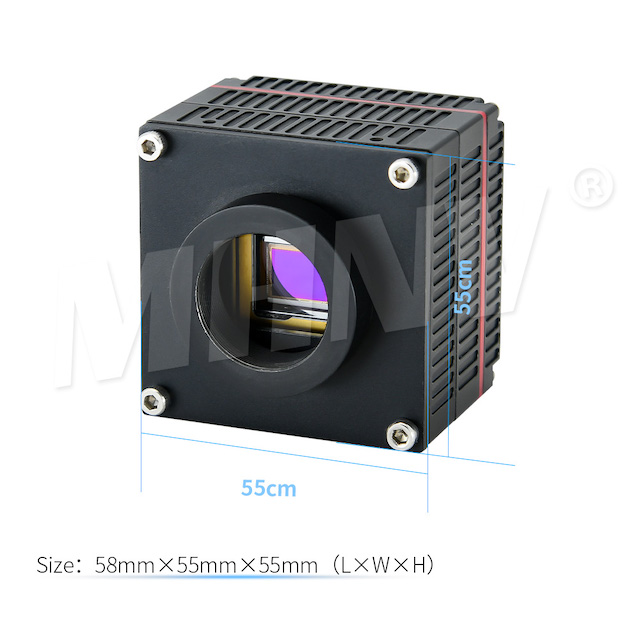

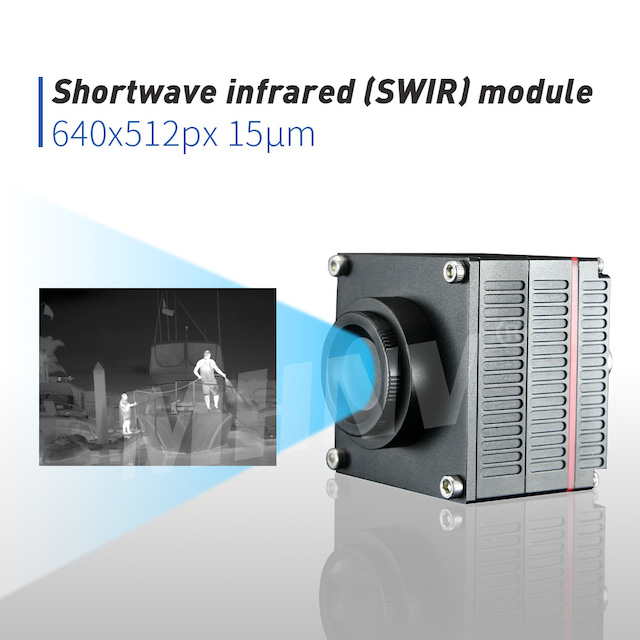

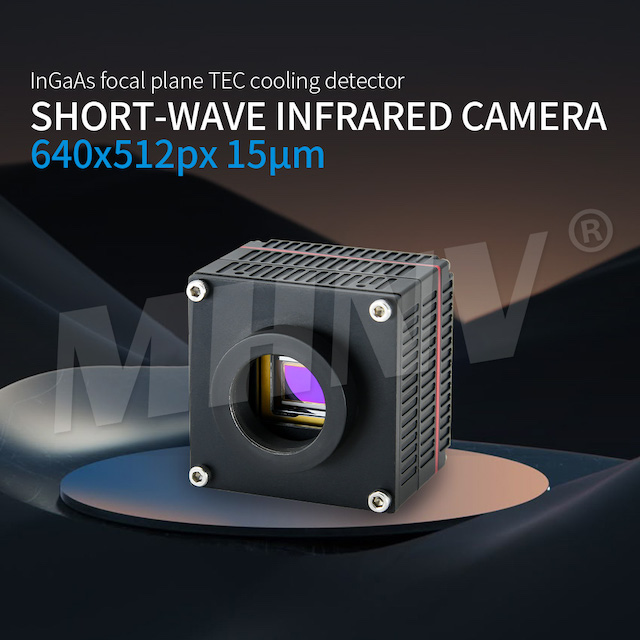

The MHNV Short-Wave infrared(SWIR) camera adopts InGaAs focal plane TEC cooling detector,resolution 640x512, pixel pitch 15μm, and 0.9μm~1.7μm response wave.It is equipped with two-stage TEC deep cooling function,effectively minimizing readout noise. The whole machine with the feature of integration and modularization.High sensitivity, small size, light weight, low power consumption, and rich interfaces, it is easy for customers to integrate and use.
MHNV MH-ST-M640 SWIR Camera Core Applications

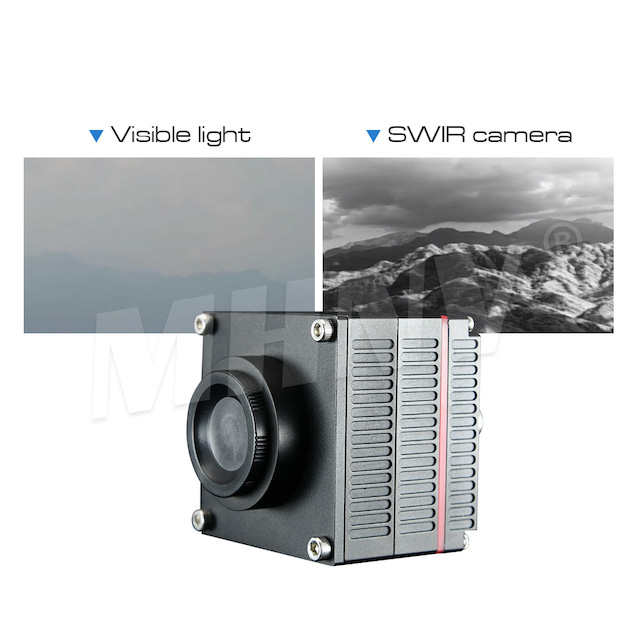

The MHNV SWIR cameras can be widely used in various fields such as border and maritime defense, laser detection, astronomical imaging, security monitoring, biomedical applications, industrial inspection,semiconductor testing, material screening,machine vision, and scientific research.
MHNV MH-ST-M640 SWIR Camera Core Advantages
◆ TEC two-stage deep cooling, combined with precise temperature control, achieving a cooling temperature difference of up to 40°C.
◆ Non-uniformity correction, blind pixel compensation, temporal domain filtering, spatial domain filtering, DDE (Dynamic Data Enhancement), and IDE (Image Data Enhancement).
◆ Compact size, low power consumption.
◆ High signal-to-noise ratio, low dark current, low noise.
Technical Specification of MHNV MH-ST-M640 SWIR Camera Core
Model Number
MHNV MH-ST-M640
Detector Performance
Resolution/Pixel Pitch
640×512.15μm
Spectral Range
09pm-1.7um
Material
InGaAs
Cooler Tvpe
TEC second stage
Function
Frame Rate
25Hz
External Trigger
RS422
Svnc
Internal/Extemalsync
Iintegration Time
Manually
E-Zoom
×2/x4
Stable Power Consumption
<5W@25°℃
Performance
Non-linearity
<1%
Optical Non-uniformity
<2%
Image Output Delay
I frame
Dynamic Range
263dB
Environmental Adaptability
Operating Temperature
-40C~+70°C
Storage Temperature
-45°C~+70C
Vibration
6.06g.random vibration, all axial
Shock
80g. 4ms, post peak sawtooth wave, 3 Axis 6 direction
