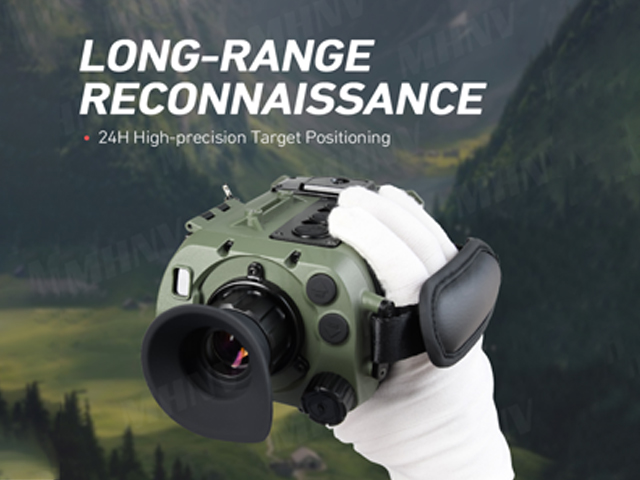

| Laser Rangefinder LRF40 combined with Long-Range Camera |
The LRF-40/80 is an intelligent and portable monocular laser rangefinder. It is equipped with multiple modules such as a low-light camera module, laser ranging module, digital electronic compass, GPS positioning module, display module, and central information processing unit. This combination provides a comprehensive set of features.
This device integrates several useful functions. It has high-precision single measurement, continuous measurement, multi-target relative measurement, and memory storage capabilities. These functions make it a versatile tool that can be used in various applications.
The LRF-40/80 can be utilized in different scenarios. It is suitable for day and night target detection and identification, accurate positioning, law enforcement recording, and providing decision-making support. Overall, it is a valuable device for many fields.
Module
|
LRF-40
|
LRF-80
|
Visible Light
|
Resolution
|
1920*1080
|
Target Surface Dimensions
|
1/2.8 in
|
FOV
|
8.5°*4.8°~0.35°*0.28°
|
Optical Magnification
|
3.3×~80×
|
Laser Rangefinding
|
Eye safety/Level
|
Class1/1M
|
Laser wavelength
|
1535±5nm
|

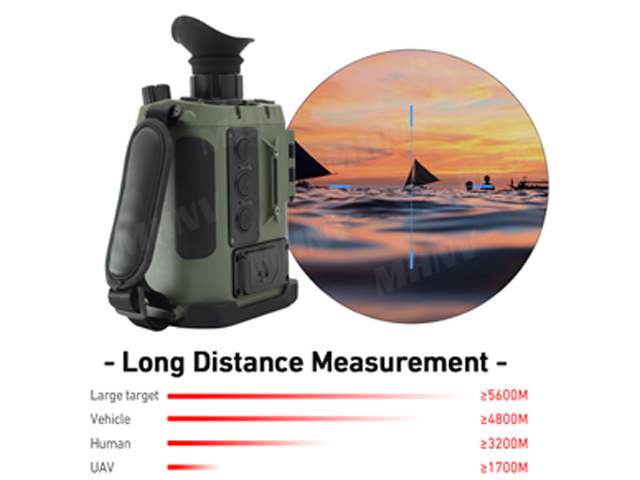

Max measuring range
|
Large target
|
≥5600
|
≥10000
|
Vehicle
|
≥4800
|
≥8000
|
Human
|
≥3200
|
≥4500
|
UAV
|
≥1700
|
≥2600
|
Min Measuring Range
|
50m
|
Measurement Frequency
|
1~10Hz
|
Distance Measurement Accuracy
|
±1m
|
Accuracy Rate
|
≥98%
|
False Alarm Rate
|
≤1%
|
Positioning Component
|
Positioning mode
|
BeiDou/ GPS/ GLONASS multi-mode
|
Coordinate system
|
GCS/ Gauss-Kruger/ UTM/ MGRS
|
Intelligent Automatic Correction of Magnetic Declination
|
Automatic identification of local magnetic declination (at the specified location), eliminating the need for manual correction.
|
Electronic Compass
|
Azimuth accuracy
|
0.5° (RMS)
|
Pitch angle accuracy
|
0.1°(RMS)
|
Display
|
OLED
|
0.55寸
|
OLED Resolution
|
1350*1080
|
Working Time
|
Continuous working time ≥ 7 hours
|
External Interfaces
|
DC/USB/PAL/RS232
|
