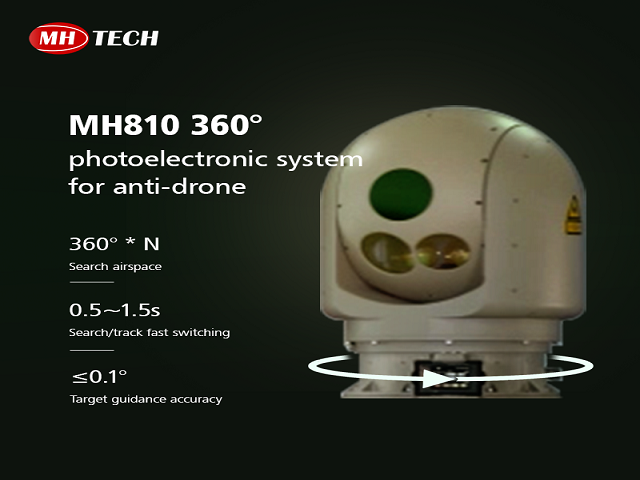

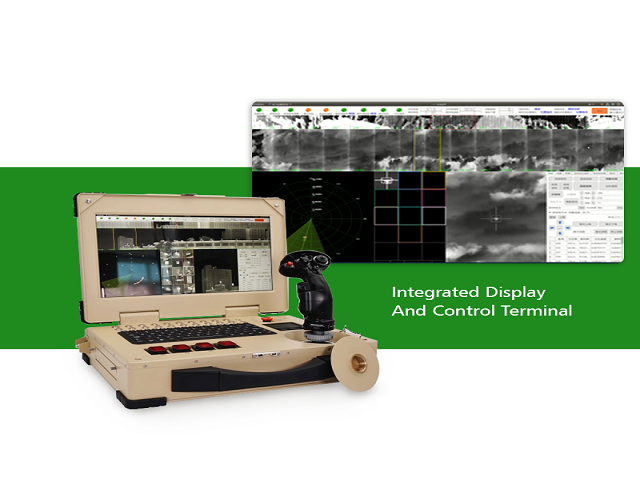

MH-810 infrared search and tracking device |
Engineer Manager Name: Jacky
Email: mh_elec@126.com or jacky@mh-elec.com
It can be applied to the search, observation (detection) and targeting of sea or air targets, and can provide data such as target slant distance, azimuth angle, pitch angle, etc. for fire control solution; in addition, it has a wide range of applications in civil and paramilitary fields, and can be used for forest fire prevention, sea search and rescue, etc.
Specification | |
Orientation | Target angle measurement accuracy.: ≤0.1 ° |
Distance measurement accuracy: ≤5m (@Single target tracking) | |
Search airspace | Directions:n×360° |
Tilt and turn:-10°~70° | |
Search Vertical Field of View | Large / small field of view: 7° / 3.5° |
Detection distance (@ small field of view) | To fixed-wing fighter (F16): ≥25km |
To helicopter gunships (Apache): ≥ 12km | |
Cruise missile (180mm diameter): ≥10km | |
To low and slow rotor UAV (DJI Genie 4): ≥3km | |
Target guidance accuracy | ≤ 0.1 ° |
Number of search targets | ≥20 batches |
Probability of discovery | Probability of discovery |
≥90% | |
Search Speed | >90rpm (@Large field of view) |
>45rpm (@Small field of view) | |
Search target track establishment time | <1.5s |
False alarm rate | < 1/4h |
Reaction time | <15s (@Elevation angle 0-30°) |
<30s (@0-70°Full range) | |
Preparation time | Combat preparation time: 12min |
Equipment deployment time: 2min | |
Thermal imaging camera cooling time: 8min (@ full temperature range) | |
Withdrawal time: not more than 2min | |
Tracking data rate | 100Hz |
Tracking accuracy | Systematic error Pitch/azimuth: ≤0.4mrad |
Random error Pitch/azimuth: ≤0.6mrad | |
Single target tracking range | Azimuth 360° |
Pitch -10°~+70° | |
Single target tracking field of view | 5.6°×7°/ 2.8°×3.5° |
System continuous working time | >12H |
Laser distance measurement | Maximum range: 20km |
Power consumption | <250W |
Rated power | |
Turret External Dimensions | <410mm×410mm×600mm |
Weight | Turret body (without cable) <60Kg |
