Overview

Sniper detection equipment is a kind of equipment with sniper search and detection, which can independently detect snipers, locate coordinates, store images, and conduct laser suppression jamming. It has the advantages of high image resolution, high detection accuracy, high measurement accuracy, and good jamming effect.

Product features

Small size, light weight, easy to carry by single soldier or install on vehicle;

It is wind-resistant, waterproof and high-temperature resistant, and can adapt to various weather and environment;

Rich functions and simple operation;

It can be equipped with sniper acoustic detection equipment to receive the coordinate information sent by it and quickly turn around and detect the target.

Functions

Automatic scanning detection;

Manually set the search scope;

Automatic alarm and manual precise aiming;

Eye safety laser ranging;

Laser interference and suppression;

Automatically detect the reflected light spot generated by the sight and mark it in the video image;

Simultaneous detection and marking of multiple targets;

Video image storage and playback;

For targets with a distance ≤ 50m, the interference laser irradiation is automatically shielded;

Simple operation and convenient disassembly;

Optional sniper acoustic detection equipment can receive the coordinate information sent by the sniper and quickly turn around and detect the target equipment.

Performance

1. Detection target: gun sight lens with caliber greater than 20mm;

2. Field: 1.1 ° × 0.8°~32° × 24 °, continuous zoom;

3. Waveband: visible light, near infrared;

4. Display: LCD;

5. Detection field of view: it can be adjusted manually or automatically with the observation field of view, and 360 ° can be achieved through turntable × 5°/360° × 2 ° detection;

6. Detection wavelength: invisible near-infrared light;

7. Sniper detection range:

Near distance: ＜ 100m

Longest distance: daytime: ≥ 1200m (in good weather); ≥ 500m at night.

7. Angle accuracy: ≤ 0.3 °

8. Ranging capacity:

a) Distance: 50m~3000m

b) Accuracy: ≤± 5m

c) Accurate side ratio: ≥ 95%

d) Repetition frequency: 0.5HZ

9. Detection probability: ≥ 90%;

10. False alarm rate: ≤ 10%;

11. Operating mode:

(1) Portable mode: tripod, external display and control terminal;

(2) On-board mode: top-mounted, externally connected with display and control terminal, and externally connected with one channel of video signal.

12. Continuous working time:

(1) Battery: observation time: ≥ 5h; Laser detection time: ≥ 2h;

(2) MTBF ≥ 1000 hours

14. Interference laser power density:

15. Interference spot diameter: ≥ 50cm (50m~1000m)

16. Alarm mode: flashing light, sound and display;

17. Observation video during laser detection can be stored, played back and output circularly;

18. Power supply: AC220V;

19. Working temperature: - 20 ℃~55 ℃

20. Interference laser wavelength: 520-535 (green light)

21. Volume: ≤ 30cm (width) × 40cm (deep) × 30cm (height) (main machine)

22. Weight: ≤ 35kg (main engine)

23. Acoustic sniper detection equipment is optional to quickly turn and scan the target according to the azimuth information provided by the acoustic detection equipment.

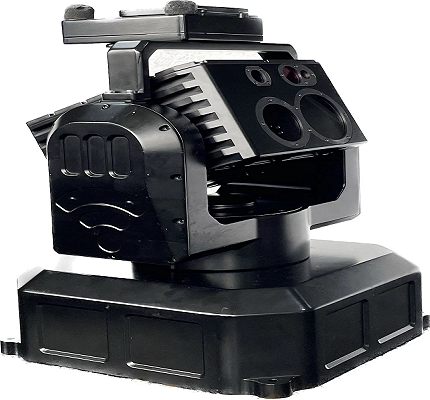

Equipment appearance
