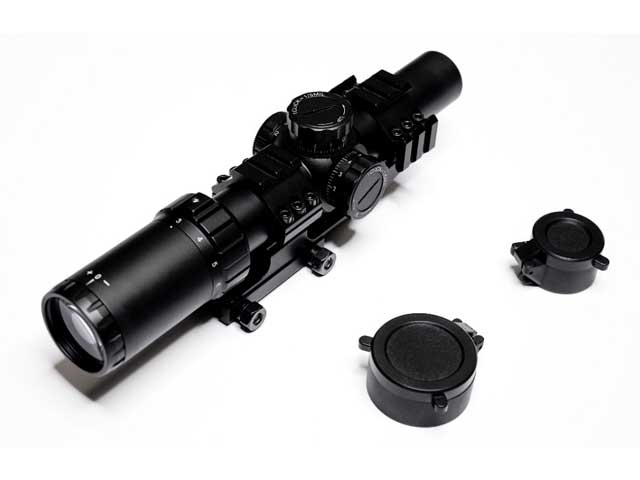

Riflescope 1-6X Sight

Engineer Manager Name: Jacky

WhatsApp/ Wechat: 0086-18792456795

Email: mh_elec@126.com or jacky@mh-elec.com


Military Riflescope


The Rifle 1-6X Sight ismainly used for aiming and shooting within 500 meters and observation of the battlefield. All optical components of the product are coated with anti-reflection coating, which greatly improves the transmittance of the system. The product is anti-vibration, filled with nitrogen, waterproof, shock resistance and anti-fog, with adjustable visibility, red dot illumination, integrated tube.


Product Features

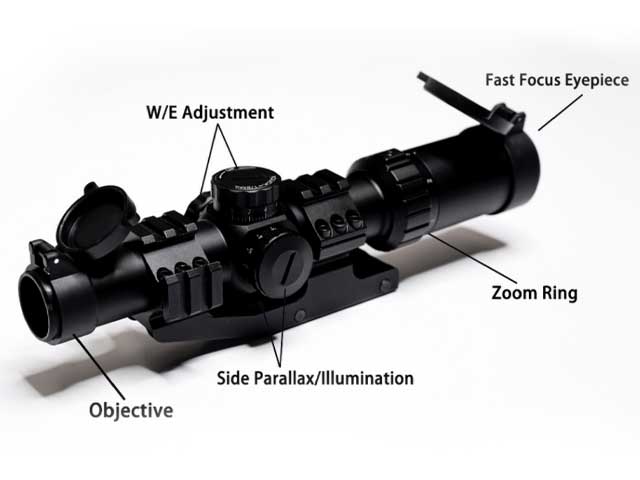

  • The product adopts "quick focus" technology to quickly identify the target and reticle.

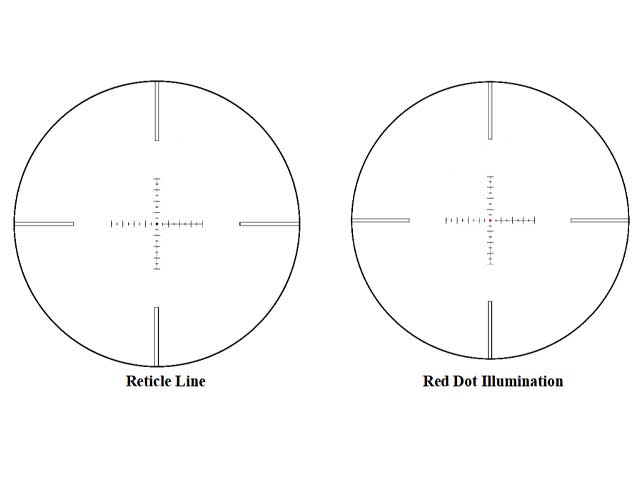

  • Red dot illumination, at the center of the reticle, the red dot has 1-11 grades of lighting.
  • The reticle pattern is clear, which can be used for probabilistic ranging and battlefield observation.
  • All optical components of the product are coated with anti-reflection coating, which greatly improves the transmittance of the system.
  • The eyepiece and objective lens have a flip-up lens cover, which is convenient to protect the lens surface.
  • Shock resistance can reach 1000G.



Product Name

Rifle 1-6X Sight

Product Model

MH-BM16

Base

Picatinny Rail

Magnification

1-6X

Objective lens diameter

30mm

Eyepiece diameter

42mm

Exit pupil distance

6.4-13mm

Field of view

3.8-13

Shock resistance

1000G

Weight(Includes protective cover)

450g

Length

265mm

Sight tube diameter

30mm

Adjustment value at 100yds

1/4 MOA

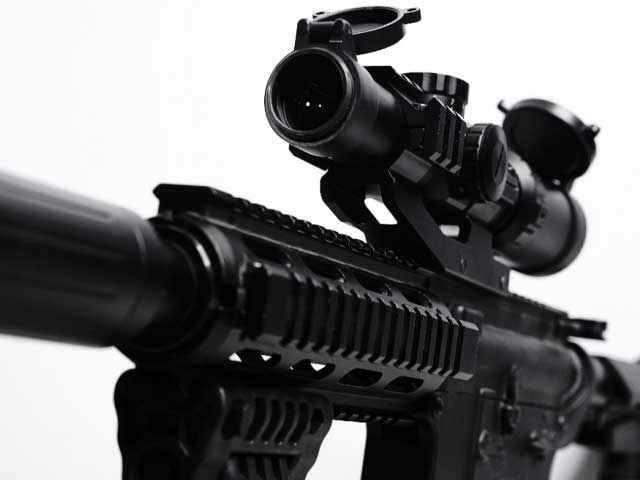

Military Riflescope

Military Riflescope

Military Riflescope
