The Sniper Rifle 5-25X Sight ismainly used for aiming and shooting within 1000 meters and observation of the battlefield. All optical components of the product are coated with anti-reflection coating, which greatly improves the transmittance of the system. The product is anti-vibration, filled with nitrogen, waterproof and anti-fog, with adjustable visibility,reticle illumination, integrated tube.
Product Features
-
The product adopts "quick focus" technology to quickly identify the target and reticle.
-

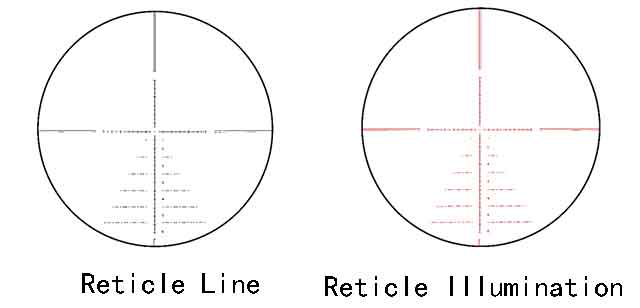

Fully reticle lines illumination, the reticle has 1-6 grades of lighting, and the 6 grades are switched on and off respectively, no need for cycle switches.
-
The reticle pattern is clear and the digital marking is accurate, which can be used for probabilistic ranging and battlefield observation.
-
All optical components of the product are coated with anti-reflection coating, which greatly improves the transmittance of the system.
-
The objective lens is equipped with a honeycomb lens cover to ensure that it is not easily exposed in complex environments.
Specification
|
Product Name
|
Sniper Rifle 5-25X Sight
|
|
Product Model
|
SL-BM525
|
|
Base
|
Picatinny Rail
|
|
Magnification
|
5-25X
|
|
Objective lens diameter
|
55mm
|
|
Eyepiece diameter
|
35mm
|
|
Exit pupil distance
|
5.4-13mm
|
|
Adjustment range
|
±30′
|
|
Weight
|
730g
|
|
Length
|
380mm
|
|
Sight tube diameter
|
1.25”
|
|
Debug 1Click distance movement at 100 meters
|
6.25mm
|

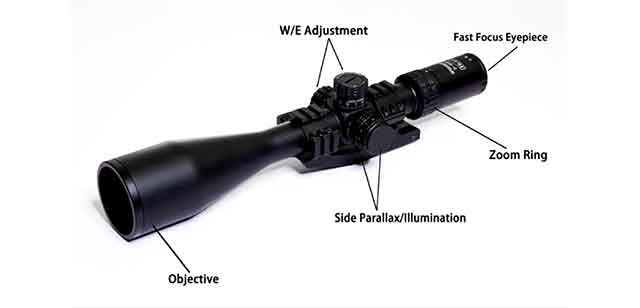

Scope Construction

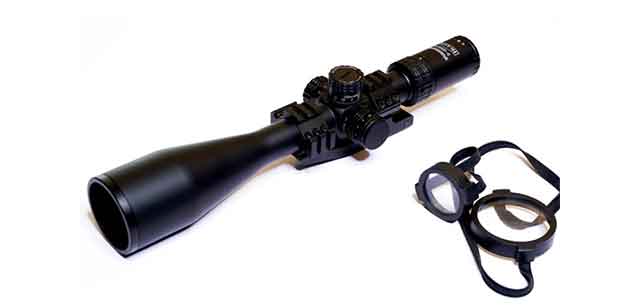

Detailed Pictures
