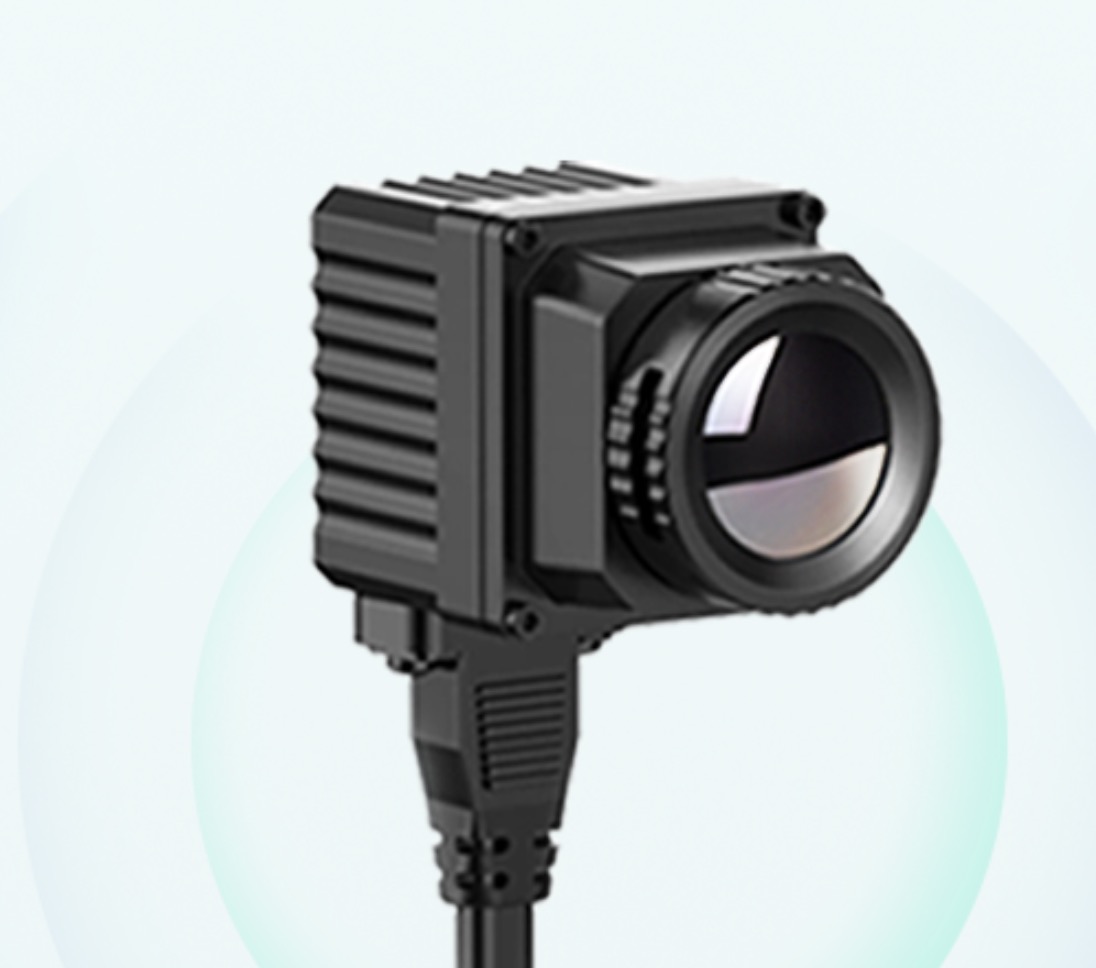

| MH-N Thermal Imaging Night Vision Car System |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com

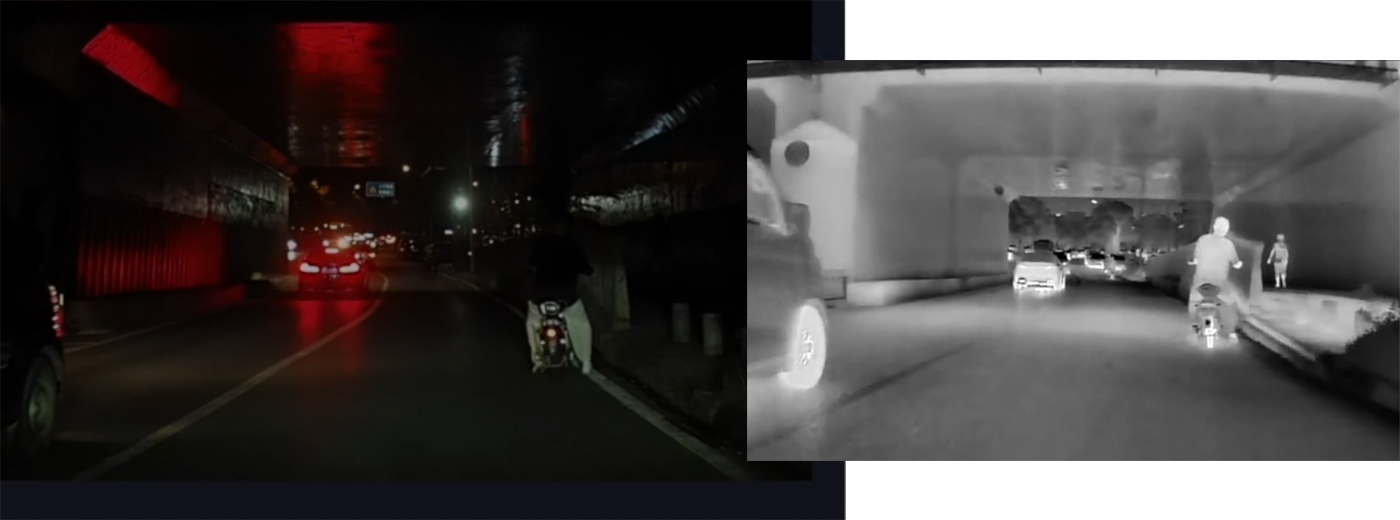

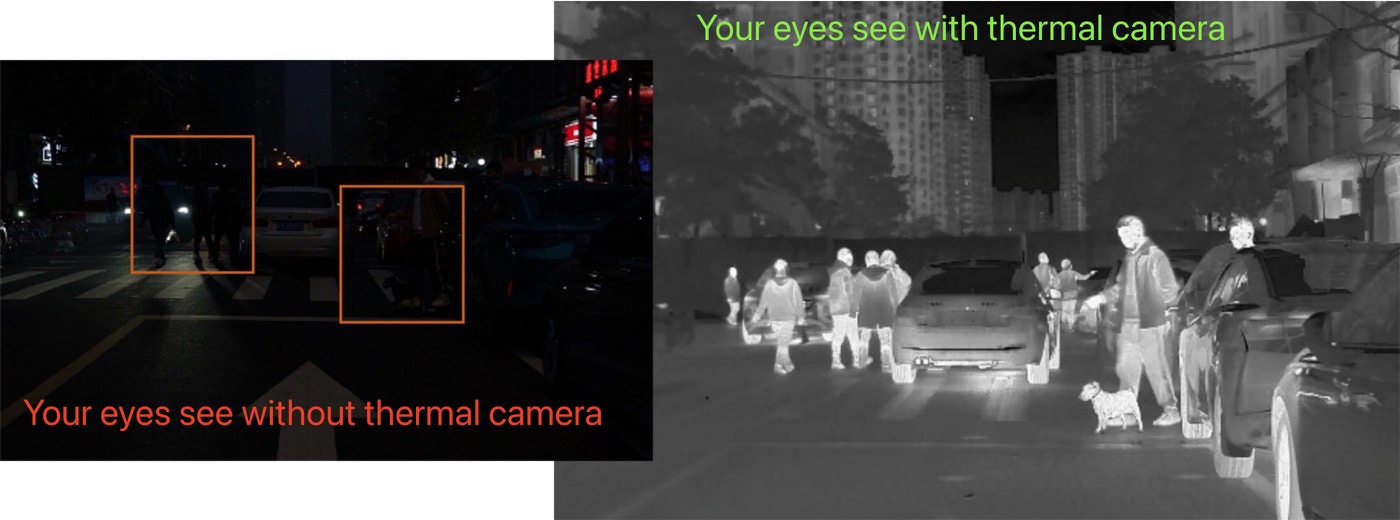

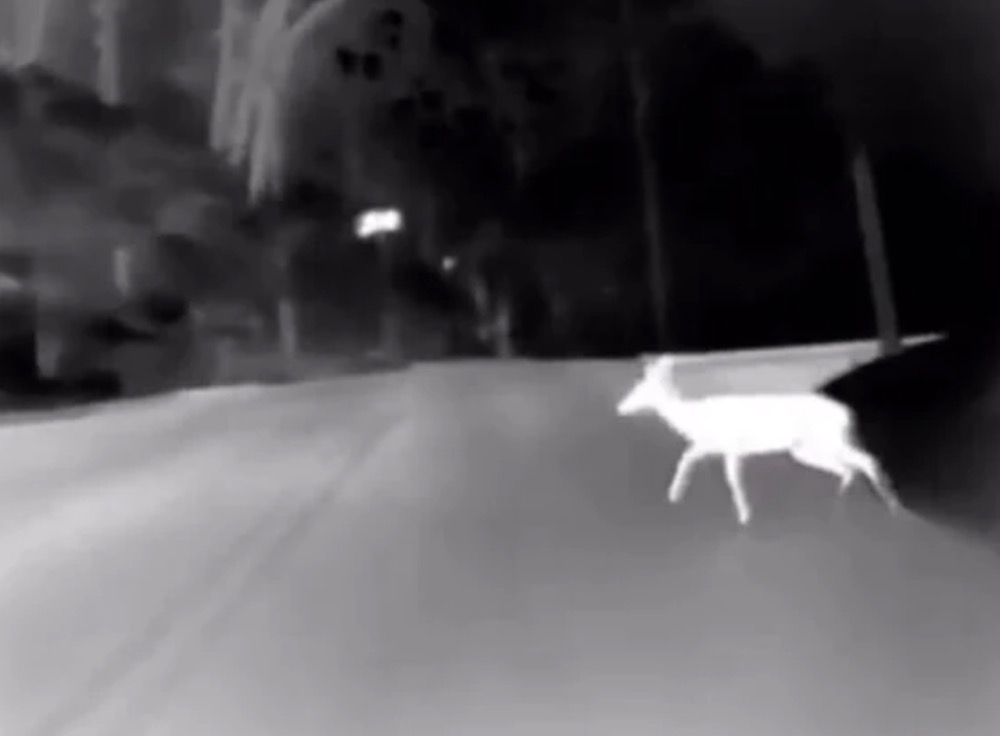

1.Infrared thermal imaging display
2. Brief introduction
The MH-N thermal image camera easily integrates with existing automotive infotainment systems, making it easier than ever to add high-resolution thermal imaging to your vehicle at low price point.The goal of thermal imaging is simple: to give drivers information about their surroundings and help them react to potential hazards,Risky driving factors such as darkness, rain, fog, snow, and glare become far less dangerous when a driver has access to real-time thermal data. These benefits will also be key in increasing safety in autonomous vehicles. Due to high cost though, this technology has only been available in a select number of high-end automobiles. It is our mission to provide life-saving technology that is available to everyone."
3. Main Parameter
|
Specification
|
|
Sensor
|
|
Type
|
Uncooled Vox
|
|
Resolution
|
384 x 288
|
|
Pixel
|
17um
|
|
Spectral band
|
8um~14um
|
|
Analog video
|
CVBS
CVBS
|
PAL
NTSC
|
768x576
720x480
|
25Hz
30Hz
|
|
Image Algorithm
|
Automatic brightness contrast, image increase
|
|
Power
|
|
Video connect
|
CVBS
|
|
Power input
|
DC9V—DC32V, typical 24V
|
|
Power adapter
|
≤3.5W（@24V power，don’t start window heating）
≤9W（@24V power，start window heating）
|
|
Environment
|
|
Work Temp.
|
-40℃～+85℃
|
|
Storage Temp.
|
-45℃～+90℃
|
|

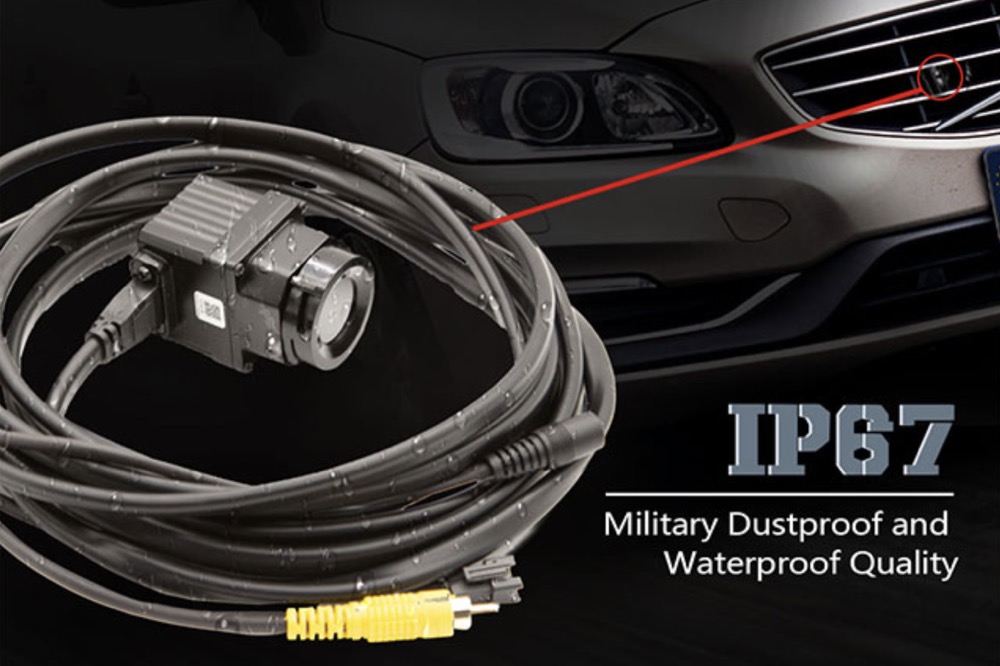

Protection
|
IP67
|
Lens system
|
|
Lens focus
|
9.7mm/F1.0
|
|
FOV
|
37.0°x 28.0°
|
|
Physical properties
|
|
Size
|
40*36*58mm（excludes connector）
|
|
Weight
|
150g±3g（excludes cable）
|
|
System
|
|
Start time
|
≤8S（Normal temp.）
|
|
Shutter control
|
Auto
|
|
Heating
|
When the window temperature is lower than 2℃±2℃, it will automatically start the intelligent heating. When the window temperature is higher than 7℃±2℃, it will automatically turn off the heating function
|
|

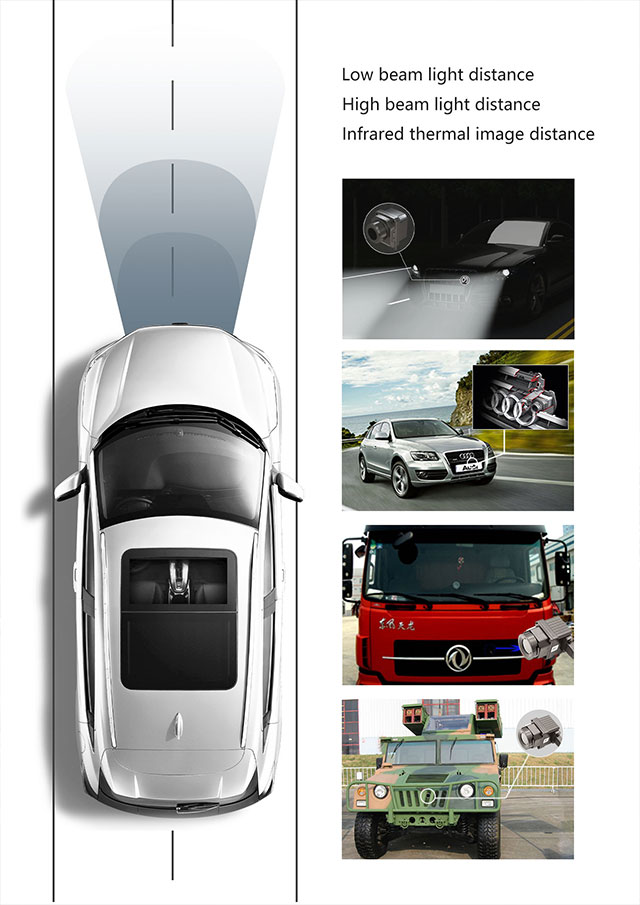

Detection range
|
|
Detection range
|
Human（1.8m*0.5m） ≥150m
Vehicle（2.3m*2.3m） ≥300m
|
|
