| OS16 single-soldier rocket simple fire control |
(1) Simple fire control

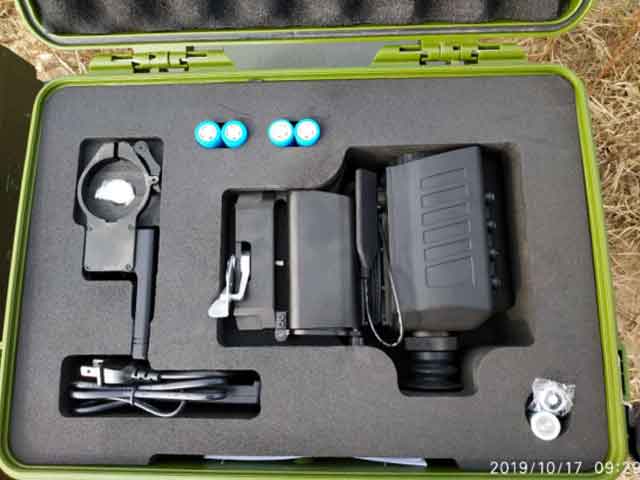

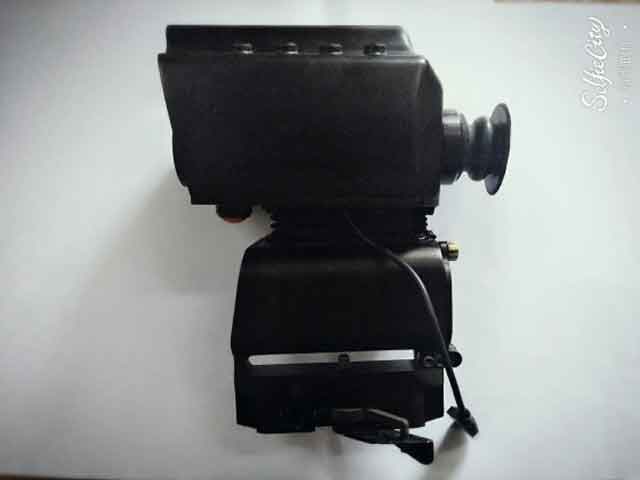

The OS16 type individual rocket simple fire control, which is equipped with the 69-1 type 40mm rocket launcher, provides precise aiming. Its main function is to search and find the target, measure the distance of the target, automatically install the incident meter, display it in the form of electronic division, and automatically transmit the distance information to the setter to complete the precise strike on the target.
Main Technical Index
|
OpticalPerformance
|
|
Recognition distance
|
Under the condition of atmospheric visibility 10Km, the recognition distance to people is ≥1000m, and the recognition distance to vehicles is ≥1500m
|
|
Exit pupil diameter
|
5mm
|
|
Exit pupil distance
|
20mm
|
|
Visual degree
|
-3SD～+3SD
|
|
Differentiation regulation
|
按键调节
|
|
Calibration target range
|
≥±6mil
|
|
Automatic meter loading range
|
100m～1000m
|
|
Zero position accuracy (including repeated setting)
|
≤1mil
|
|
Automatic meter loading accuracy
|
≤1mil
|
|
Range Performance
|
|
Minimum measuring range
|
Under the condition of recognizing target characteristics: for 2.3m × 2.3m military green target: ≤ 50m
|
|
Maximum measuring range
|
Under the condition of atmospheric visibility 10km, for 2.3m × 2.3m military green target: ≥ 1500m
|
|
Ranging accuracy
|
±5m
|
|
Laser divergence angle
|
≤2.5mrad
|
|
Ranging frequency
|
10 times / min, once / s in case of emergency
|
|
Continuous working time
|
≥1min
|
|
PhysicalProperty
|
|
Weight (without battery)
|
≤2kg
|
|
Interface type
|
Standard interface of type 69-1 40mm Rocket Launcher
|
|
power supply
|
18650（2 pcs）
|
|
Continuous working time
|
≥ 6h (normal temperature)
|
|
Adapting Weapons And Ammunition
|
|
Adaptation weapon
|
Type 69-1 40mm Rocket Launcher
|
|
Bullet type
|
40mm air blast kill rocket
|
(2) BKE2 40mm air blast kill rocket setter
BKE2 40mm air blast kill rocket setter and wireless module set the time for the time fuze of BKE2 40mm air blast kill rocket system, receive the distance signal from the fire control range finder through wireless communication, calculate the corresponding time, and send it to the time fuze through wireless communication after the ammunition is launched, so as to provide input information for the delay initiation of the time fuze.
Main TechnicalIndex
|
Setting method
|
Manual setting and automatic setting
|
|
Installation requirements
|
Manual distance setting interval
|
2m
|
|
Distance of meter installation of the setter
|
Manual mode: 0m～1999m
|
|
Automatic mode:0m～2000m
|
|
Effective communication distance with Fuze
|
＜30m
|
|
Installation reliability
|
≥ 99% (static test)
|
|
weight
|
≤200g
|
|
Power Supply
|
CR123A battery (1 Pc)
|
