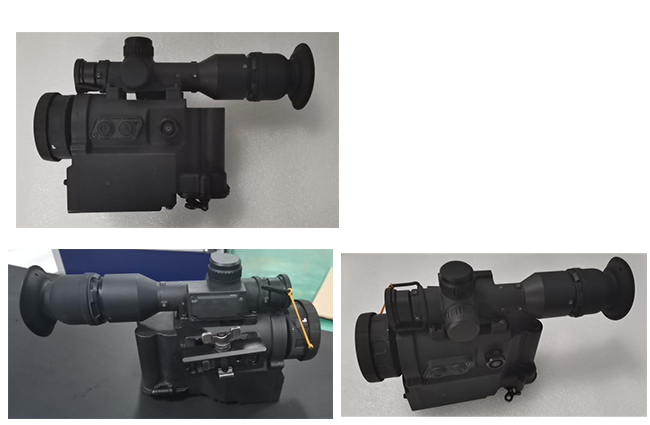

The light recoilless weapon sighting device is mainly equipped with an 82mm recoilless gun for observation, aiming, and ranging of armored vehicles within 2000 meters in the daytime and 1500 meters at night. The sight is equipped with functional modules such as laser ranging module, gyroscope, temperature & altitude sensor, and uses ballistic calculation algorithm to quickly and accurately aim at stationary and moving targets, effectively improving the hit rate of artillery shooting.

Daytime viewing ability

⑴ Magnification: ≥3×;

⑵ Field of view: ≥13° (when the magnification is 3 times);

⑶ Diameter of exit pupil: ≥5mm;

⑷ Exit pupil distance: ≥25mm;

⑸ Visual degree range: -5～+5SD;

⑹ Range of action: Recognize the side of armored vehicles> 2000 meters (visibility of 3000 meters).

Night sighting ability

⑴ Field of view: ≥12°(high and low)×9°(horizontal);

⑵ Action distance:

Recognize the side of armoredvehicles> 1500 meters (clear starry sky, visibility of 3000 meters, temperature difference between target and background ≥ 5K);

⑶ Imaging distance: 30 meters～﹢∞;

⑷ Parfocality: when the working temperature changes within the range of -40℃～+50℃, the image will remain clear;

⑸ Relative image tilt: ≤15′;

Laser ranging index

⑴Distance measuring range : 50 meters to 2000 meters;

⑵Wavelength: Use a wavelength that is safe for the human eye.

⑶Ranging accuracy:≤2m;

⑷Accurate measurement rate:≥98%;

⑸Repetition frequency:≥1Hz.

⑹Distance resolution:≤30m;

⑺Angular resolution:≤1.5mil;

Continuous working time: The continuous working time is not less than 8 hours.

Weight:≤2kg (including battery, lens cover, eye mask).
