40 Bazooka Series Sight

Bazooka is a kind of infantry anti-tank, assault weapon. It has the characteristics of light weight, short range, low price, and suitable for a large number of equipment. Today, when the performance of anti-tank missiles is outstanding, the rocket launchers are still equipped with a large number of grassroots infantry units, becoming short-range armor-breaking weapons for infantry, and can even be used as short-range support artillery.

Based on the 69-type 40mm anti-tank rocket launcher as an adaptable platform, our company has developed and produced a variety of white light, infrared and night vision scopes, making this model of rocket launcher have a more comprehensive combat environment and superior strike capabilities.

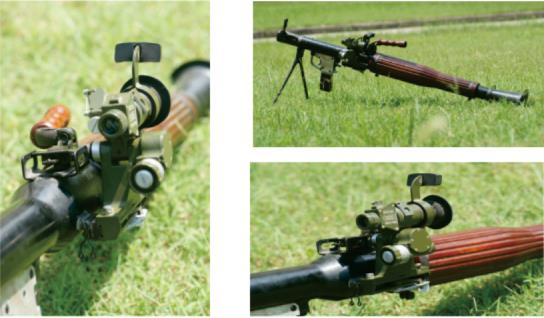

1 RS3A RS3B universal scope

RS3A, RS3B universal sights use internal and external settings to set the launch angle. It is equipped with Type 69 and Type 69-1 40mm rocket launchers. It is used to launch 40 armor-piercing shells, type I armor-piercing shells, type II, type III armor-piercing shells (heavy) and 84-80 armor-piercing shells (reduced wind deflection), and direct aiming is achieved by dividing into the mirror. It can also achieve direct or indirect aiming through the use of internal divisions and external scales, and can also launch high-explosive warheads and flares. In addition, the scope is also equipped with an illuminating device to illuminate the internal divisions and external scales of the scope to meet night use.


RS3A RS3B universal scope

Main TechnicalIndex

Optical System

Magnification

3x

Field of view

11°

Exit pupil diameter

4mm

Exit pupil distance

23.6mm

Mechanical System

The range of the launch angle set by the reticle in the mirror

100m-500m

Launch angle range set by external scale

-1-00~+6-00

Accuracy

Other range

±0-03

Empty back is less than

±0-01

Elevation blister

15’

Weight

Standard mirror weight

520g

Total weight

1200g

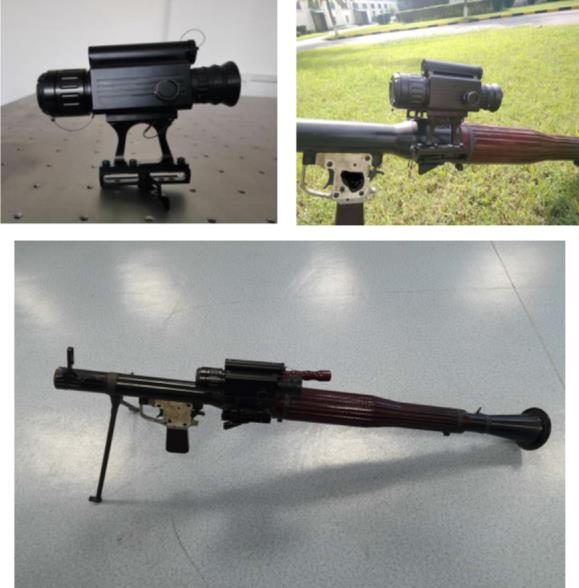

2. 40mm bazooka infrared sight


The 40mm rocket launcher infrared sight is equipped with the PF69 type 40mm rocket weapon system, which is mainly used to destroy enemy vehicles, light armor, field fortifications, ground buildings, military equipment and other targets at night. The infrared sight can be realized by electronic division. One mirror has multiple bombs, and it can be used as an observation mirror at night.

40mm bazooka infrared sight


Main TechnicalIndex

Field of view

10°×8°

Exit pupil distance

22mm

Visual degree

-4D~+2D

Division adjustment range

≥15mil

Gradation adjustment accuracy

≤0.25mil

Zero accuracy

≤0.8mil

Gradation brightness

Adjustable

Power supply

18650 battery (1 Pc)

Continuous working time (full temperature zone)

≥2h

Boot stabilization time

≤15sec

Weight (including battery)

≤565g

Detector type

Uncooled infrared detector, pixel pitch 17um

Image correction method

Manual occlusion correction at 30min intervals after power-on is stable

Range of action

Atmospheric visibility is not less than 10km, humidity is not more than 65%, and the difference between the target and the environment background is not less than 6ºC:

The discovery distance of typical targets (2.3m×2.3m) is≥1000m, and the recognition distance is 600m

For standing people, the discovery distance is≥600m, and the recognition distance is≥400m

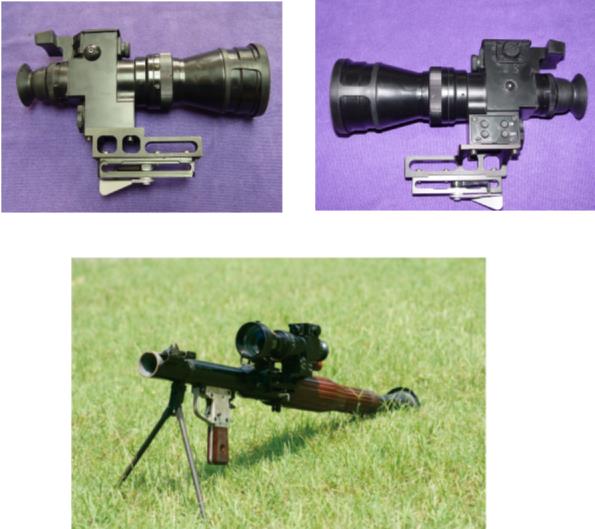

3.ON4 type low light scope

The ON4 low-light scope is a high-performance scope specially designed to be equipped with individual rocket launchers. The scope uses the domestic super second-generation image intensifier, and optimizes the design of the matching objective lens system and bright division projection system, which can achieve the goal of living targets within 300 meters and light armored targets within 600 meters. Observe the aiming, and use the internal division of the mirror to set the firing angle of the launch tube.

ON4 type low light scope


Main TechnicalIndex

magnification

4x

Field of view

10°

Exit pupil diameter

5mm

Exit pupil distance

20mm

Parallax

≤2′

Viewing range

(-5~+2)D

Focus range

20m~∞

Like tilt

≤60′

Dividing adjustment range

Height ±12mil, direction ±12mil

Zero move

≤0.7mil

Continuous working time

≥30h

weight

1.9kg

Suitable for a variety of individual weapons

PF89-1 type 80mm individual anti-tank rocket

PF89A type 80mm single soldier multi-purpose rocket

WPF89-1 type 80mm temperature and pressure rocket for individual soldiers

Observation distance

Under the conditions of moonless starry sky, medium contrast, opaque background, and zenith illumination lower than 1X10-2lx, it can identify people standing within 300 meters or light armored targets within 600 meters.

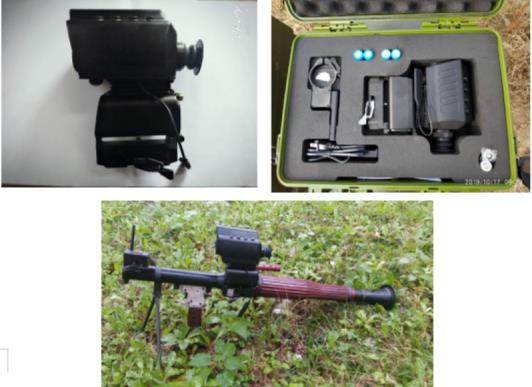

4.OS16 single-soldier rocket simple fire control

(1) Simple fire control

The OS16 type individual rocket simple fire control, which is equipped with the 69-1 type 40mm rocket launcher, provides precise aiming. Its main function is to search and find the target, measure the distance of the target, automatically install the incident meter, display it in the form of electronic division, and automatically transmit the distance information to the setter to complete the precise strike on the target.


Main TechnicalIndex


Main Technical Index

OpticalPerformance

Recognition distance

Under the condition of atmospheric visibility 10Km, the recognition distance to people is ≥1000m, and the recognition distance to vehicles is ≥1500m

Exit pupil diameter

5mm

Exit pupil distance

20mm

Visual degree

-3SD~+3SD

Differentiation regulation

按键调节

Calibration target range

≥±6mil

Automatic meter loading range

100m~1000m

Zero position accuracy (including repeated setting)

≤1mil

Automatic meter loading accuracy

≤1mil

Range Performance

Minimum measuring range

Under the condition of recognizing target characteristics: for 2.3m × 2.3m military green target: ≤ 50m

Maximum measuring range

Under the condition of atmospheric visibility 10km, for 2.3m × 2.3m military green target: ≥ 1500m

Ranging accuracy

±5m

Laser divergence angle

≤2.5mrad

Ranging frequency

10 times / min, once / s in case of emergency

Continuous working time

≥1min

PhysicalProperty

Weight (without battery)

≤2kg

Interface type

Standard interface of type 69-1 40mm Rocket Launcher

power supply

18650(2 pcs)

Continuous working time

≥ 6h (normal temperature)

Adapting Weapons And Ammunition

Adaptation weapon

Type 69-1 40mm Rocket Launcher

Bullettype

40mm air blast kill rocket

(2) BKE2 40mm air blast kill rocket setter

BKE2 40mm air blast kill rocket setter and wireless module set the time for the time fuze of BKE2 40mm air blast kill rocket system, receive the distance signal from the fire control range finder through wireless communication, calculate the corresponding time, and send it to the time fuze through wireless communication after the ammunition is launched, so as to provide input information for the delay initiation of the time fuze.

Main TechnicalIndex

Setting method

Manual setting and automatic setting

Installation requirements

Manual distance setting interval

2m

Distance of meter installation of the setter

Manual mode: 0m~1999m

Automatic mode:0m~2000m

Effective communication distance with Fuze

<30m

Installation reliability

≥ 99% (static test)

weight

≤200g

Power Supply

CR123A battery (1 Pc)
