Fiber optic ranging module

1. Product description
JIR-603x series fiber laser ranging module uses rare earth-doped glass fiber as the gain
medium to output eye-safe laser, which is small in size, light in weight, high in reliability
and easy for system integration. Mainly used in photoelectric reconnaissance, photoelectric
fire control, photoelectric monitoring, photoelectric measurement and other fields.
2. Performance and characteristics
Eye-safe laser.
Small size and light weight.
Fast heat dissipation and low loss.
Strong environmental adaptability.
3. Technical index

RFS-6030A RFS-6030B RFS-6031 RFS-6032
Wavelength 1550±20nm


Minimum range 50m
Maximum range
≥15km
(Ship: 20×70m)
≥3km
(UAV: 0.3×0.3
m)
≥8km
(Vehicle: 2.3×2.3
m)
≥6km
(Vehicle: 2.3×2.3
m)

Divergence angle 0.6mrad 0.3±0.1mrad
0.3±0.1mrad 0.3±0.1mrad
Repeat frequency 1Hz 5Hz 1Hz 1Hz
Ranging accuracy ±3m ±2m ±2m ±2m
Accurate rate ≥98%
Ranging logic With the first and last target output function
Size(L×W×H) 95×51×64mm
95×51×64mm 91×49×45mm 91×53×42mm
Weight ≤200g ≤200g ≤160g ≤150g
Operating temper ature -40℃~+60℃
Storage temperat ure
-50℃~+70℃

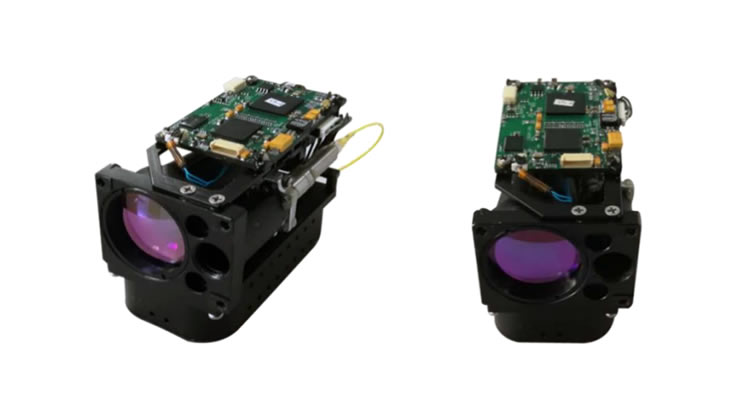

4. Appearance



RFS-6030
