With LRF MH-RS Series Thermal Weapon Sight |
![]() |
Please click or email to
mh_elec@126.comorjacky@mh-elec.com

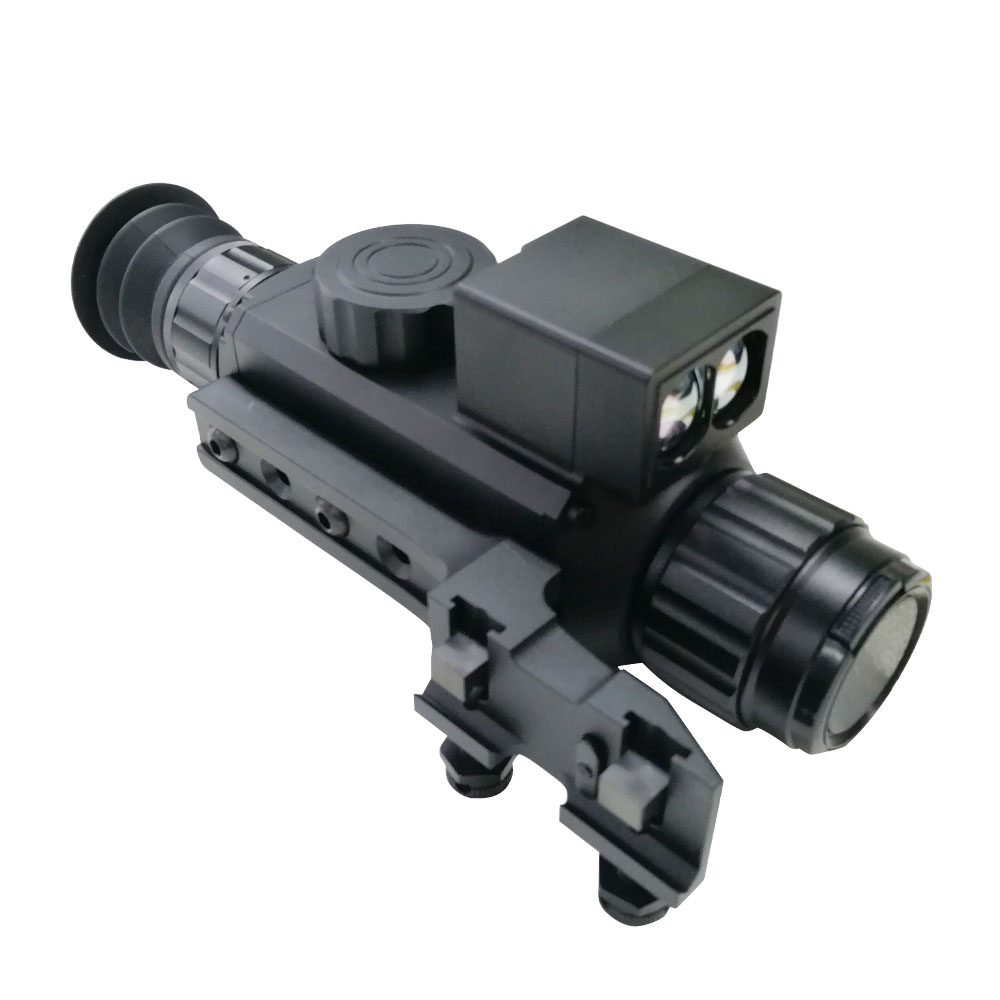

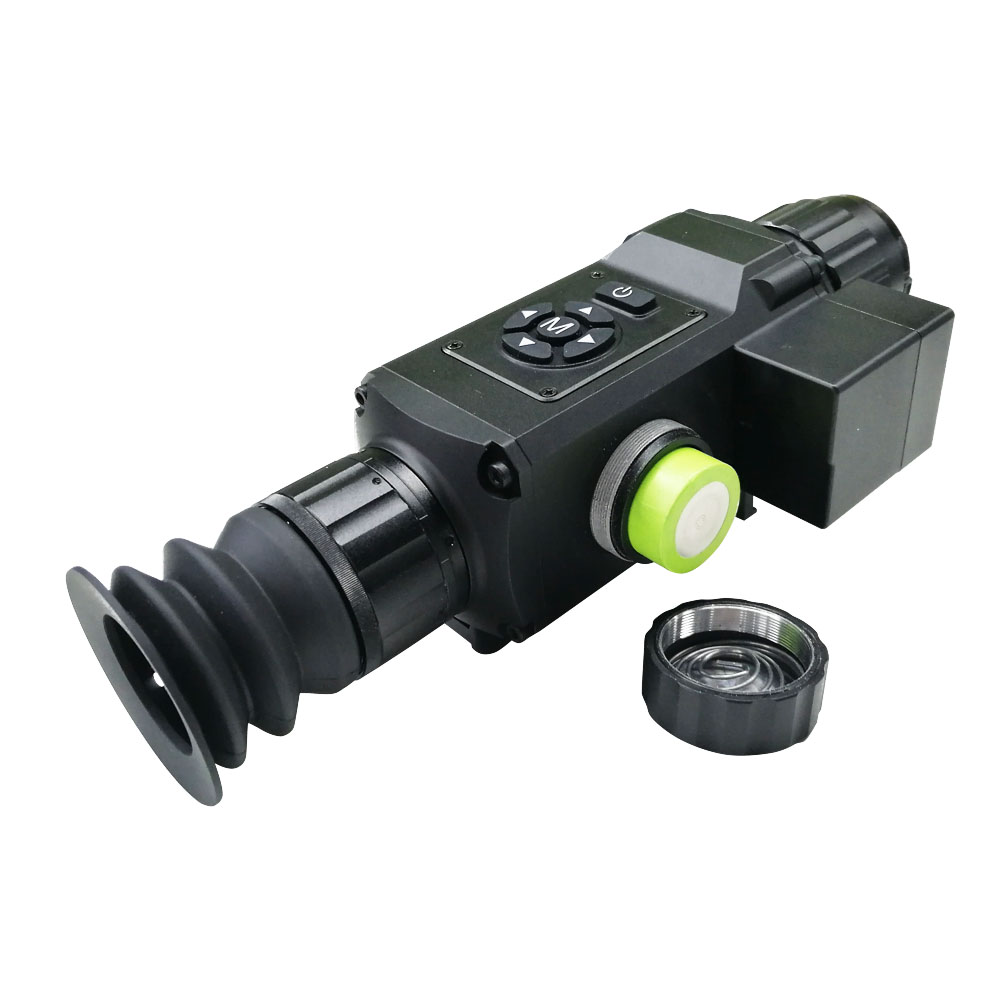

MH-RS335L is a compact and lightweight multi-functional thermal weapon sight. With advanced infrared thermal imaging technology, high sensitivity, high frame rate and high stability. Take advantage of a 384*288px@17um uncooled thermal detector, 50Hz frame-rate, 600m laser range finder, 4x digital electronic zoom and a MIL standard digital OLED micro display for enhanced target recognition, and provide smoothly and clearly imagery, let you to confidently and clearly see the location of the prey in darkness and hard environment.
* High thermal resolution, high resolution OLED color display and high refresh rate.Offers clear, crisp imagery through smoke, dust and complete darkness.

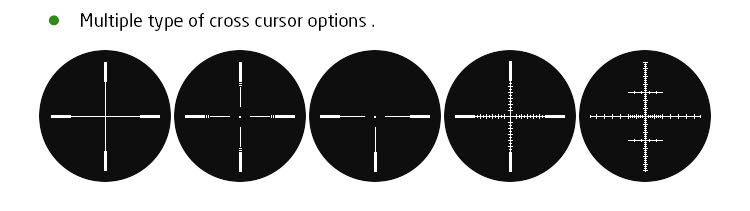

* Multiple type of cross cursor options and multiple color of cursor options
* Multiple function: Thermal image/ Hot tracking/ Electronic Compass/ Picture in picture(PIP)/ Rangefinder
* Multiple language for your choose.
*Fully waterproof IP67, MH RS thermal scopes can be operated in precipitation of any intensity. Such as heavy shower or snowfall.
*With 600m laser range finder, accuracy is less than ±1m
Type | MH-RS335 |
Detector | 384×288,17μm |
Type | Uncooled FPA, Shutter less |
Spectral Range | 8~14μm |
Focus Length | 35mm(50mm,75mm Optional) |
F# | F1.0 |
FOV | 10.6°×8.0° |
Frame Frequency | 50Hz |
OLED | 0.5 inch, 1024×768 |
Digital Zoom | 1×, 2×, 4× |
Palette | White-hot, Black-hot, Red-hot, Iron-hot, Sky |
Recognition Range | |
1.8m×0.5m Human | 500m |
2.3m×2.3m Nato Target | 800m |
Detection Range | |
1.8m×0.5m Human | 1000m |
2.3m×2.3m Nato Target | 1300m |
Mechanical | |
Shock | 500G |
Chassis | Picatinny Chassis |
Power | 26650×1Pcs, 3.7V, Rechargeable Li-battery |
Working Time | ≥8h |
Environment | |
Working Temperature | -40℃~60℃ |
Encapsulation | IP67 |
Weight | 650~1300g |
Size | ≤250mm×80mm×52mm |
