| 640*480 NETD18mk UAV's thermal imaging core,Thermal Module, Infrared Camera Module |
Contact Engineer manager
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-18792456795
Email: mh_elec@126.com or jacky@mh-elec.com

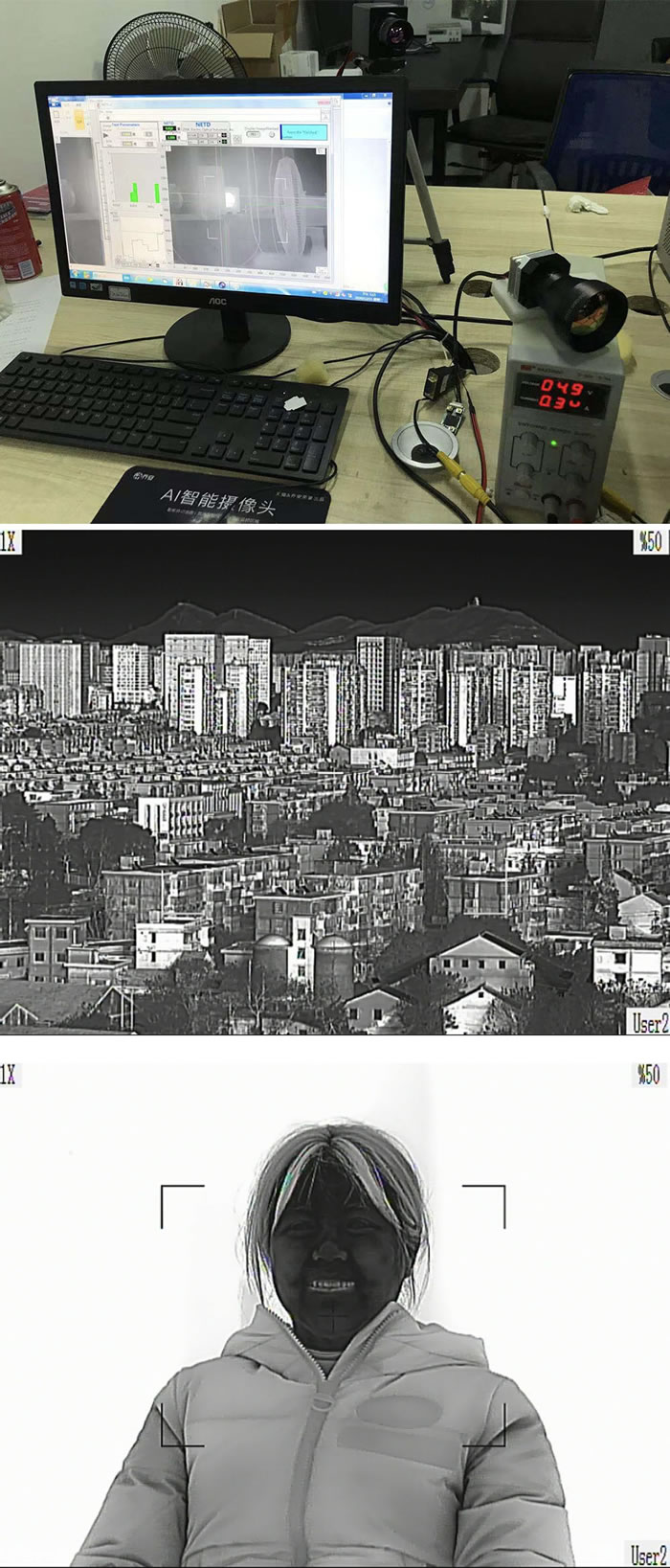

The smaller NETD's Value of thermal module,the better images.
Modle MH-6-18mk,I t is the first commercially available uncooled thermal camera core to realize NETD 18mk, enabling system integrators to reduce optics sizes and decrease optics cost.
Description:
MH-6-18mk thermal imaging core is a small size, very low power consumption, NETD18mk uncooled infrared thermal imaging module, it has the smallest NETD in China, which makes the core has the best images.
Its compact design makes it completely suitable for OEM assembly and integration.
With a variety of configurations and optional lenses, MH-6-18mk thermal imaging core can meet almost all application requirements.
MH-6-18mk thermal imaging core is most suitable for applications requiring portable, small, low-power and low-cost thermal imaging movement.
Features:
640*480px@17um
The boot time is less than 3 seconds
NETD＜18mk @300k F1.0
The minimum power consumption is less than 0.9W
With blank, DDE algorithm
It has the function of optical auto focusing and continuous zoom
LVDS standard data output
RFQ(Frequently asked questions)
1.What is NETD in a Thermal Camera?why NETD's value smaller, its quality better?
See: http://www.mh-elec.com/news-x.php?id=560
2.Why MH could realize NETD to 18mk?
Because MH use the best uncooled thermal FPA detector(sensor), MH has extremely professioanl engineers who are good at design,algorithm,production and test etc.
3.Does MH-6-18mk thermal imaging core has shutter or without shutter?
MH-6-18mk thermal imaging core has shutter.
4.Can MH Tech do OEM and design as clients'parameter and interface requirement?
Absolutely,MH Tech can do OEM and design as clients'parameter and interface requirement.
5.What is the parameter of MH-6-18mk thermal imaging core?
|
Parameter
|
|
Model
|
MH-6-18mk
|
|
Detector
|
Detector type
|
Uncooled amorphous
silicon FPA
(No-TEC）
|
|
FPA format /Pixel pitch
|
640*480px@17um
|
|
NETD
|
≤18mk at f
/1.0 300K
|
|
Frame rate
|
50Hz
|
|
Spectral range
|
8~14um
|
|
Image processing
|
calibration
|
With shutter
|
|
Start-up time
|
＜3s
|
|
Image enhancement
|
DDE
|
|
Image display resolution
|
768×576
|
|
Image frame rate
|
50Hz（PAL）
|
|
Lens
|
17mm,19mm,
25mm,
35mm,50mm
|
|
Controls
|
Polarity
|
Black hot/white hot/color
|
|
Zoom
|
1x, 2x, 4x
|
|
Brightness
|
Auto+manual
|
|
Contrast
|
Auto+manua
|
|
Image reversal
|
Horizontal/Vertical
|
|
Crosshair
|
YES
|
|
Power
|
Operation Voltage range
|
DC: +2.5V~+15V
|
|
Power consumption
|
＜0.9W
|
|
Reverse connect protection
|
YES
|
|
Over/Under Voltage protection
|
YES
|
|
Environment
|
Operation tempreture range
|
Commercial
:-20ºC~+60ºC
|
|
Option:
-40ºC~+60ºC
|
|
Non-operation tempreture range
|
-45ºC~+65ºC
|
|
Humidity
|
5%~95% Non Condensing
|
|
Physical Attributes
|
Weight
|
75g(without lens)
|
|
PCB size
|
44.5X44.5X34mm
|
|
Interface
|
External Power supply
|
YES
|
|
Digital Video output
|
LVDS
|
|
Analog video output
|
YES
|
|
Communication
|
RS-232/RS-485
|
