MH-RS Series Thermal Weapon Sight

Please click or email to
mh_elec@126.comorjacky@mh-elec.com



Thermal Weapon Sight

Thermal Weapon Sight

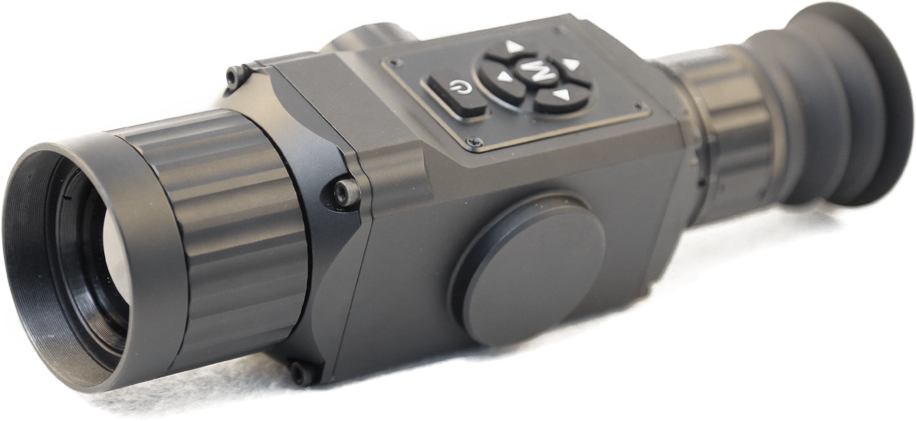

MH RS series is a compact and lightweight multi-functional thermal weapon sight. With advanced non-film technology, it has the features of high sensitivity, high refresh rate and high stability. Take advantage of a 384*288 resolution sensor featuring 17 micron technology, a 50Hz frame-rate system, enhanced target recognition, 4x digital electronic zoom and a MIL spec digital OLED micro display for crisp, precise imagery. With easy controls , the MH-RS series lets you take your shot with confidence, even in complete darkness.


Features

* High thermal resolution, high resolution OLED color display and high refresh rate.Offers clear, crisp imagery through smoke, dust and complete darkness.

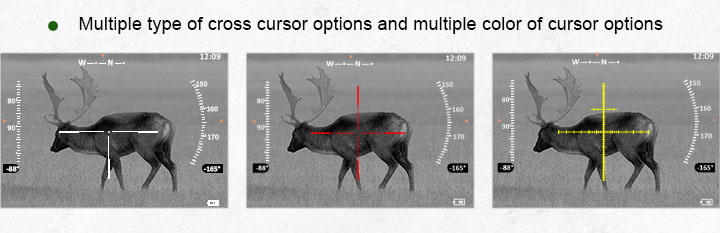

* Multiple type of cross cursor options and multiple color of cursor options

* Multiple function: Thermal image/ Hot tracking/ Electronic Compass/ Picture in picture(PIP)/ Rangefinder

* Multiple language for your choose.

*Fully waterproof IP67, MH RS thermal scopes can be operated in precipitation of any intensity. Such as heavy shower or snowfall.


Thermal Weapon Sight

Thermal Weapon Sight


Type MH-RS335
Detector 384×288,17μm
Type Uncooled FPA, Shutter less
Spectral Range 8~14μm
Focus Length 35mm(50mm,75mm Optional)
F# F1.0
FOV 10.6°×8.0°
Frame Frequency 50Hz
OLED 0.5 inch, 1024×768
Digital Zoom 1×, 2×, 4×
Palette White-hot, Black-hot, Red-hot, Iron-hot, Sky
Recognition Range
1.8m×0.5m Human 500m
2.3m×2.3m Nato Target 800m
Detection Range
1.8m×0.5m Human 1000m
2.3m×2.3m Nato Target 1300m
Mechanical
Shock 500G
Chassis Picatinny Chassis
Power 26650×1Pcs, 3.7V, Rechargeable Li-battery
Working Time ≥8h
Environment
Working Temperature -40℃~60℃
Encapsulation IP67
Weight 650~1300g
Size ≤250mm×80mm×52mm
