Multifunctional ALL-IN-ONE Thermal Binoculars
From tactical superiority to ultimate night vision experience, the MH900 model packs thermal imager, digital night vision, laser range finder, GPS and many useful functions all in one device.

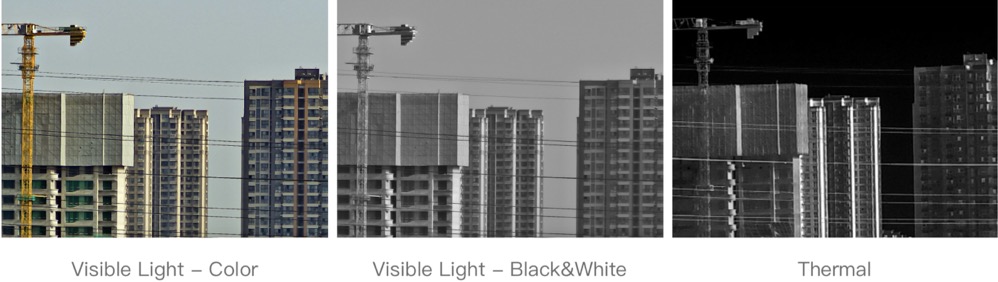

1.Dual Vision, Dual Channel
Switch between Thermal mode and visible light mode (digital night vision) to detect your target either at highlighted or with details. Using as a duo channel device to survive during both day and night time.
2.Built-in GPS Module
3.Built-in Digital Magnetic Compass

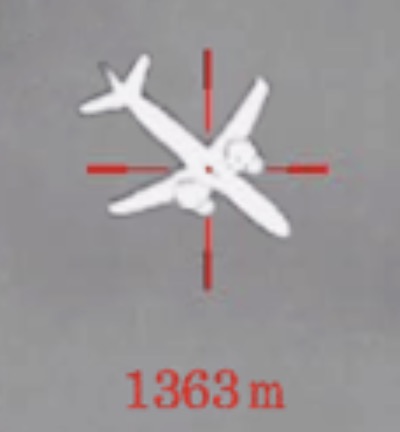

4.Built-in Laser Range Finder
Precise laser range finder for measuring distances with simple one-click. Senopex provides customize laser range finder solution from 1km to 7km to detect animals, man-size targets, vehicles and buildings in any weather conditions.

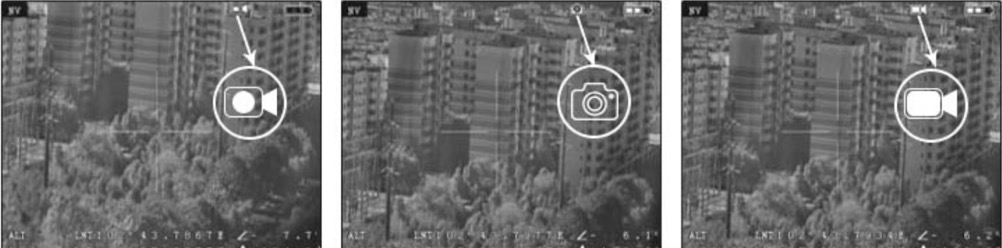

5. Photos and videos taken

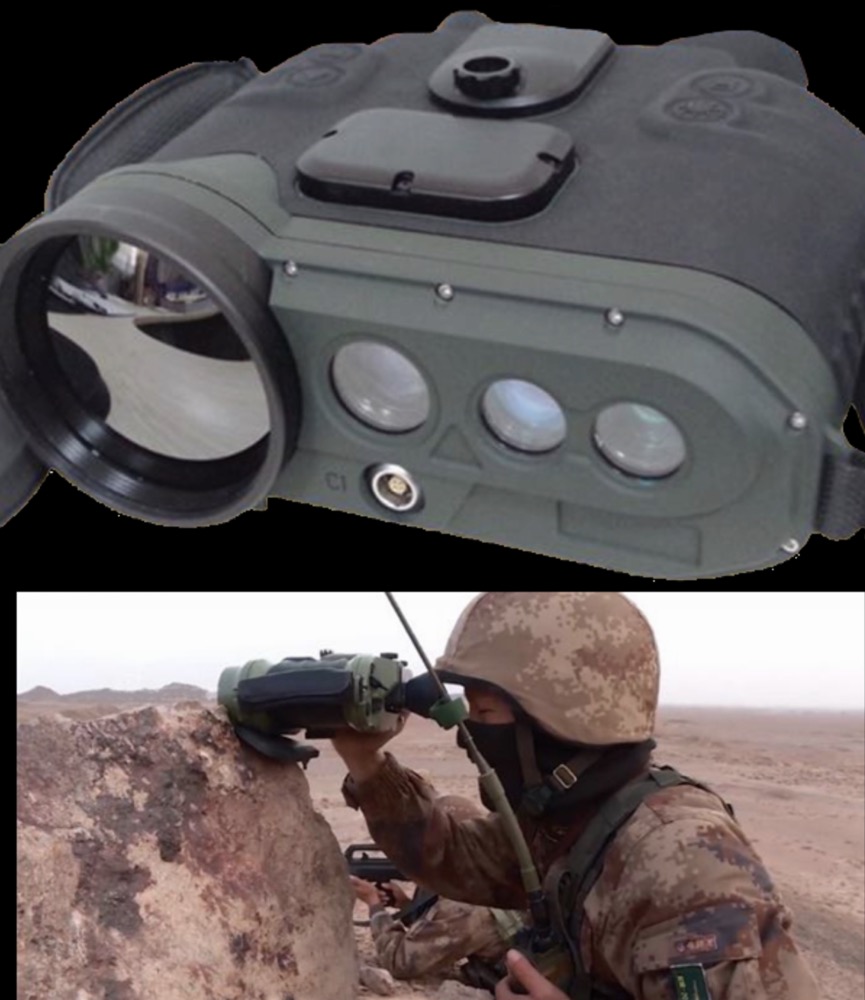

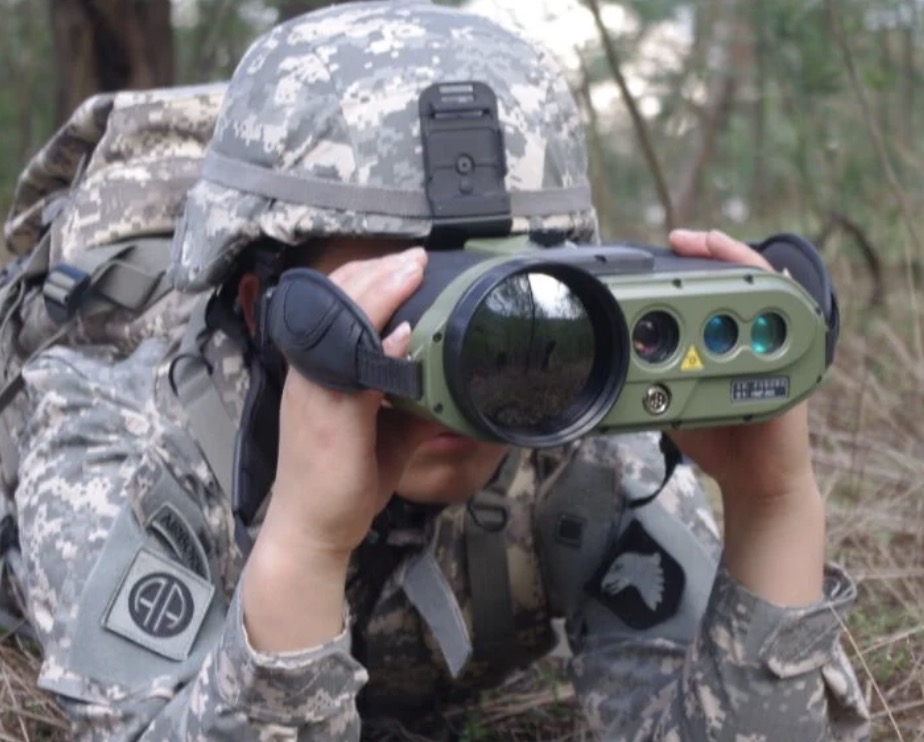

6.Using Multifunctional Thermal Binoculars include thermal imager,digital night vision,laser range finder,GPS

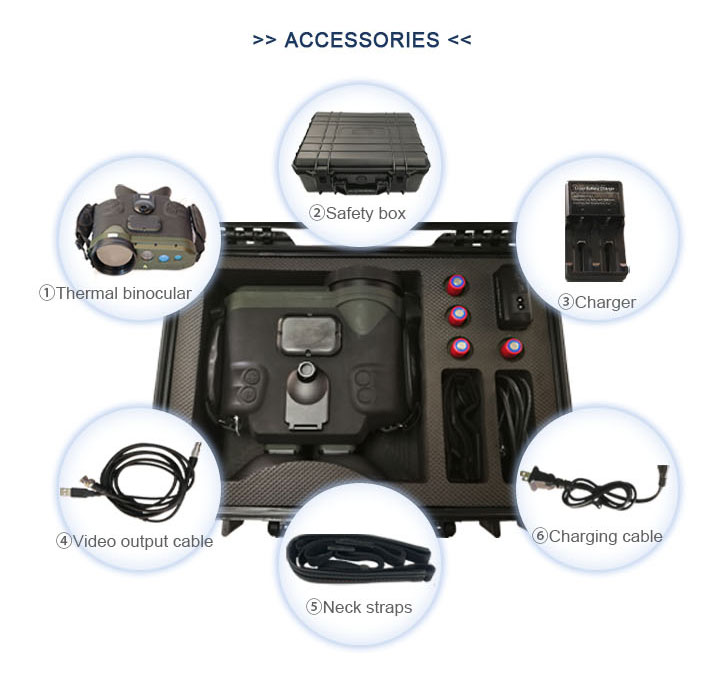

7. Package and accessories
|
Model:MH900
|
|
ThermalImager
|
|
Detector Type
|
Uncool-ed VoX
|
|
Array Size/Resolution
|
640×512
|
|
Spectral range
|
8～12μm
|
|
Detector Pitch
|
12μm
|
|
Frame Rate
|
50Hz(PAL)
|
|
Polarity
|
White hot/Black hot（pseudo-color）
|
|
NETD
|
≤50mK@25℃,F#1.0
|
|
Contrast/Brightness
|
Auto/Manual
|
|
Image Processing
|
|
ImageDenoise
|
Digital filter
|
|
Image Enhancement
|
Digital Detail Enhancement
|
|
E-Zoom
|
1~4×
|
|
Infrared Optical
|
|
Focus mode
|
Motorize Focus
|
|
IR Lens
|
f=85mm, F# 1.0
|
|
Field of view
|
5.2°×4.1°
|
|
Focus Range
|
8m～∞
|
|
Micro Display
|
2×0.5’ OLED（1024×768 pixels ）
|
|
Eyepiece Magnification
|
12×
|
|
Night vision &DayCamera
|
|
Sensor
|
Ultra-Low Light CMOS
|
|
Effective pixels
|
1280×960
|
|
Focal Length
|
f =35mm
|
|
Working illuminance
|
0.001 lux
|
|
Features
|
WDR\3Ddenoise\Automatic shutter
|
|
Laser Range Finder
|
|
Wave Length
|
1.54μm （Eye safety)
|
|
Range distance
|
50m～5000m（Max 6000m）
|
|
Accuracy
|
< ±1m
|
|
Efficiency
|
> 98%
|
|
GPS /GNNS
|
|
Accuracy
|
CEP< 5m
|
|
Digital Magnetic Compass
|
|
Azimuth accuracy
|
<±0.5° (RMS)
|
|
Pitch angle
|
<±0.2° (RMS)
|
|
System Parameters
|
|
Target Localization
|
1.5% CEP
|
|
Secure Me
|
Optional
|
|
External interface
|
USB2.0/RS-232C
|
|
Mount Adaptor
|
1/4' Standard tripod mounting
|
|
PowerSupply
|
|
Battery
|
7.2V/3200mAH; 2×18650 Lithium ion
|
|
Average Power
|
<5W (Observation mode)
|
|
Operating Time
|
≥ 4.5 hours (Observation Mode)
|
|
Environmental
|
|
Protect standard
|
MIL STD 810F
|
|
Operating Temperature
|
-30℃～+55℃
|
|
Storage Temperature
|
-40℃～+60℃
|
|
Humidity
|
5%~95%(Non-Condensing)
|
|
Vibration
|
Sweep frequency:5-200-5Hz,Acceleration 2.5g
|
|
Impact
|
10g/11ms Half sine wave
|
|
Physical parameters
|
|
Dimension（mm）
|
255×230×95（L×W×H）
|
|
System weight
|
~2.2Kg
|
|
Housing
|
Magnesium alloy/Poly-carbon/Rubber
|
|
Suitcase Dimension (mm)
|
460×350×180（L×W×H）
|
|
Observation Distance
|
|
Man(1.8×0.92m)
|
Detection:~4500m（IR）
Recognition:~1300m（IR）
|
|
Vehicle(2.3×2.3m)
|
Detection:~7500m（IR）
Recognition:~3000m（IR）
|
