| Different Size Thermal Imaging Camera Lens |
Pls click or email tomh_elec@126.com
orjacky@mh-elec.com
Product Description
Focus on infrared cameras and infrared optical components. Ge window, Thermal Imaging Lens
|

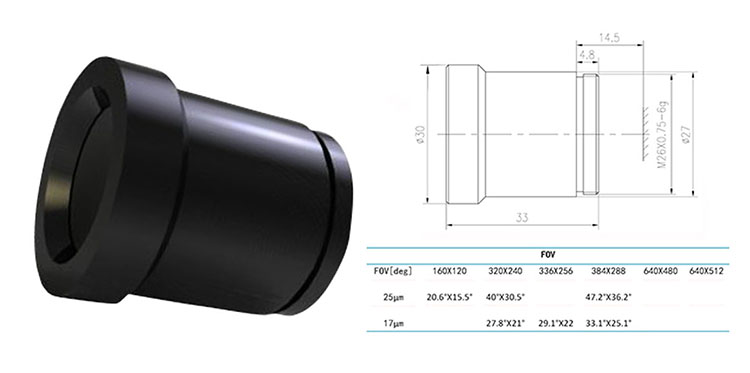

Focal length
|
11 mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～12μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
384×288 25µm
|
|
Back intercept
|
13.6 mm
|
|
FOV
|
47.2°×36.2°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
3m～∞
|
|
Dimensions
|
Φ30x33mm
|
|
After working distance
|
14.5 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
|

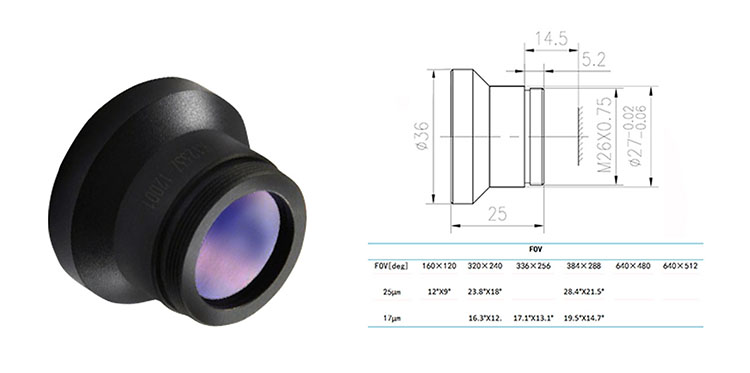

Focal length
|
19mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～12μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
384×288 25μm
|
|
Back intercept
|
9.6 mm
|
|
FOV
|
28.4°×21.5°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
5m～∞
|
|
Dimensions
|
Φ36x25mm
|
|
After working distance
|
14.5 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
|

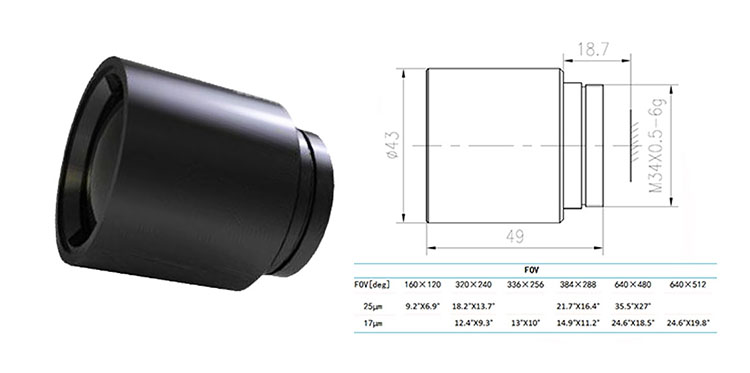

Focal length
|
25 mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～12μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
640×480 25µm
|
|
Back intercept
|
13 mm
|
|
FOV
|
35.5°×27°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
3m～∞
|
|
Dimensions
|
Φ43x49mm
|
|
After working distance
|
18.7 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
|

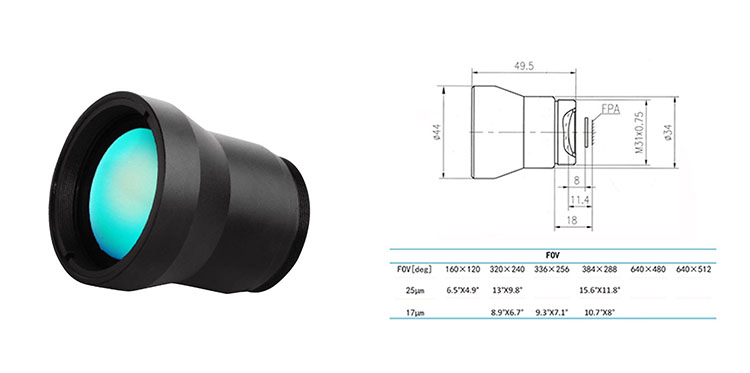

Focal length
|
35 mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～12μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
384×288 25μm
|
|
Back intercept
|
11.4 mm
|
|
FOV
|
15.6°×11.8°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
5m～∞
|
|
Dimensions
|
Φ44x49.5mm
|
|
After working distance
|
18 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
|

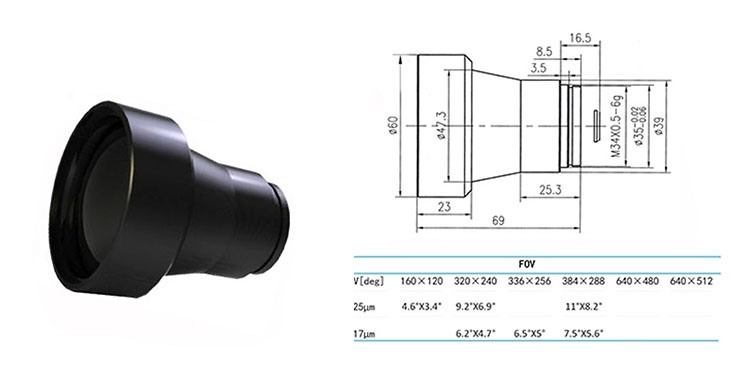

Focal length
|
50 mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～14μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
384×288 25µm
|
|
Back intercept
|
11.9 mm
|
|
FOV
|
11°×8.2°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
7m～∞
|
|
Dimensions
|
Φ60x69mm
|
|
After working distance
|
15.5 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
|
Focal length
|
75 mm
|
|
F/#
|
1.0
|
|
Spectral range
|
8～12μm
|
|
Average transmittance
|
(8-12μm) ≥85% (hard carbon film) ≥91% (high permeability)
|
|
Detector type
|
640×480 17μm
|
|
Back intercept
|
13.3 mm
|
|
FOV
|
8.3°×6.2°
|
|
Focus type
|
Fixed focus
|
|
Focus range
|
8m～∞
|
|
Dimensions
|
Φ85x84mm
|
|
After working distance
|
16.5 mm
|
|
Operating temperature
|
-30℃～+50℃
|
|
Storage temperature
|
-40℃～+60℃
|
|
Protection level
|
IP66 (lens front end)
|
