| MH-SM567-6 Thermal camera Core,Thermal Module, Infrared Camera Module for UAVs |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
TO make the images clearer with smallest NETD and size,this is MH's aim to produce thermal imaging cores.
Description
MH-SM567-6 thermal core is a micro-thermal imaging solution that provides all weather vision. It has an advanced, versatile, modular 17μm platform that has been specially designed for all types of applications. Developed to meet extremely harsh environmental conditions, MH-SM567-6 thermal core gives excellent high end performance and has miniature dimensions especially designed for security and mid-range surveillance products.
Features
*Ultra-low power consumption
*Single input voltage
*Extremely short time to image
*Analog video outputs
Wy Choose MH Thermal Core?
MH Thermal Core is ideal for OEM thermal imaging solutions. Its adaptable mechanical design allows maximum flexibility and easy customization. With MH’s state of the art image processing capabilities and shutter and shutterless operations, Core works without image degredation, using a highly sophisticated algorithm.
1.Specification of thermal imaging camera core, Model MH-SM567-6
|
Model
|
MH-SM567-6
|
|
Detector Performance
|
|
Type
|
Uncooled
amorphou
s silicon FPA
|
|
FPA format/Pixel pitch
|
640*480 / 17um (Gen2)
|
|
Sensitivity
|
≤50mk at f/1.0 300K
|
|
Frame rate
|
50Hz
|
|
Spectral range
|
8~14um
|
|
Image Processing
|
|
Non-uniformity correction
|
Self-adaption calibration
|
|
Time to image
|
<3s
|
|
Image enhancement
|
DDE
|
|
Image display
resolution
|
640×480
|
|
Frame rate
|
50Hz
|
|
Lens
|
12.8mm
|
|
Display Control
|
|
Modes
|

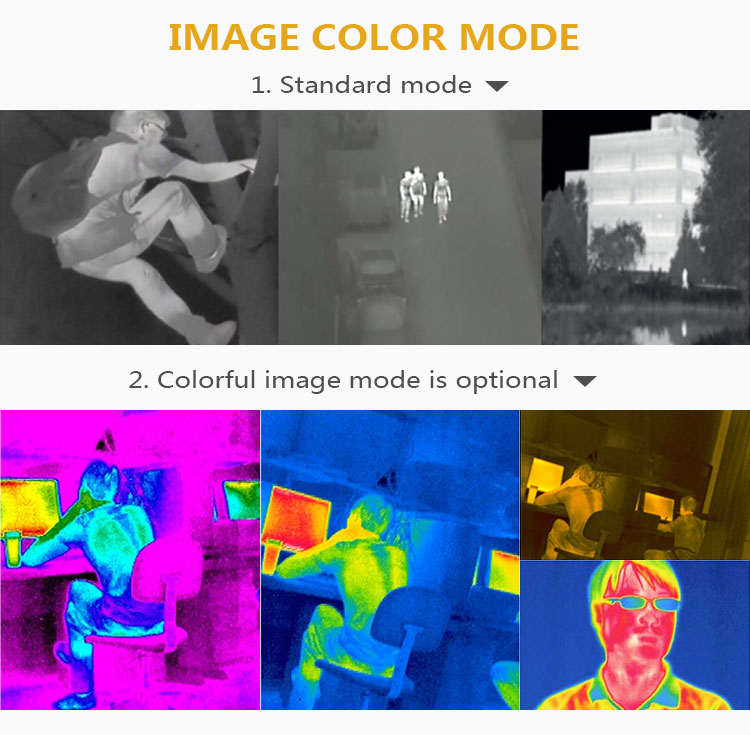

While hot/black hot
/(Optional colorful )
|
|
Image zoom
|
×2,×4 digital zoom
|
|
Brightness
|
Auto/manual
|
|
Contrast
|
Auto/manual
|
|
Image reversal
|
Horizontal/Vertical
|
|
Crosshair
|
One or more
|
|
Power
|
|
Operation
Voltage range
|
DC: +2.5V~+5.5V
|
|
Typical
|
DC:3.7V
|
|
Power consumption
|
<0.9W
|
|
Reverse protection
|
Yes
|
|
Over/under
voltage protection
|
Yes
|
|
Environment Parameters
|
|
Operation
temperature range
|
Commercial:
-20ºC~+60ºC
|
|
Special purpose:
-40ºC~+60ºC
|
|
Storage
temperature range
|
-45ºC~+65ºC
|
|
Humidity
|
5%~95% non-condensing
|
|
Anti-
Vibration and shock
|
GJB 150-16 2.3.1
|
|
GJB 150-18 T7 100g/6ms
|
|
Temperature shock
|
-5ºC/min（-40ºC~+60ºC）
|
|
Physical Attributes
|
|
Weight
|
33g
|
|
Size
|
24*24mm(Only PCB)
|
|
External Power supply
|
Yes
|
|
Digital video output
|
14 Bit(50Hz)
/ BT.656(customized)
|
|
Communication
|
RS-232 or RS-485
|

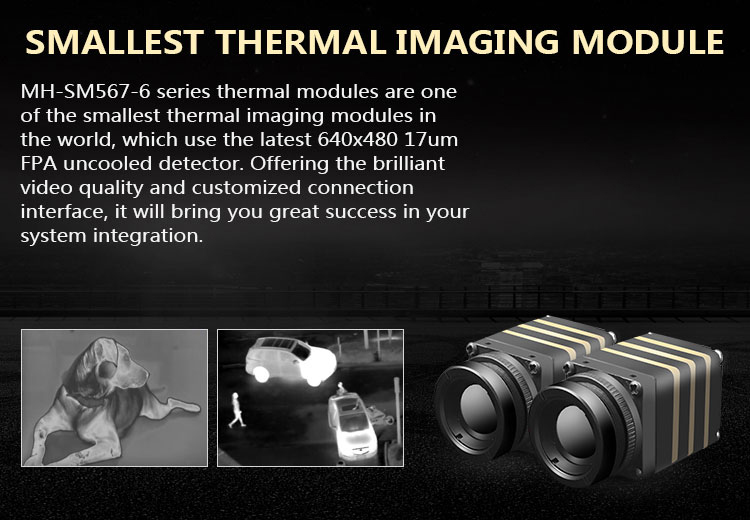

2.Mini Thermal Imaging Camera Coreswith high resolution 640*480,17um

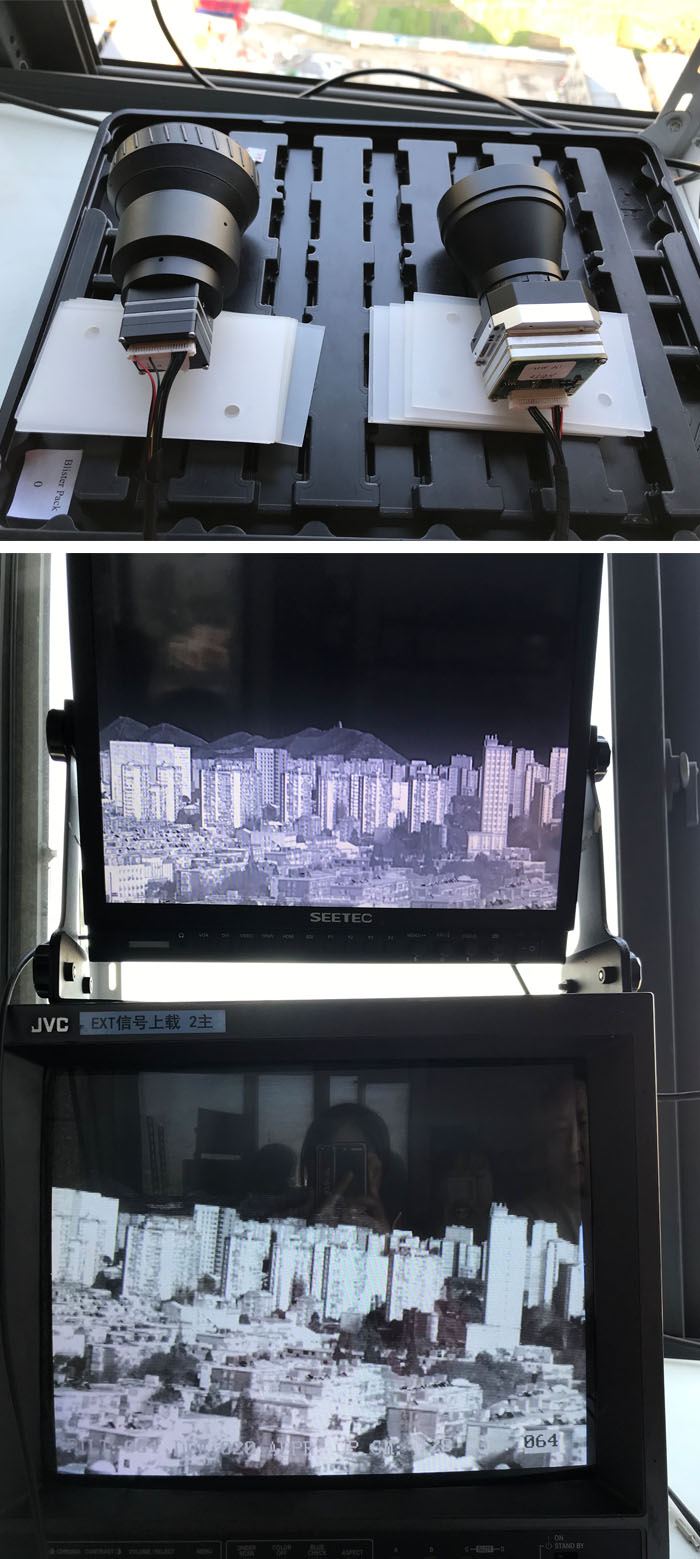

3.Thermal imaging camera cores are subsystems designed to allow integration into other systems. Thermal camera cores can be used in whole or subsystem form by an OEM in many applications. ,for example, thermal monocular, thermal binoculars, uavs.
