1. Brief Introduction
Inertial inclinometer is equipped with high accuracy MEMS accelerometer, by detecting acceleration component on its sensitive axis, using the filtering technique and system compensation algorithm, calculates inclination angle of the measuring carrier relative to the horizontal angle. Especially suitable for machinery manufacturing, equipment installation, road and bridge monitoring, automatic control and other static measurement applications.
Aimed to the application scenarios of industrial complex, this product is specially designed for protection, the protection level of IP67, which is effective against moisture, salt fog/mist and electromagnetic interference and other complex environment, with good environmental adaptability and reliability.
2. Features
(1) Using high accuracy MEMS accelerometer to measure the biaxial inclination variation, which taking the horizontal as reference surface, output angle is taking the measuring datum plane as a reference.
(2) The users can reset the output position of relative zero position again by sending an instruction.
(3) Waterproof IP55, strong electromagnetic resistance.
(4) High accuracy, small size and weight, low dissipation.
(5) Strong shock and vibration resistance.
3. Performances
|
Sr. No.
|
Item
|
Grade
|
Remark
|
|
System
|
|
1
|
Measurement range
|
±30°
|
|
|
2
|
Measurement accuracy
|
0.01°（±30°range）
|
Biax
|
|
3
|
Resolution
|
0.001°
|
|
|
Environmental Suitability
|
|
4
|
Shock
|
40g
|
|
|
5
|
Working Temperature
|
-40℃～65℃
|
-40℃～65℃
|
|
|
6
|
Storage Temperature
|
-45℃～75℃
|
-45℃～75℃
|
|
|
7
|
Vibration
|
Meet the vehicle vibration requirement of GJB150.16A-2009
|
|
Physics characteristics
|
|
8
|
Size
|
63*44*19mm
|
|
|
9
|
Weight
|
50g
|
|
|
10
|
Power supply
|
18VDC～36VDC
|
|
|
11
|
Power dissipation
|
1W
|
|
|
Interface characteristics
|
|
12
|
Interface
|
RS232、RS422、CAN
|
Selectable
|
|
13
|
MTBF
|
≥1500h
|
|
|
15
|
Data refresh rate
|
100Hz
|
|
|
15
|
Band rate
|
115200bps
|
|

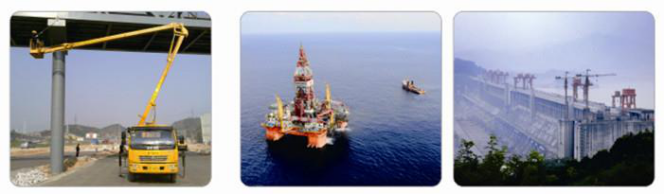

4. Applications
High accuracy positioning navigation of various vehicle carrier or land-based platform. Widely used in unmanned driving, mission vehicle navigation, mapping, underwater, underground positioning navigation and other fields.
(1) Measuring angle of departure of artillery.
(2) Radar antenna angle alignment.
(3) Attitude detection and antenna angle measurement of satellite communication vehicle.
(4) Special vehicle leveling
(5) Dam detection.
(6) High-altitude platform safety detection.
(7) Application of shield pipe jacking.
(8) Detection of highway bridge.

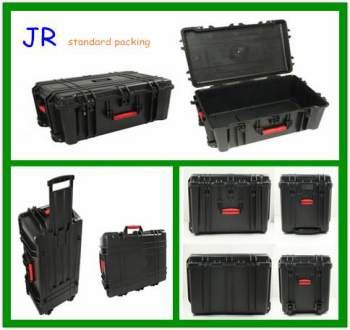

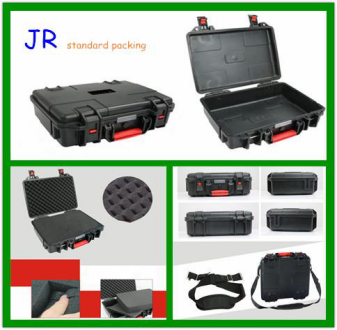

5. Packages
