Attitude And Heading Reference System

Classification

Pls click or email to

1. Brief introduction

TY421 attitude and heading reference system is a low cost system which can be used in simple vehicle navigation “Satcom on the move” antenna platform stabilization. This MEMS gyro, MEMS accelerometer, as well as algorithm suitable for conical scanning of antenna and satellite data correction this system uses, makes the requirement of hardware reduce greatly. Finally, the combination of dual antenna GPS or magnetometer can provide precise navigation and position info for users.

2. Features

(1) Auto-output of navigation information

(2) Meet the requirement of accurate measurement of attitude angle of aircraft, when in large maneuver flight and hovering.

(3) Small volume and weight.

(4) Communication interface RS422、CAN, to be selectable.

(5) Wide voltage input range.

(6) Can complete redevelopment according to customers’ requirement.

3. Performances

Sr. No.	Item	Grade	Remark
System
1	Preparation time	≤2min
2	Attitude accuracy	≤1° 1σ (static)
		≤2° 1σ (dynamic)
3	Heading accuracy	≤0.2°/ Baseline(GPS combined)
		≤0.5°Magnetometer combined
4	Height accuracy	10 m (GPS combined)
5	Horizontal position accuracy	10m (CEP)(GPS combined)
6	Velocity accuracy	0.02m/s (GNSS combined)
Environment suitability
7	Shock	30g
8	Working temperature	-40℃～65℃
9	Vibration	Meet the vehicle vibration requirement of GJB150.16A-2009
Physics characteristics
10	Size	15011050mm
11	Weight	＜700g
12	Power supply	18VDC～36VDC
13	Working power dissipation	10W
Interface characteristics
14	Interface	RS232、RS422、CAN	Selectable
15	MTBF	≥1500h
16	Data refresh rate	100Hz
17	Band rate	115200bps
18	Memory	32G	customized

4. Application

(1) “Satcom on the move” antenna stabilization

(2) Unmanned vehicles

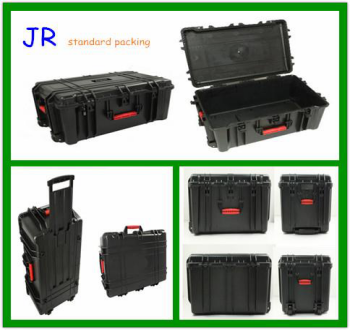

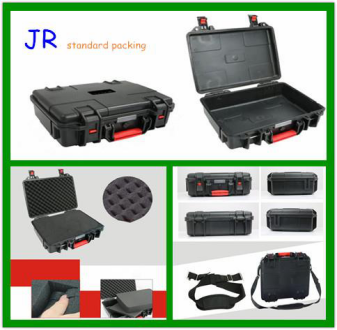

5. Packages
