1. Brief introduction
IMU32 is a miniaturized, medium high accuracy laser inertial measurement unit. With 3 laser gyroscopes, 3 quartz accelerometers, secondary power supply and acquisition circuit of accelerometer. It is a 6 axial sensor for detecting carrier’s space movement info.
2. Features
(1). Calibration free
The IMU level error calibration is completed, which is convenient for users' engineering application.
(2). Super scalability
The installation position of three axis accelerometer and accelerometer acquisition circuit can be reserved.
The installation position of GNSS receiver, and the antenna interface can be reserved.
Selectable secondary power supply module. (Basic + extended power)
(3). Stable performance, strong environmental adaptability
3. Performances
|
Sr. No
|
Parameter
|
Technical index
|
|
Gyro
|
|
1
|
Bias
|
±0.1（°）/h
|
|
2
|
Bias stability
|
Grade A：≤0.010（°）/h
|
|
Grade B：≤0.015（°）/h
|
|
Grade C：≤0.020（°）/h
|
|
3
|
Bias repeatability
|
Grade A：≤0.010（°）/h
|
|
Grade B：≤0.015（°）/h
|
|
Grade C：≤0.020（°）/h
|
|
4
|
Bias magnetic sensitivity
|
Grade A：≤0.010（°）/h/G
|
|
Grade B：≤0.015（°）/h/G
|
|
Grade C：≤0.020（°）/h/G
|
|
5
|
Random Walk coefficient
|
≤0.003（°）/h 1/2
|
|
6
|
Scale factor non-linearity
|
≤5ppm
|
|
7
|
Input axis misalignment angle
|
≤10″
|
|
Accelerometer
|
|
8
|
Bias stability
|
≤5×10-5g
|
|
9
|
Bias repeatability
|
≤5×10-5g
|
|
10
|
Scale factor stability
|
≤30ppm
|
|
11
|
Scale factor repeatability
|
≤30ppm
|
|
Measurement Range
|
|
12
|
Angular rate measurement range
|
±300°/s，±500°/s（Selectable）
|
|
13
|
Linear acceleration
|
±15g，±40g（Selectable）
|
|
Physics performance
|
|
14
|
Start time
|
≤20s
|
|
15
|
Outer dimension (mm)
|
（202±1）×（194±1）×（135±1）
|
|
16
|
Installation interface
|
8 M5 Threaded holes, 4 on each side（145±0.1）mm×（137±0.1）mm
|
|
17
|
Weight (kg)
|
<8kgs
|
|
18
|
Power
|
+28V, +12V,
|
|
-12V, -12V, -12V, -12V
|
|
19
|
Power dissipation
|
Start：100w
|
|
Working：50w
|
|
Environmental suitability
|
|
20
|
Working temperature
|
-40℃～70℃
|
|
21
|
Storage temperature
|
-45℃～75℃
|
|
22
|
Shock
|
40g, 11ms, Half sine/final peak saw tooth
|
|
23
|
Vibration
|
Sine: 10Hz-500Hz, 5g
|
|
Random: 10Hz-200Hz, 0.015g2/Hz
|
|
Interface
|
|
24
|
Electrical interface
|
Power interface, rectangular electric connector：J30J-37ZK
|
|
Communication interface：RS422
|
|
25
|
Connector cable length
|
Default: 210mm±5mm
|
|
26
|
Communication interface
|
RS232，RS422 (Selectable)
|
|
27
|
Band Rate
|
115200bps
|
|
28
|
Data refresh rate
|
100Hz
|

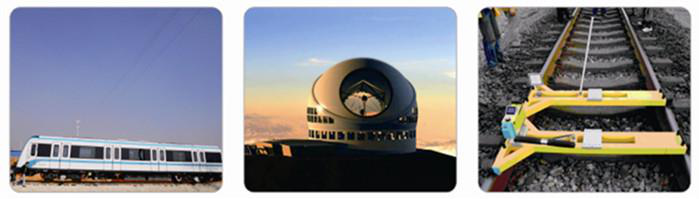

4. Application
(1) Various strapdown high accuracy positioning and orientation device.
(2) Inertial/GNSS integrated navigation system.
(3) Mobile measurement system.
(4) High-speed railway
(5) Rail safety detection
(6) Vehicle running attitude detection
(7) Expressway deflection measurement

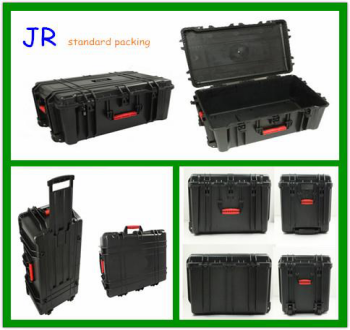

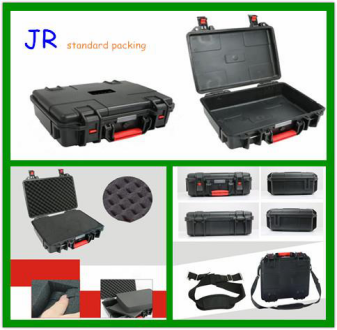

5. Packages
