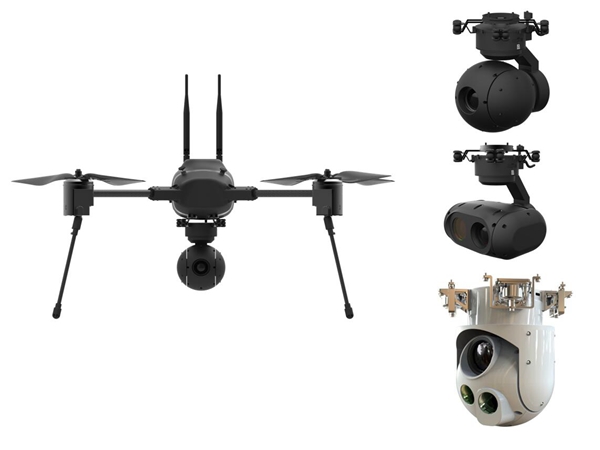

UAV Payload MHU800A/B
MHU800A/B is payload system that consists with 3-axis stabilized gimbals, uncooled IR thermal imaging camera or HD visible camera. This system is designed for UAV with small size and light weight to be increasing the UAV’s flight time, not only monitoring and inspecting air-to-ground conditions, but also getting object’s temperature.
Features:
1. 3 1. 32G storage capacity for IR or visible photos and videos storage.
2. IR video can overlay payloads status information and the temperatures of max, min and center.
3. Video can overlay payloads status information.
4. The azimuth angle and pitching angle can be operated manually.
Application:
1. Power line inspection
2. Environmental monitoring
3. Forest firefighting
4. Law enforcement
5. Solar power inspection
6. Rescue after disaster
Specification:
|
Model
|
MHU800A
|
MHU800B
|
|
IR Thermal Imaging Camera
|
|
Detector
Resolution
|
800×600
|
N/A
|
|
Spectral
Range
|
8μm~14μm
|
|
Focal Length
|
25mm
|
|
Frame Rate
|
≥25Hz
|
|
FOV
|
≥28.7°×23.0
°（±5%）
|
|
Focus
|
Auto/Motor
|
|
Temperature
Range
|
-20℃~+150℃
（high version）
|
|
Temperature
Accurcy
|
±2℃或2%
（high version）
|
|
Color Palette
|
8
|
|
Digital Zoom
|
×1，×2，×4
|
|
IR Image
Format
|
JPG/16 bit raw rat
e（high version）
|
|
IR Video
Format
|
AVI
|
|
HD Visible Camera
|
|
Resolution
|
N/A
|
1600
Megapixel
|
|
Video
Resolution
|
1920×1080
|
|
Focal Length
|
27.4mm
~274mm
(35㎜equivalent
focal length)
|
|
Frame Rate
|
≥25Hz
|
|
Zoom
|
10x digital
zoom
|
|
Storage Format
|
JPG，AVI
|
|
Servo Platform
|
|
Azimuth Angle
|
-180°~+180°
|
|
Pitching Angle
|
-120°~+90°
|
|
Roll Angle
|
-35°~+35°
|
|
Power
|
|
Input Voltage
|
DC 20V~26V
|
|
Power
Consumption
|
Standard：
≤15W；
Peak：≤30W
|
|
Interface
|
|
Control
Interface
|
RS422
|
|
Video
Interface
|
HDMI
|
|
Storage
Interface
|
Mini SD Card（32G）
|
|
Physical Characteristics
|
|
Weight
|
≤750g
|
≤700g
|
|
Dimension
|
≤130m
m×110mm×170mm
|
|
Environmental Adaptability
|
|
Operating
Temperature
Range
|
-20℃~+65℃
|
|
Storage
Temperature
Range
|
-20℃~+65℃
|
