MHDA Three-dimensional Dynamic Deformation Measurement

As an initially independently-developed dynamic deformation measurement system，MHDA offers a full-field, non-contact measurement of deformation, vibration, strain on almost any material. The technique can be used for many tests including tensile, torsion, bending and combined loading for both static and dynamics applications. The method can be applied from very small (micro) to large testing areas – and the results are readily comparable with FEA results or strain gauges.

Fields of Application

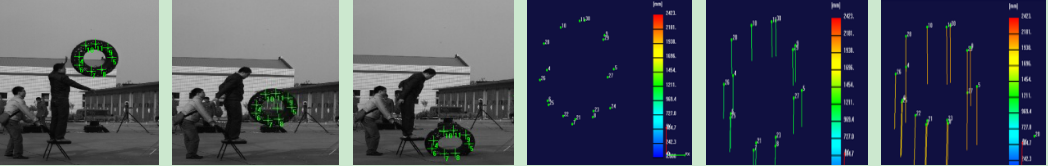

Real-time 3D measurement of object deformation, motion tracking and vibration.

Verify the results of theory research and digital simulation.

Load test, creep test, fatigue test (complex mechanisms and flexible parts ).

Vibration of vehicle body and engine, vibration of large turbines in power plants, vibration of refrigerator and air conditioner outdoor unit, vibration of NC rotary table and other machine tools.

Dynamic video measurement of vehicle crash test.

Wind blade vibration measurement.

Welding deformation measurement.

Wind tunnel test.

Technological Advantage

Initially independently-developed dynamic deformation measurement system.

Non-contact measurement, automatic image processing.

High performance tracking and measurement of 3D coordinates,                            displacement, posture trajectory, velocity and acceleration and other data.

With simultaneous dynamic measurement, it can conduct a real time calculation and complete closed-loop feedback.

Measuring Area ：0.5m～5m.

Measuring Accuracy: 0.01mm.

High-precision camera calibration: camera calibration based on independently-developed core technology (industrial close-range photogrammetry). Supporting any number of cameras simultaneous calibration. External image calibration.

Adjustable image acquisition: From tens of thousands to tens frame rate depending on measurement needs.

Multi-pattern 3D display of measurement results.

Application Cases

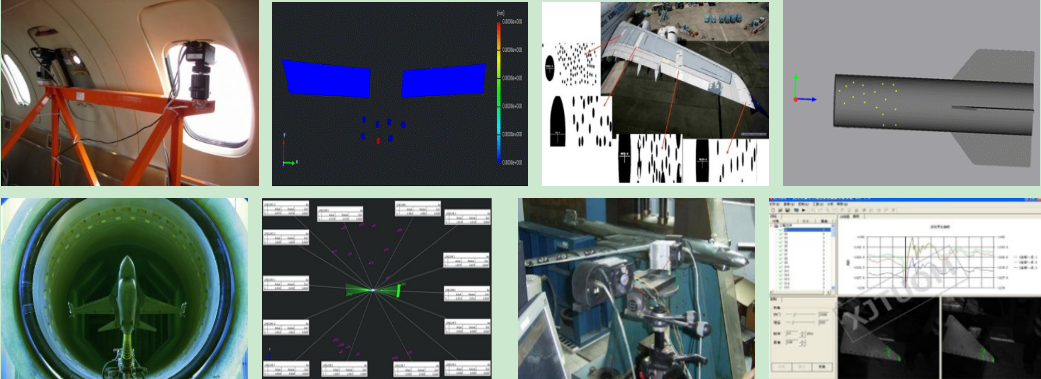

Wind Tunnels Test for Aircrafts

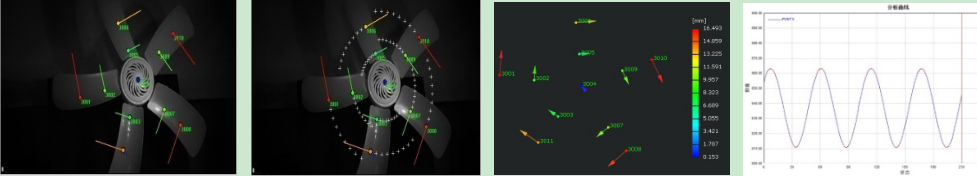

Deformation Measurement of Rotating Fan

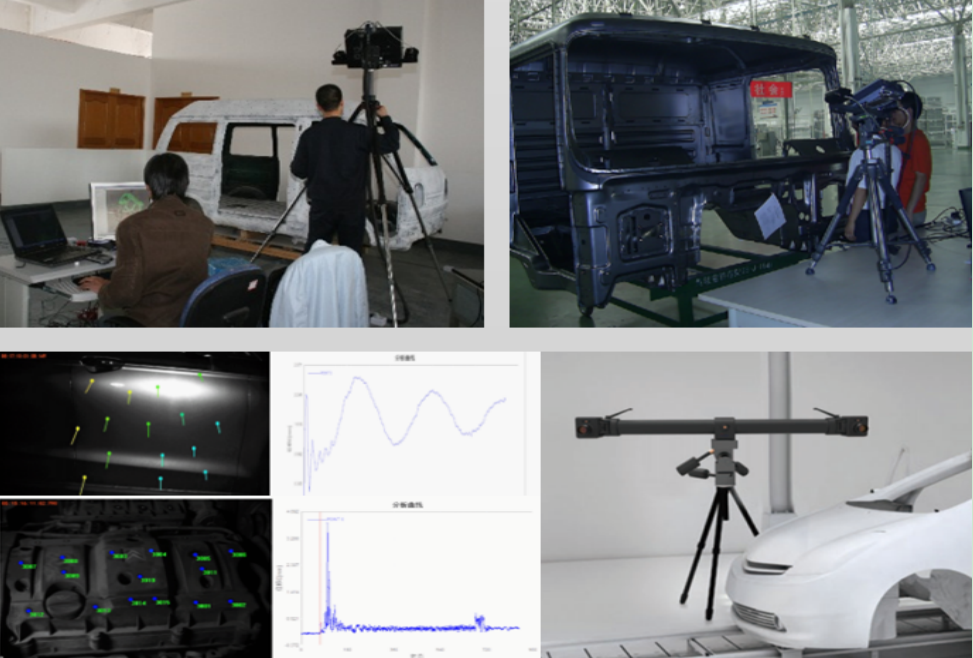

Vehicle Performance Test
