Inertial Navigation System

Pls click or email to

mh_elec@126.com or jacky@mh-elec.com



INS

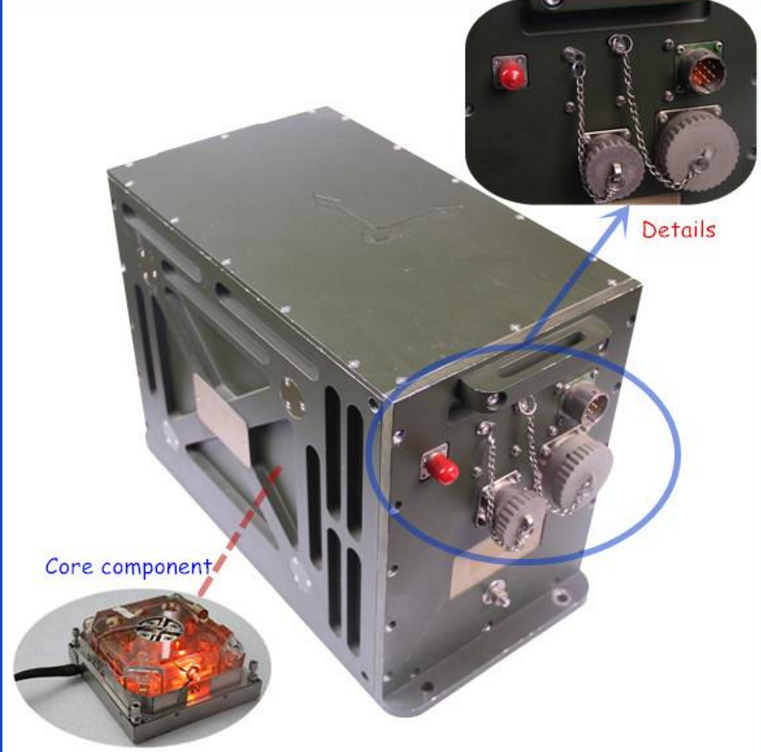

MH-LP212A High PerformanceInertial Navigation System



inertial navigation systems with ring laser gyroscope

The state-of-the-art LP212A was designed as a small and lightweight Navigation System for market. Featuring a Monolithic Ring Laser Gyro (MRLG) and an accelerometer triad, LP212A inertial sensors are tightly coupled with GPS/BDII to give best performance in its class at a consumer price.This latest instrumentcan beoperatedin continuous mode at a high speed while simultaneously sending data to the surface equipment.  Long life assured, it is utilized in numerous applications, especially in vehicles with bad shock environment. LP212A unit can be integrated with our standard CDU (Central Display Unit) and PNU that can be used both in laboratories and outside, thus ensuring information collection, monitoring, processing between this navigation system and other related devices.

LP212A MAIN FEATURES AND CAPABILITIES

LP212A is characterized by high-precision inertial, strong shock resistance ability, and usually applied to large mobile environment.

With strong shock resistance ability, this advanced device can protect against more than 400g impact force instantaneously.

With perfect integrated navigation function, LP212A is tightly coupled with GPS/BDII and provides the best navigation with an automatic selection of optimal choices according to vehicle environment.

LP212A has the best adaptive design, and can access to various communication interfaces (RS232、RS422、CAN).

LP212A MAIN APPLICATIONS

LP212A offers a low-cost, low-weight, navigation solution to a wide variety of vehicles, especially in bad shock environment.

(3 ) Technology index

NO. ITEM INDEX NOTES
Class A Class B
1 Heading Accuracy 1mil 2mil
2 Attitude Accuracy 0.2mil 1mil
3 North Seeking Time 5min 5min
4

Positional Accurac

y(Gyroscope-free)

0.2%D 0.5%D D stands for mileage(km)
5

Position Accurac

y(According to single point GPS or BDII)

5m 10m (CEP)
6

Laser

Gyro Zero

Bias Stability

0.01°/h 0.02°/h
7 Laser Gyro Scale Factor 2PPm 5PPm
8 Acceleration Zero Bias Stability 0.05mg 0.1mg
9 Impact Force 300g 300g
10 Operating Temperature

-40°C

~65°C

-40°C

~65°C

11 Dimensions

318mm

X318mmX290mm

12 Weight ≦30kg
13 Power 18VDC~36VDC
14

Data

Communication

RS232、RS422、CAN Selectable
15 MTBF ≦1500h
16 Data Refresh Rate 100Hz
17 Baud Rate

115200bps
