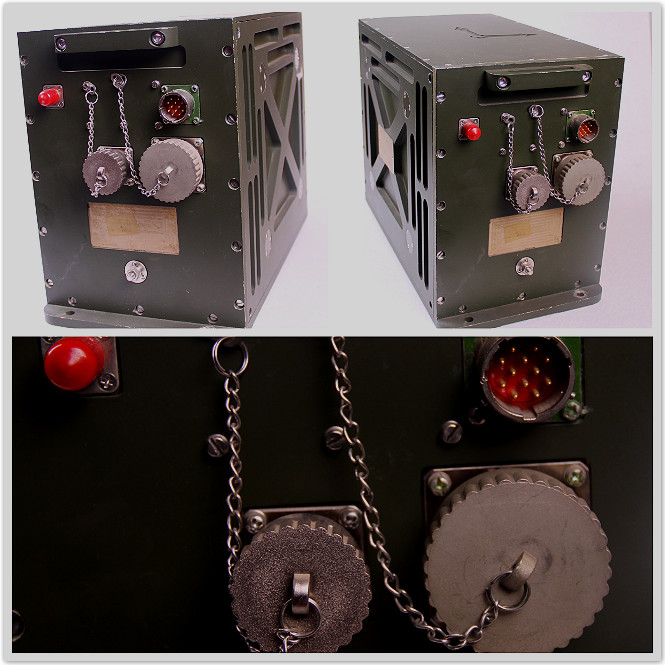

MH-LS10Improved Position and Azimuth Determining System
As a professional inertial navigation systems manufacturer,LS10 azimuth determining navigation system, a small multi-functional integrated navigation system developed by the high laser gyro and the quartz accelerometer as its key inertial devices, is the miniaturized, light-weighted version of the LP21system, which can provide information about the vehicle’s instant position ( longitude and latitude), speed, acceleration, the vehicle’s attitude and heading continuously and real-timely and the detailed navigation information based on the driving-task plan for the most application of the general vehicle platform.
(1 ) Product features:
This product has the advantages of the high precision pure inertia, small volume, and light weight, and complete integrated navigation functions, which can combine with the satellite navigation (support for the GPS, the big dipper II), and navigate based on the environment to choose the optimal combination automatically for the optimal navigation results; The design of the good adaptability suitable for multiple interfaces (RS232, RS422, CAN bus or other communication form) makes it easily to operate and apply.
(2 )Main applications
This product is the general land used model, thus can satisfy the vast majority of vehicles and carriers.
(3 ) Technology index
|
NO.
|
ITEM
|
INDEX
|
NOTES
|
|
Class A
|
Class B
|
|
1
|
Heading Accuracy
|
1mil
|
2mil
|
1σ
|
|
2
|
Attitude Accuracy
|
0.2mil
|
1mil
|
1σ
|
|
3
|
North Seeking Time
|
5min
|
5min
|
1σ
|
|
4
|
Positional
Accuracy
(Gyroscope-free)
|
0.2%D
|
0.5%D
|
D stands
for
mileage
(km)
|
|
5
|
Position
Accurac
y(According to single point GPS or BDII)
|
5m
|
10m
|
(CEP)
|
|
6
|
Laser Gyro Zero Bias
Stability
|
0.01°／h
|
0.02°／h
|
1σ
|
|
7
|
Laser Gyro Scale
Factor
|
2PPm
|
5PPm
|
|
|
8
|
Acceleration Zero
Bias Stability
|
0.05mg
|
0.1mg
|
1σ
|
|
9
|
Impact Force
|
300g
|
300g
|
|
|
10
|
Operatin
g Temperature
|
-40°C~65°C
|
-40°C~65°C
|
|
|
11
|
Dimensions
|
318mmX318mmX290mm
|
|
|
12
|
Weight
|
≦30kg
|
|
|
13
|
Power
|
18VDC~36VDC
|
|
|
14
|
Data
Communication
|
RS232、RS422、CAN
|
Selectable
|
|
15
|
MTBF
|
≦1500h
|
|
|
16
|
Data Refresh Rate
|
100Hz
|
|
|
17
|
Baud
Rate
|
115200bps
|
|
