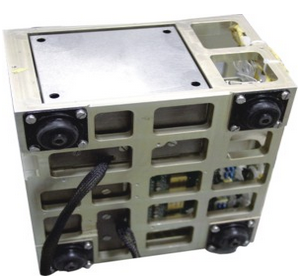

MH-IMU1D laser inertial measurement unit,inertial measurement
Compensation model can be
set with high precision and excellent long-term stability.
With varies Interface
forms, this advanced equipment can be customized according to user needs.
IMU1D is characterized by smaller
size, lighter weight and stronger environmental adaptability.
IMU1D MAIN
APPLICATIONS
IMU1D Advanced Laser Inertial
Measurement Unit is widely applied to integration of on-board navigation
systems, integration of land use positioning and orientation systems, mobile
measurement of position and attitude measurement systems , high-speed rail
track measuring systems, high precision servo-control system and other fields.
SYSTEM SPECIFICATIONS
|
NO.
|
ITEM
|
INDEX
|
NOTES
|
|
Class A
|
Class B
|
|
1
|
Roll, Pitch
and
Azimuth Angular Rate
|
≦±300°/S
|
|
|
2
|
Constant Bias
|
≦±0.5°/h
|
≦±0.5°/h
|
|
|
3
|
Bias Stability
|
≦0.015°/h
|
≦0.020°/h
|
1σ
|
|
4
|
Bias
Repeatability
|
≦0.015°/h
|
≦0.020°/h
|
1σ
|
|
5
|
Acceleromete
r Range
|
±30kg
|
±30kg
|
Spe
cifiable
|
|
6
|
Acceleromete
r Zero
Bias
Stability
|
0.05mg
|
0.1mg
|
|
7
|
Acceleromete
rBias
Repeatability
|
0.05m
|
0.05m
|
|
8
|
Start-up Time
|
﹤20s
|
|
|
9
|
Operating
Temperature
|
-40°C～70°C
|
|
|
10
|
Impact Force
|
15g/30g
|
|
|
11
|
Dimensions
|
212m
mXX195
mmXX175mm
|
|
|
12
|
Weight
|
≦11kg
|
|
|
13
|
Power
|
Accelerometer
：+5V1, +5V2，-5v，±15V
Gyro：±5V，+12v，-12v1，
-12v2
|
|
|
14
|
Data Communication
|
RS422
|
|
|
15
|
Data Refresh Rate
|
400Hz
|
|
|
16
|
Baud Rate
|
230400bps
|
|
