When traditional dual-tube night vision goggles limit your peripheral vision and slow your OODA loop during critical night missions, the MHNV GPNVGGround Panoramic Night Vision Gogglesproduced by Xi'an MH Electronics and Technology Co.,Ltd emerges as a game-changing quad-tube panoramic night vision solution built for professional night operation users.
1.Elevate Situational Awareness with True Panoramic Vision
The core advantage of MHNV GPNVG lies in its four independent image intensifier tubes matched with four dedicated objective lenses, delivering an unprecedented 120° horizontal field of view (FOV). Compared with conventional binocular night vision devices with narrow viewing angle, our panoramic night vision goggles eliminate blind spots on your left and right sides, helping you observe, orient, decide and act faster in complex low-light environments.
Designed for helmet mounting, this MHNV GPNVG supports independent IPD adjustment ranging from 50–85mm for both optical channels, fitting different facial structures and bringing long-time wearing comfort without eye strain.
2.Premium Core Configuration for Stable All-Night Performance
Every detail of MHNV GPNVG is engineered for rigorous tactical & outdoor application:
1)Adopts 18mm S-25 photocathode with resolution up to 57–64 lp/mm, MTF reaches 120 lp/mm for sharp, clear night imaging
2)Fixed 1× magnification design preserves natural depth perception, focus range covers 250mm to infinity to adapt close-quarters and long-distance observation
Built-in 850nm 20mW infrared illuminator works smoothly in extreme total darkness
3)Flexible power solution: powered by single CR123x1 lithium battery or external CR123×4 battery pack, capacity ranges from 800–3200mAh, offering continuous runtime from 30 to 80 hours to meet all-night operation demands

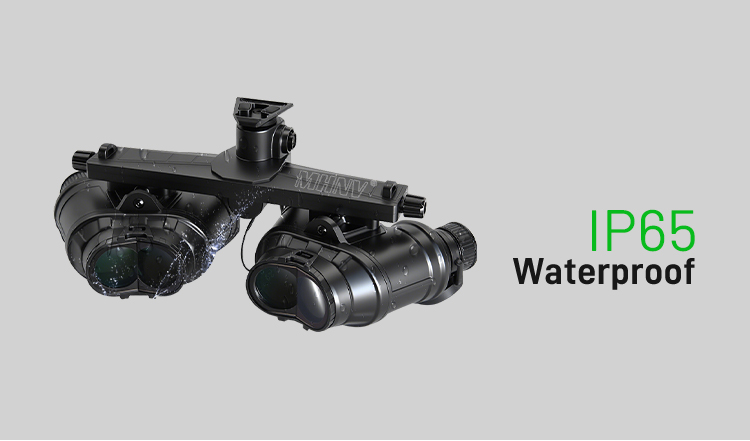

4)Rigorous environmental adaptability: operating temperature from -40℃ to +55℃, 5%–95% humidity resistance, optional IP65/IP67 waterproof & dustproof grade for harsh rain, sand and damp field conditions
3.Compact, Ergonomic Build for Tactical Deployment
We control the weight of MHNV GPNVG to only 880g (battery excluded), with compact dimension of 155mm136mm 83mm. The streamlined structure fits most mainstream tactical helmet mounts perfectly, stable during fast movement, patrol, search and rescue, night navigation and special tactical tasks. Whether for law enforcement missions, outdoor night exploration, wildlife observation or private night navigation, MHNV GPNVG quad tube panoramic night vision goggles become your reliable all-round night vision partner.
Why Choose MHNV GPNVG Panoramic Night Vision Goggles?
120° ultra-wide panoramic field of view, eliminate peripheral vision blind spots
Four independent intensifier tubes, superior night imaging definition
Adjustable dual-channel IPD, customized fit for different users
Long endurance power system & wide temperature adaptability
Optional IP67 rugged protection for all-weather outdoor use
If you are searching for high-performance wide FOV quad tube night vision goggles, MHNV GPNVG panoramic night vision goggles break the limitation of traditional night vision equipment, upgrading your night observation capability to a brand-new level.
Xi'an MH Electronic and TechnologyCo.,Ltdfocuses on infrared thermal imagers and low-light night vision devices, delivering premium full-customization solutions covering appearance, hardware, software and packaging.
We are committed to top-tier tailored services for global partners.
Kindly click our email address to send your inquiry for bespoke solutions.
