| Gen2+ White Phosphor Auto Gating Image Intensifier Tube |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
-
Type: Gen 2+ / Gen 3 (Optional)
-
Phosphor Screen: Green (P43) / White (P45)
-
FOM Range: 1600 - 2400+
-
Resolution: 64-72 lp/mm
-
SNR: 25-30+
-
Interface: Two-Contacts (Standard Automatic Gain)
-
Certifications: ISO 9001, CE, MIL-SPEC Compliant
-
Delivery: Secure worldwide shipping with full technical documentation
MNNV® Night Vision Technology: Precision from China's Optical Hubs
Technical Excellence in Night Vision Technology

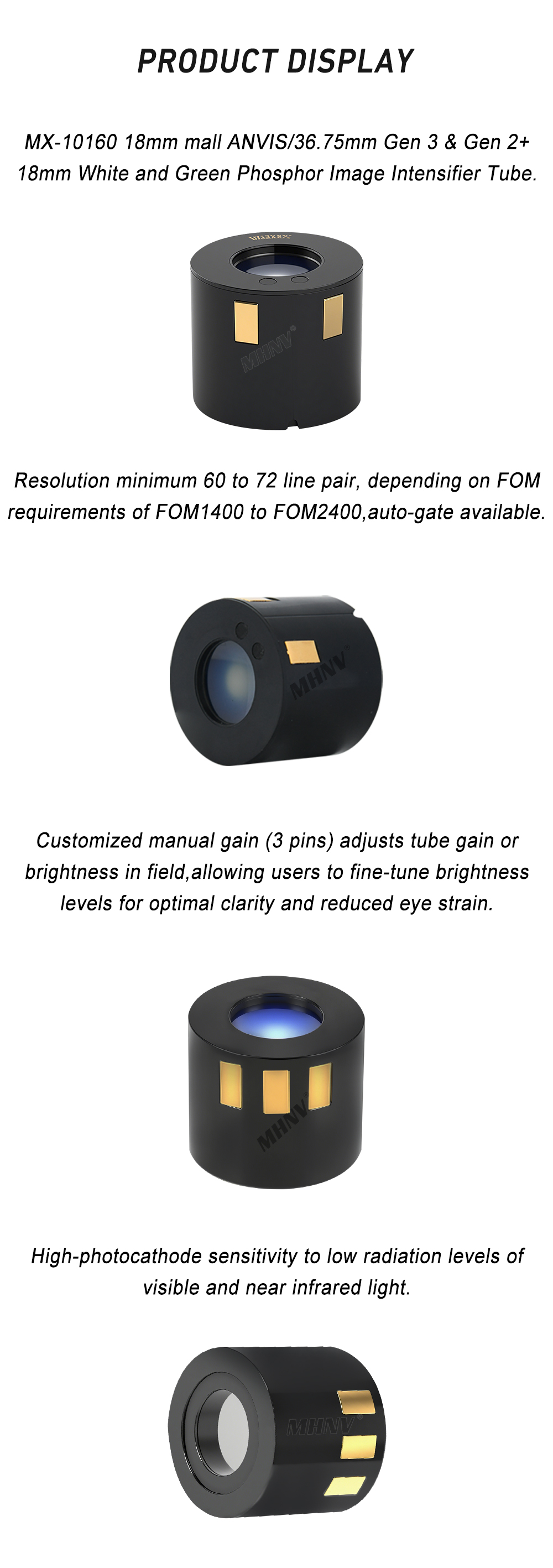

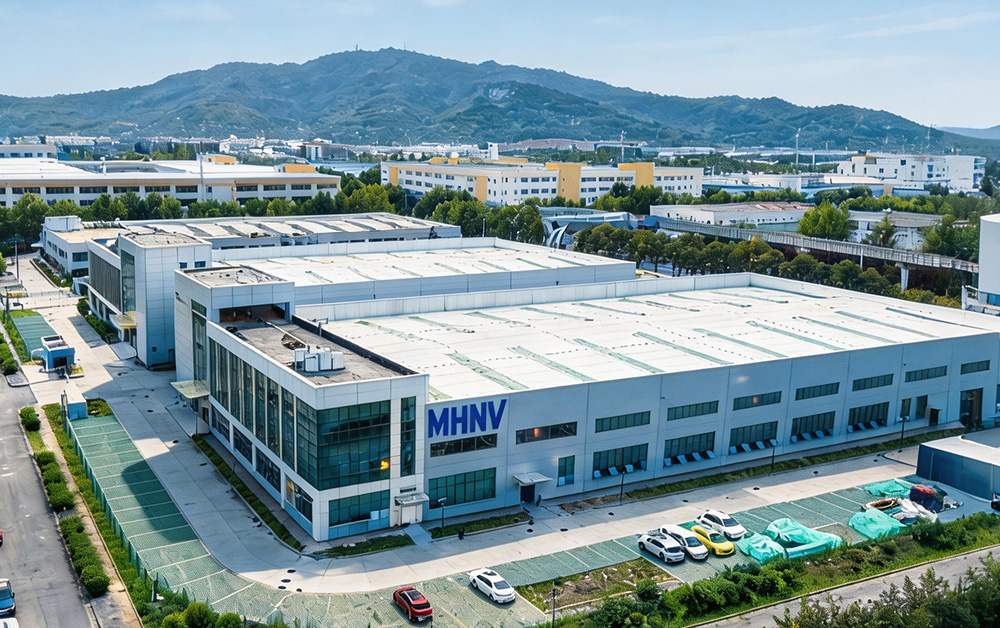

MH Electronics And Technology Co., Ltd. Two-Contacts Image Intensifier Tube is engineered for precision and reliability in the most demanding low-light environments. Utilizing the industry-standard MX-10160 form factor, this tube is the heart of professional-grade night vision systems, including binocular goggles (BNVD) .
Developed with proprietary photocathode technology and a high-efficiency Microchannel Plate (MCP), our tubes deliver exceptional Signal-to-Noise Ratios (SNR) and resolution. Whether for defense, law enforcement, or scientific research, our intensifier tubes provide the edge needed in complete darkness.
Specification
|
MHNV Standard Grade
|
MHNV Elite Grade
|
|
Model Type
|
mx10160
|
mx10160
|
|
Photocathode
|
High-sensitivity S25
|
GaAs
|
|
Resolution
|
64 lp/mm
|
72+lp/mm
|
|
SNR
|
23-25
|
28-35
|
|
FOM
|
1600+
|
2000-2400+
|
|
Phosphor
|
P43/P45
|
P43/P45
|
|
Working Time
|
10000Hours
|
12000+Hours
|
Core Advantages
Auto-Gating Technology: Maintains high resolution and protects the tube from damage when exposed to sudden bright light sources.
Ultra-Compact Design: The two-contact interface allows for seamless integration into compact optical housings without the need for manual gain pigtails.
Superior Resolution: Achieves up to 72 lp/mm, ensuring sharp image contrast and long-range target identification.
Long Operational Life: Rated for over 10,000 hours of performance with minimal EBI (Equivalent Background Illumination) degradation
Why Leading Security Partners Trust MHNV® Tubes
Are you looking for a reliable, high-performance OEM ODM partner for your night vision production? We provide professional-grade components backed by rigorous testing and global compliance.
-
99% Batch Consistency: Each tube undergoes automated laboratory testing to ensure performance matches the provided Certificate of Conformance (CoC).
-

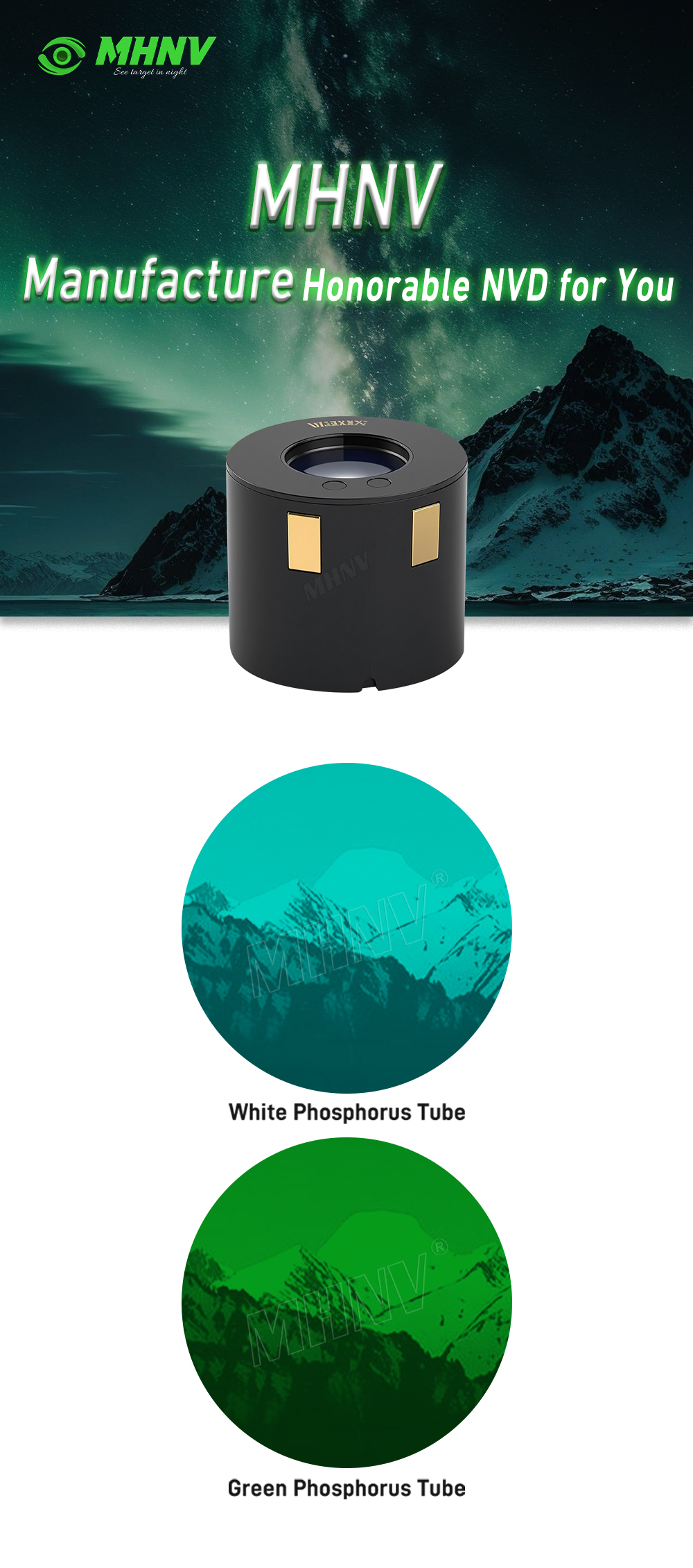

Custom Phosphor Options: Choose between the classic Green Phosphor (P43) for traditional contrast or White Phosphor (P45) for reduced eye fatigue and enhanced depth perception.
-
Global Compliance: Our export-grade tubes meet dual-use technology regulations (subject to regional licensing).
Request A quick Quote (WhatsApp:+ 86-18792456795)
