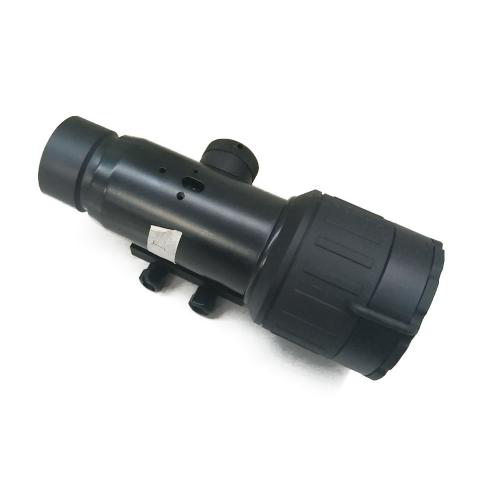

MH-MF80 Day and night front attached night vision scope 50mm
2021-01-20
MH-MF80 high accuracy low light night vision front attached scope is equipped for high accuracy rifle with picatinny rail, connecting with the front part of day riflescope to use, which is used for night viewing/aiming.
The front attached scope adopte with Gen3 image intensifier tube, with high accuracy day scope adjusted well for usage, which connects with the front part of day light riflescope directly at night, and without effect to the aiming point, also no need of adjusting the rifle, then extend the weapon equipment night function, and make the whole system available for day and night using equipment. Day scope with 4x~15x adopte with standard picatinny interface, and it's avalable for all kinds of calibier guns with picatinny mount rail. The product with compact design, solid, high quality optical image, and high impact zero stability, which can be used under all kinds of extreme bad environmental conditions.
SPECIFICATIONS
|
SPECIFICATIONS
|
|
Model
|
MH-MF80 Gen3
|
|
Magnification
|
1x
|
|
FOV, deg
|
12°
|
|
Objective diameter, mm
|
50
|
|
Dimension(mm)
|
180x80x92
|
|
Weight(g)
|
860
|
|
Mounting bracket
|
MIL-STD 1913 Picatinny
|
|
Gen 3 image intensifier tubes
|
|
Photocathode type
|
18mm S-25
|
|
Photocathode sensitivity, typical, μA/lm
|
≥550
|
|
Resolution, typical, Ip/mm
|
57-64
|
|
Luminous gain, typical, fl/fcd
|
19000-25000
|
|
Signal-to-noise ratio, typical
|
20:1 or better
|
|
FOM, typical
|
≥1150
|
|
Tube reliability standard, hour
|
10000
|
|
Keep time, typical, year
|
10
|
|
Warranty, year
|
1
|
|
Environment data
|
|
Operating temperature, ℃/℉
|
-40° to +50° / -40° to +122°
|
|
Storage temperature, ℃/℉
|
0° to +50° / 32° to +122°
|
|
Immersion, hour
|
1 meter for 0.5 (Optional)
|
|
Humidity, %
|
up to 98%
|
|
Day time riflecope
|
|
Magnification
|
4x~15x(comtinuously adjustable)
|
|
FOV
|
4 x with 6°, 15 x with 1.5°
|
|
Exit pupil diameter
|
≥3mm
|
|
Eye-Relief
|
≥60mm
|
|
Focusing range
|
50m to infinity(∞)
(continuously adjustable)
|
|
Diopter range
|
-4~+2 diopter
|
|
Reticle range
|
at high-low-11~+5,
at direction-8~+8 mil
|
|
Reticle accuracy range
|
0.05 each unit, mil±10%
|
|
Hit zero momentum
|
≤ 0.1 mil
|
|
Weight
|
≤1.3kg
|
