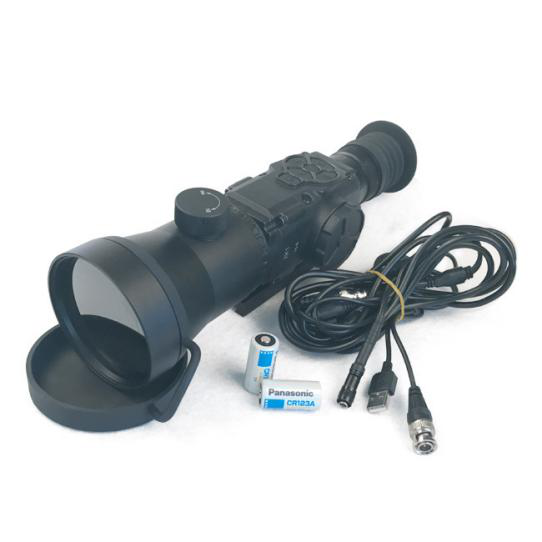

MH-75-3/ MH-75-6 Thermal weapon sight with 75mm lens
2021-01-19
This series thermal scope adopt advanced high resolution 384*288px / 640*480px uncooled thermal sensor. This series are a solid state, uncooled, long-wave infrared, magnified dedicated weapon scope intended for day and night engagements without the need to remove the sight from the rifle. And they are great helpful equipment for hunting lovers. Thermal image can cut through total darkness, haze, dust, fog and smoke to detect target, and help to see through various animal camouflage. With proper mount with hunting gun like 1913 picatinny rail, the thermal image also helps to shoot the animals.
MAIN FEATURES
*None light leakage eyepiece design
*Various reticle patterns. The brightness of the reticle can be adjusted
*Selectable color modes, white hot/black hot/rainbow/various colors
*Multiple power supplies
*Real-time video output
*1913 Picatinny
|
Model
|
MH-75-3/MH-75-6
|
|
Sensor resolution
|
Uncooled 384*288px/ 640*480px
|
|
Material
|
Amorphous Silicon
|
|
Image size
|
800*600px
|
|
Frame rate
|
50Hz
|
|
Video output
|
Yes
|
|
Display
|
Color OLED matrix, SVGA<800*600
|
|
Thermal sensitivity
|
<50mK
|
|
Spectral range
|
7~14μm
|
|
Lens system
|
75mm F1.0
|
|
FOV, deg
|
(H*V)5.0°*3.7°/8.3°×6.2°
|
|
Eye relief
|
52mm
|
|
Optical magnification
|
6x/3.5x
|
|
E-Zoom
|
1x /2x/4x
|
|
Diopter
|
-4 to +2D
|
|
Distance of the human detection, m
|
1400/1800
|
|
Distance of the human recognition, m
|
600/750
|
|
Distance of the human identification, m
|
350/460
|
|
Palette
|
White hot/ black hot/ multiple color modes
|
|
Environmental rating
|
Waterproof/ dustproof
|
|
Start up time
|
<5 sec
|
|
Operating temperature
|
-40℃~+50℃
|
|
Storage temperature
|
-45℃~+85℃
|
|
Battery type
|
4 x CR 123A battery type
|
|
Battery life
|
8h
|
|
Low battery indicator
|
Yes
|
|
Dimension
|
300*55*60mm
|
|
Weight
|
1300g
|
