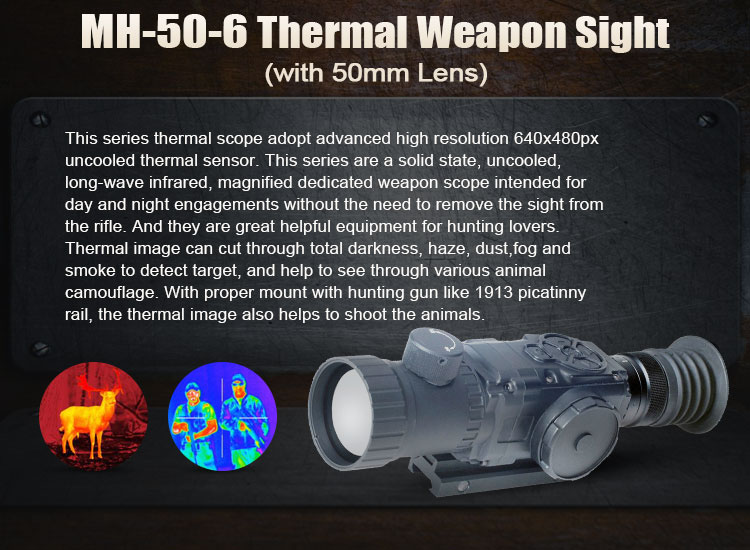

MH-50-6 Long-range night vision thermal weapon sight
2020-10-22
Introduction:
MH-50-6 Thermal Scope TRS series are a solid-state, uncooled, long-wave infrared, magnified dedicated weapon scope intended for day and night engagements without the need to remove the sight from the rifle. They are advanced and excellent helpful equipment for hunting lovers. Rongland Thermal Scope can cut through total darkness, haze, dust, fog and smoke to detect a target, and help to see through various camouflage. With proper mount with hunting gun like 1913 Picatinny rail, the thermal image also helps to point targets.
Technical Specification:
|
Model
|
MH-50-3/6
|
|
Sensor resolution, px
|
Uncooled 384x288px / 640x480px
|
|
Material
|
Amorphous Silicon
|
|
Image size, px
|
800x600
|
|
Frame rate, Hz
|
50
|
|
Video output
|
Yes
|
|
Thermal sensitivity
|
<50 mk
|
|
Display
|
Color OLED matrix, SVGA <800x600
|
|
Spectral range, μm
|
7~14
|
|
Lens system, mm
|
50mm F/1.0
|
|
FOV, deg
|
(H x V) 7.5°x 5.6°/ 8.3°x 6.2°
|
|
Eye relief，mm
|
52mm F1.0
|
|
Optical magnification, x
|
4x / 2.5x
|
|
E-Zoom，x
|
1x / 2x / 4x
|
|
Diopter , D
|
-4 to +2
|
|
Distance of the human detection
|
1200/1550m
|
|
Distance of the human recognition
|
360/620m
|
|
Distance of the human identification
|
300/370m
|
|
Palette
|
White hot/black hot/ multiple color modes
|
|
Environmental rating
|
Waterproof / dustproof
|
|
Start up time
|
<5 sec
|
|
Operating temperature, ℃
|
-40℃ to +50℃
|
|
Storage temperature, ℃
|
-45℃ to +85℃
|
|
Battery type
|
4 x CR123A battery type
|
|
Battery life, hour
|
8
|
|
Low battery indicator
|
Yes
|
|
Dimension, mm
|
235x74x66
|
|
Weight, g
|
760
|
