Items
|
Technical specification
|
|

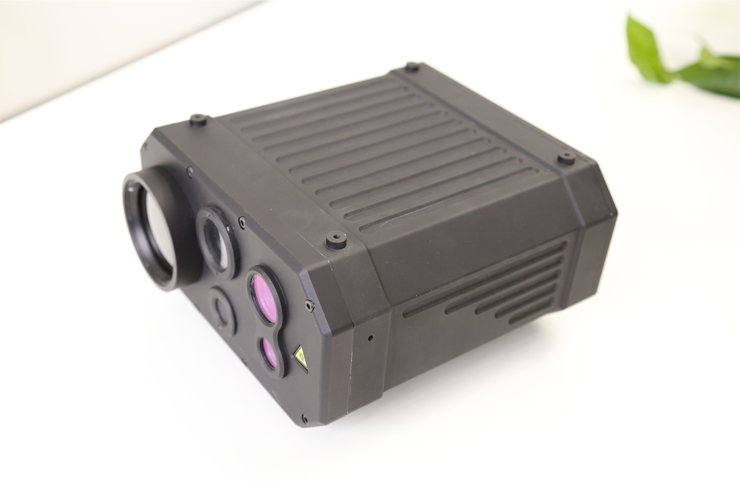

Infrared Imager
|
|
Detector type
|
Uncooled focal plane
|
|
Detector size
|
641×512@17μm
|
|
Spectral Range
|
8～14μm
|
|
Frame Rate
|
50Hz
|
|
NETD
|
＜50mK@300k
|
|
Infrared Focal Length
|
62mm (F#1.0)
|
|
Focus Range
|
8m～∞
|
|
Field of View
|
7.4°× 5.6°
|
|
Boot Time
|
＜5 s
|
|
Zoom
|
×2,×4
|
|
Pole
|
white hot/black hot（pseudo-color）
|
|
Display
|
1024×768 LED
|
|
Daylight / Night vision
|
|
Detector
|
1/2’ Ultra low illuminance
|
|
Resolution
|
720×576
|
|
Working illumination
|
0.001 Lux(monochrome)
|
|
Focal Length
|
35mm
|
|
Features
|
3D DNR, Auto Shutter, Wide Dynamic
|
|
Laser Rangefinder
|
|
Working wavelength range
|
1.54μm(eye-safety)
|
|
Range
|
50~4000m (Max 5000m)
|
|
Accuracy
|
<±2m
|
|
Repetition rate
|
12 times/minute
|
|
Efficiency
|
>98%
|
|
Photo/Video Storage
|
|
Photo Snap
|
JPEG
|
|
Video Recording
|
640×480@25Hz
|
|
Video storage
|
32Gb
|
|
Video Data output
|
High Speed USB2.0
|
|
Distance
|
|
Persons(US DOD Standing man)
|
Detection：2.5km Recognition：1.0km
|
|
Vehicle(NATO Tank)
|
Detection：4km Recognition：1.6km
|
|
* Actual range may vary depending on camera setup, environmental conditions, user’s experience, and display method.
|
|
Power
|
|
Rechargeable lithium battery
|
4×NCR18650B 7.2V /3000mAH
|
|
Working time
|
≥ 5hours (IR mode)
|
|
Environmental
|
|
Protect standard
|
IP66
|
|
Operating Temperature
|
-30°C～+60°C
|
|
Storage Temperature
|
-40°C～+70°C
|
|
Humidity
|
5%～95%( Non-condensing)
|
|
Vibration
|
Sweep frequency:5-200-5Hz,G-force:2.5g
|
|
Impact
|
10g/11ms Half sine wave
|
|
Physical Parameter
|
|
Product Weight
|

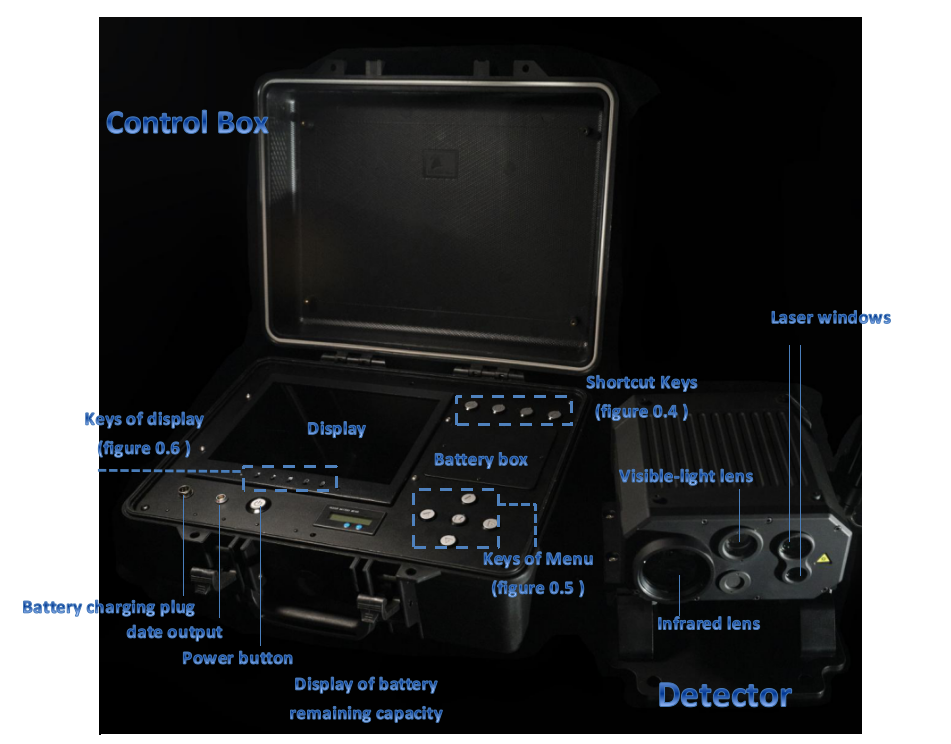

Control box :6.5kg （Include Battery）
|
|
Detector:2.4kg
|
|
Control box:5.6kg
|
|
Dimension (mm)
|
Control box:410（L）×304（W）×120（H）
|
|
Detector210（L）×190（W）×100（H）
|
|
Shock mount:410（L）×208（W）×75（H）
|
|
Accessories
|
|
Cable
|
USB2.0& Video BNC connector
|
|
Batteries
|
4×NCR1850BM batteries with 2ch charger
|
|
Suitcase
|
safety suitcase
|
