MH-D thermal camera see clearly in any conditions
2020-07-20
The MH-D runs off 9-32 VDC input power and features standard NTSC or PAL video output for compatibility with most monitors or displays (monitor not included with base model package). You can connect the camera to your existing vehicle head unit, but make sure you have the correct inputs available. The MH-D video output is a male AV jack .

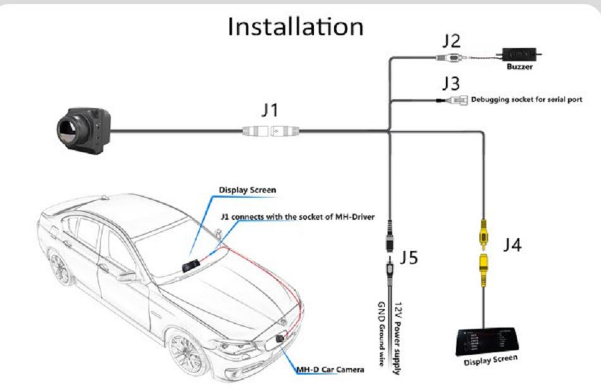

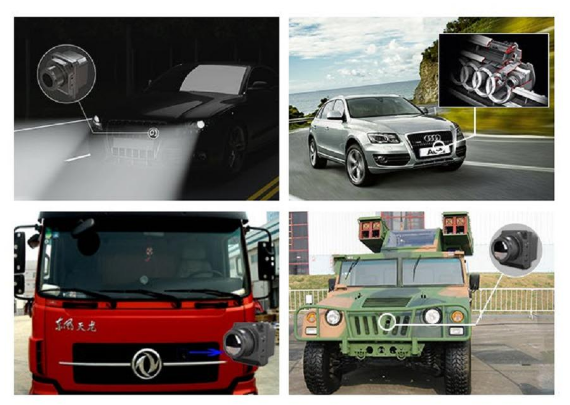

Installing the camera system is relatively simple.You must first find a mounting location for the camera (base model does not include camera mount). MH recommends that the camera be mounted between 19 and 31 inches high when measured from ground level – optimal height is listed as 25.5 inches high. MH also says that, in order to get the best out of the camera's Pedestrian and Vehicles detection feature (not included on the base model), the camera should be mounted so it is centered with the vehicle as best as possible. Make sure to mount the camera as level as possible with the road and try to align the center of the image with the horizon.
