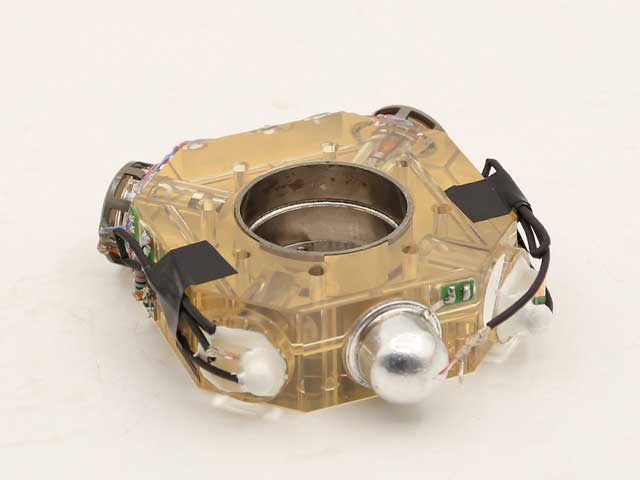

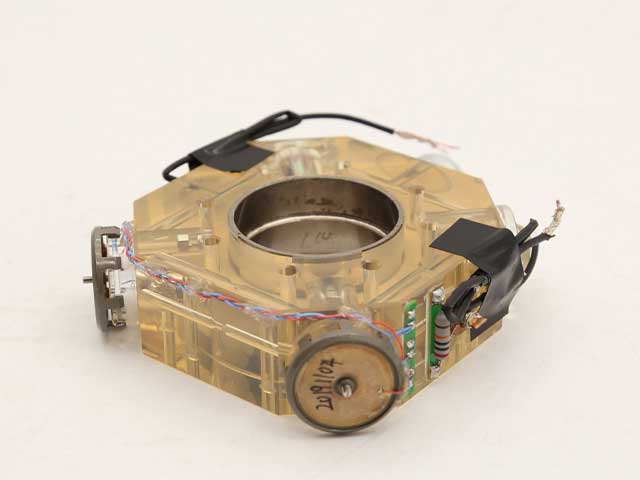

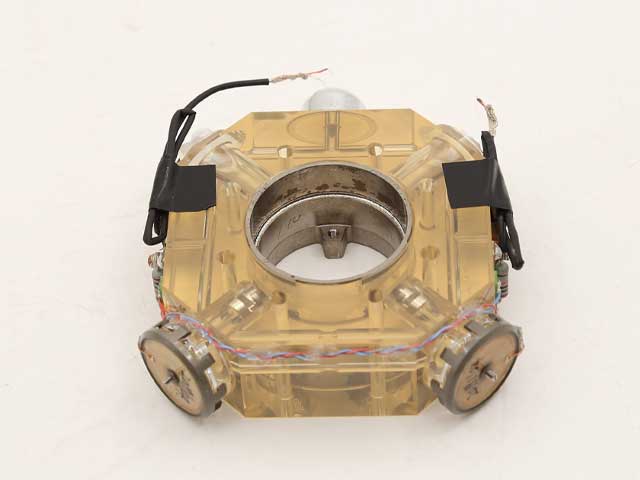

| High Precision Ring Laser Gyroscope |
Contact Engineer manager
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-18792456795
Email: mh_elec@126.com or jacky@mh-elec.com
Ring laser gyroscope is the core of various high-precision positioning and orientation devices, inertial/combined navigation systems, movable measuring system and high-speed rail/highway measurement systems, they can be used in multiple fields, such as precision aerial photography, aerial mapping, printing equipment inspection, underwater underground navigation mapping and other fields.
|
NO.
|
ITEM
|
INDEX
|
NOTES
|
|
Class A
|
Class B
|
|
1
|
Roll,
Pitch and
Azimuth
Angular Rate
|
≦±300°/S
|
|
|
2
|
Constant Bias
|
≦±0.5°/h
|
≦±0.5°/h
|
|
|
3
|
Bias Stability
|
≦0.015°/h
|
≦0.020°/h
|
1σ
|
|
4
|
Bias
Repeatability
|
≦0.015°/h
|
≦0.020°/h
|
1σ
|
|
5
|
Output Angl
e Increment
|
≦0.58''/LSB
|
|
|
6
|
Start-up Time
|
﹤20s
|
|
|
7
|
Operating
Temperature
|
-40°C～70°C
|
|
|
8
|
Impact Force
|
15g/30g
|
|
|
9
|
Dimensions
|
203m
mXX195
mmXX130mm
|
|
|
10
|
Weight
|
≦8kg
|
|
|
11
|
Power
|
±5V, +12v
，±45V, -12v1，
-12v2，-12v3，
-12v4
|
|
|
12
|
Data
Communication
|
RS422
|
|
|
13
|
Data
Refresh Rate
|
100Hz
|
|
|
14
|
Baud Rate
|
115200bps
|
