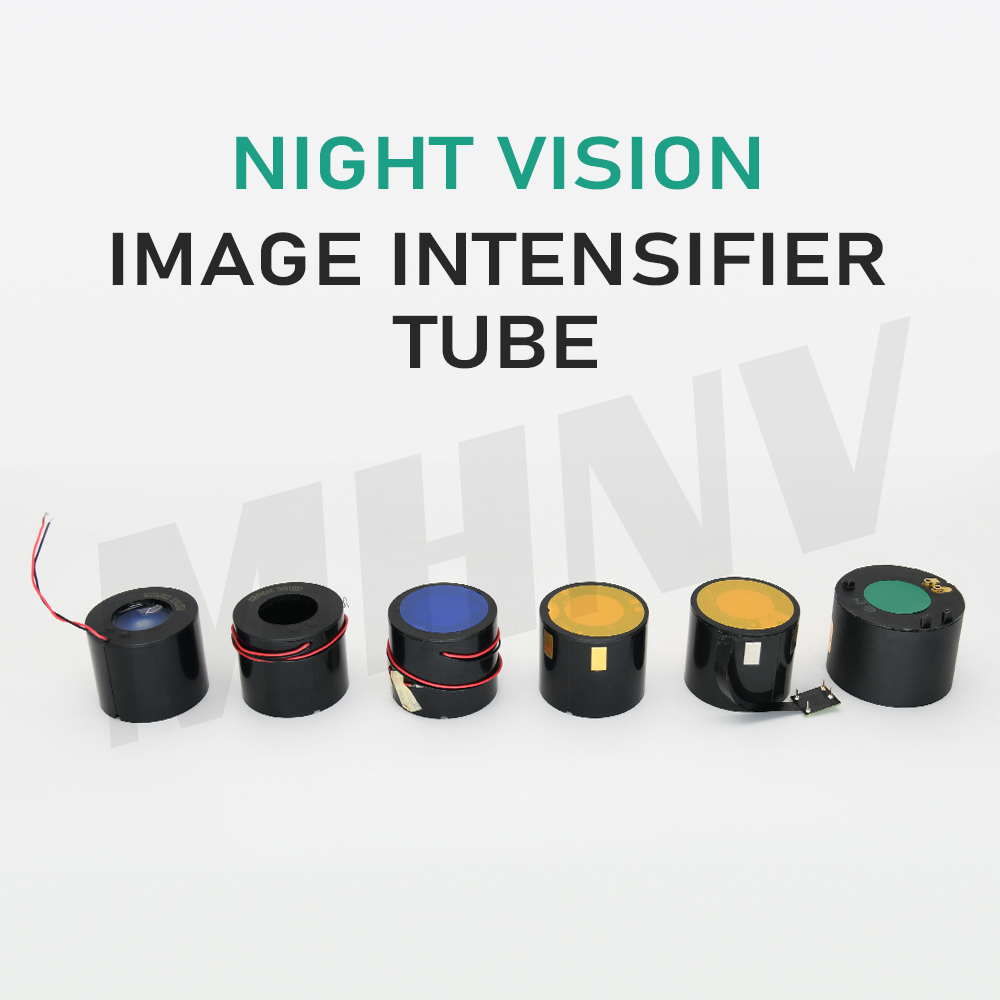

MH image intensifier tube is a device that enhances low levels of light to produce a brighter and more visible image. It takes in incoming light, converts it into electrons through a photocathode, multiplies the electrons through an electron multiplier, and then reconverts the electrons back into visible light on a phosphor screen. This technology is widely used in night vision equipment, medical imaging, and other applications where enhanced vision in low-light conditions is required.
MAIN FEATURES:
1)High Resolution: 1300-2200;
2)Manual Gain (Optional);
3)Superior Sensitivity: 700-2400;
4)Can be customized upon request;
5)Image intensifier Tube With Auto-gating;
6)White phosphorus tube and green;
7)phosphorus tube for your choice;
MH image intensifier tube works through several steps. Firstly, it has a photocathode that converts incoming photons of light into electrons. Then, these electrons are accelerated and multiplied by an electron multiplier. Finally, the multiplied electrons strike a phosphor screen, which converts them back into visible light, resulting in a brighter and enhanced image. This process allows for better visibility in low-light conditions.
PRODUCT SPECIFICATIONS
FOM
1400+
1600+
1800+
2000+
Sensitivity (μA/lm)
700+
750+/850+
1000+
1000+
SNR
23+
25+
28+
28+
Resolution(lp/mm)
64+
64+
64-72
64-72
Photo Cathode
S25+
S25+
S25+
S25+
Operating voltage(v)
2.2-3.4
2.2-3.4
2.2-3.4
2.2-3.4
Operating current(mA)
15
25
25
25
Luminance gain(cd/m²/lx)
8000-12000
9000-12000
10000-12000
10000-12000
Maximum output brightness (cd/m²)
4~8
4~8
4~10
4~10
EBI (μlx)
≤0.25
≤0.25
≤0.25
≤0.25
Working illumination range (lx)
/
1×10–⁶~5×10⁴
1×10–⁶~5×10⁴
1×10–⁶~5×10⁴
Uniformity of luminance(2856K)
3:1
3:1
3:1
3:1
Cathode effective diameter (mm)
≥17.5
≥17.5
≥17.5
≥17.5
Power supply
Non Auto-gate/Auto-gate
Non Auto-gate/Auto-gate
Auto-gate
Auto-gate
Fluorescent powder
P22/P43/P45
P43/P45
P43/P45
P43/P45
Weight (g)
≤80
≤80
≤80
≤80
Power dissipation (mW)
33-51
55-85
55-85
55-85

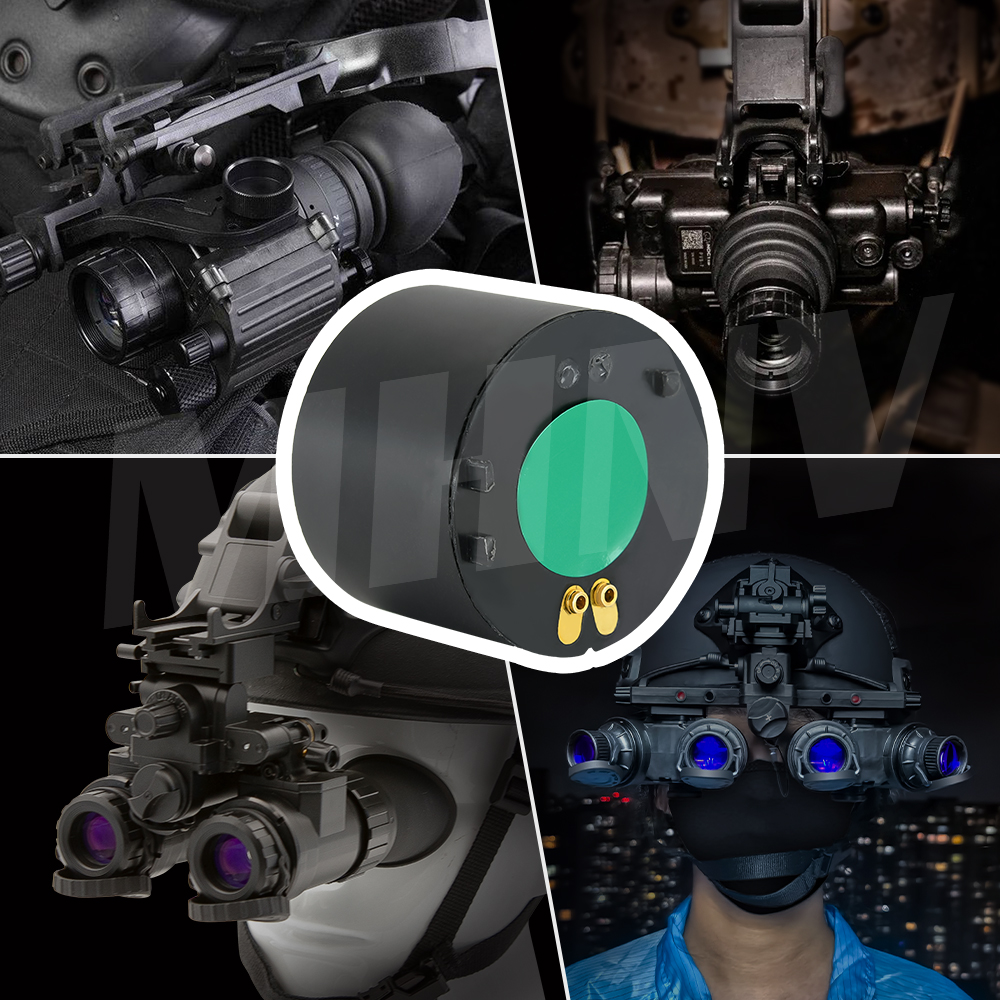

The MH image intensifier tube is highly adaptable and can be used in a variety of night vision devices such as PVS14, PVS7,PVS31,and GPNVG. It plays a crucial role in enhancing the performance of these night vision systems by amplifying low levels of light and producing a clearer and more visible image. With its advanced technology and reliable performance, the MH image intensifier tube is an essential component for those seeking high-quality night vision capabilities.
