The detector is equivalent to the human brain. If a person does not have a brain, it is an empty shell. If the movement does not have a detector, the effect is the same. Infrared detectors are divided into cooling type and non-cooling type. Cooling type infrared detectors are currently mainly used in high-end Military equipment is expensive; uncooled infrared detectors can work at room temperature, with small size and low power consumption, and are often used in civilian and some military applications. Thermosensitive materials are an important bridge between sensing infrared radiation and output signals, and are the core components of infrared detectors. At present, the thermosensitive materials of uncooled infrared detectors are mainly vanadium oxide (VOx) and amorphous silicon (α-Si).
2. Clarity
The detector resolution of an infrared thermal imager is an important indicator of clarity. The resolution of the detector directly affects the final imaging effect. The higher the resolution, the clearer the image, the clearer the object seen, and the better the user experience. good.
3. Core technology
The pixel pitch of the infrared thermal imager detector is one of the core technologies of the infrared thermal imaging industry. The pixel pitch continues to break through new records. At present, the mainstream is 17 microns, and it is moving towards 14 microns. Advanced level 12 micron detectors too.
4.High frame rate
The number of pictures displayed per second, the higher the frame rate, the more coherent the picture movement and the clearer the picture quality.
The thermal imaging module developed and produced by our company has four models, MH-SM567-3/6 (without baffle) and MH-TC384/TC640 (with baffle), which have been sold to all over the world on a large scale.
PRODUCT OVERVIEW

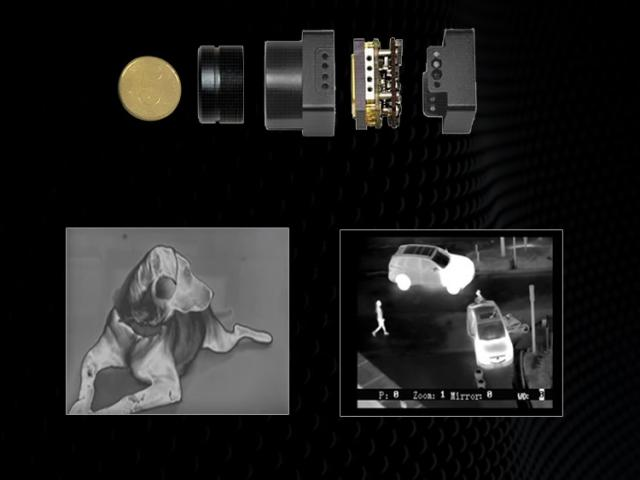

MH-SM567-3/6 Gen2 thermal module is the smallest thermal imaging module in the world.
MH-SM567-3/6 adopts the latest Gen2 384x288px/640*480@17umFPA uncooled detector.
MH-SM567-3/6 can provide clearer picture and customized connection interface, they will bring
great success to your system integration.
MH-TC series is the smallest thermal imaging module in the world. MH-TC series Gen2 uses the latest
