2022-06-20

The MH-N infrared thermal imaging product is mainly used in advanced assisted driving of automobiles. It can obtain clear images during driving at night or in low light, and provide more comprehensive and accurate information on potential hazards to help The driver obtains a higher foresight ability.

The Difference With The Old Model(MH-D)

Item		MH-D	MH-N
Detector Type		384*288 Uncooled Microbolometer	Uncooled Vox 384*288px
Lens Focus		19 mm	9.7 mm/F=1.0
FOV		37.0°x28.0°(PAL), 35°x24°(NTSC)	28°x21°(PAL), 27°x18°(NTSC)
Cable		Two Cables	Only One Cable
Weight		360 g	200 g
Video Output Resolution		50 Hz PAL, 60Hz Ntsc	25Hz、768×576@PAL or 30Hz、720×480@NTSC
Detection Range	Human(1.8m*0.5m)	≥200 m	≥150 m
	Vehicle(2.3m*2.3m)	≥400 m	≥300 m

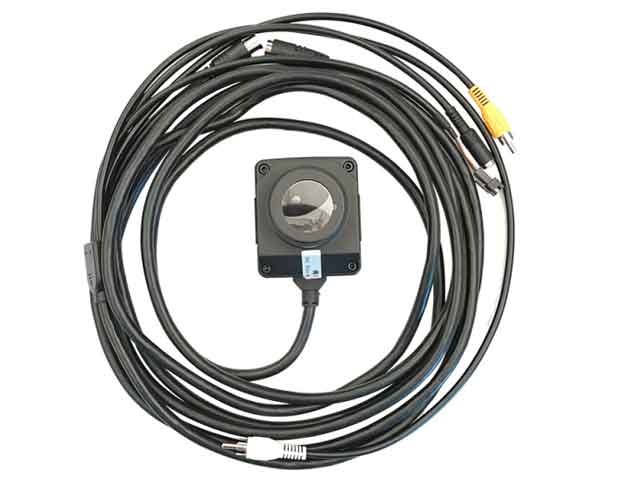

MH-D (The old model)

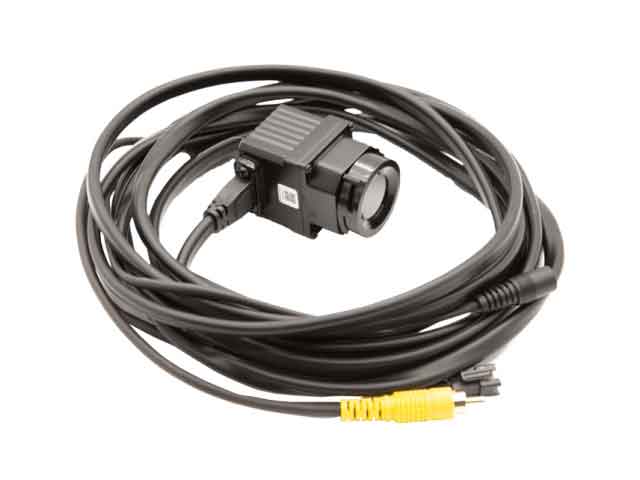

MH-N (The new model)

Summarize

In conclusion, the MH-N is smaller and lighter than the MH-D. And the MH-N’s lens is smaller than the MH-D, so the MH-N’s filed of view is more bigger. The MH-N thermal car camera is easier to install than the MH-D because it has two cables integrated into one.

In addition, you also need to pay attention to the installation, must avoid the lens directly into the strange light sources such as sunlight and lasers, otherwise the device will be burned out.
