MH thermal modules are one of the smallest modules in the world, which use the latest gen2 640x480px/384x288px@17μm FPA uncooled detector. Offering the brilliant video quality and customized connection interface, it will bring great success in your system integration.

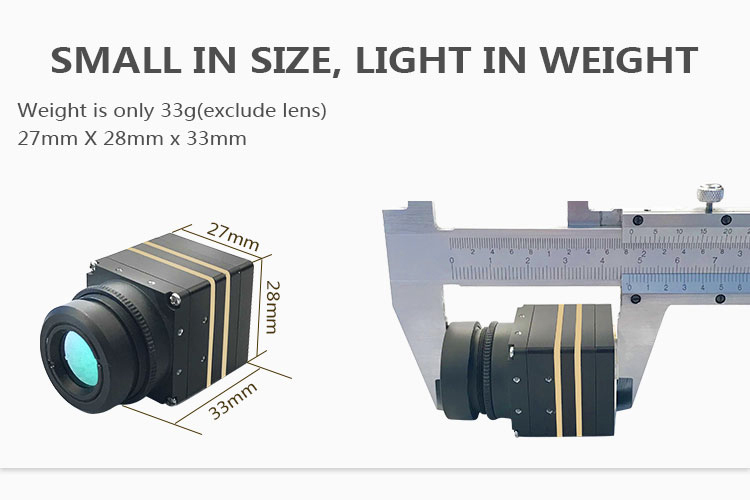

Small size (27*28*33mm) and light weight (33g) is will save you valuable space and loading weight in any of your system which is remarkable especially in UAV drone integrating.
Module interface can be customized to meet your system integration, such as HDMI, RJ45,USB or any interface you need.
Since the module interface is exposed in the air, the module cannot resist any water, dust or other stuff. However, the protect standard can be customized to IP67 which means the module can be immersed into 1m deep water for half hour without any damage under this protect level.
Installed with lens and PCB board, module can be integrated to a camera. During the camera integrating, lens base should be customized strictly as per your lens size which need be paid more attention. If you already have your own lens, you need tell the engineer size of the lens before our factory produce the module.
Module start up image can be customized as your required logo, image,etc. We can customized the start up image even your order is one piece.
