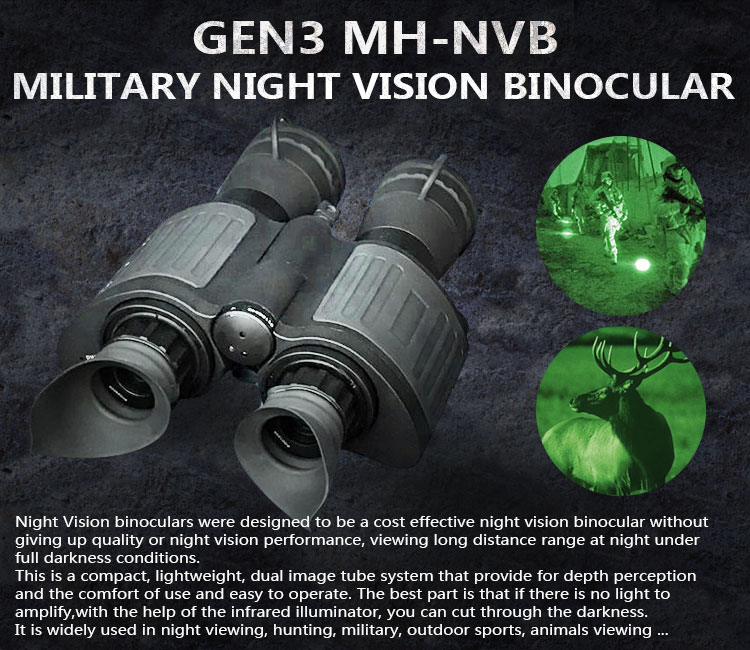

Gen3 MH-NVB night vision binocular
2019-06-01
Pls click or email to:mh_elec@126.com or jacky@mh-elec.com
Night vision binoculars were designed to be a
cost effective night vision binocular without giving up quality or night vision
performance, viewing long distance range at night under full darkness
conditions.
This is a compact, lightweight, dual image tube
system that provide for depth perception and the comfort of use and easy to
operate. The best part is that if there is no light to amplify, with the help
of the infrared illuminator, you can cut through the darkness. It is widely
used in night viewing, hunting, outdoor sports, animals viewing, etc.
Advantages: 1. Long-range infrared illuminator view long distance range
2.
5x magnification
3. Brightness source protection
4. Waterproof and fog resistance
Specification:
|
The main specifications
|
|
Model
|
Gen 3 MH-NVB
|
|
Field of view
|
20°
|
|
Lens system
|
86mm F/1.2
|
|
Interpupillary distance
|
57-72mm
|
|
Focus range
|
8.0m to infinity
|
|
Eye relief distance
|
15m
|
|
Diopter setting
|
+5°,-5°
|
|
Power supply
|
1CR123 batteries, 3V
|
|
MTBF
|
10000 hours
|
|
Bright ligth cut-off
|
Yes
|
|
Automatic shut-off system
|
Yes
|
|
Infrared illuminator
|
Yes
|
|
IR indicator
|
Yes
|
|
Gen 3 Image Intensifier Tubes
|
|
Photocathode type
|
18mm S-25
|
|
Photocathode sensiticity, uA/lm
|
≥550
|
|
Resolution, lp/mm
|
57-64
|
|
Luminous gain, fl/fcd
|
19000-25000
|
|
Signal-to-noise ratio, typical
|
20:1 or better
|
|
Keep time
|
10 years
|
|
Effective Distance
|
|
Detection range
|
550m - 600m
|
|
Recognition range
|
460m - 500m
|
|
5mW IR illuminator
|
55m - 60m
|
