MH-SM567-3 Mini Thermal Module
2019-05-21
Pls click or email to mh_elec@126.com or jacky@mh-elec.com

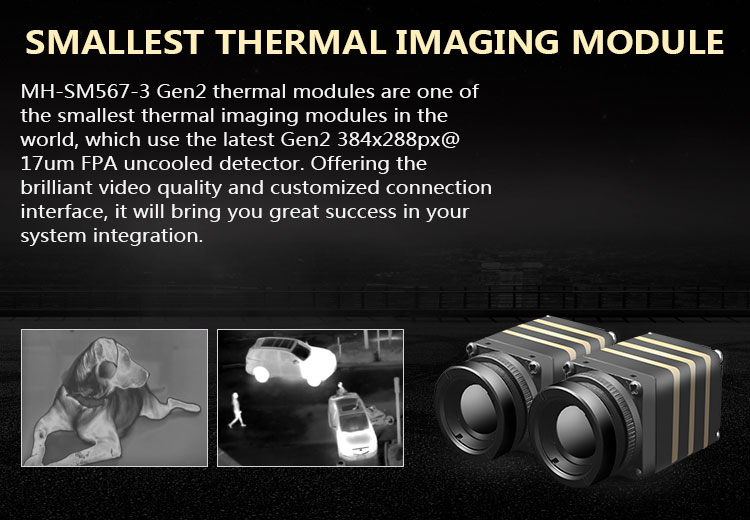

MH-SM567-3 mini thermal module has been used at
vehicles, like thermal camera for car, it also can be used on helmet, UAV,
telescope etc. This mini module use the latest Gen2 384*288px @17μm EPA
uncooled detector. It will bring you great success in your system
integration.
Advantages:
1. Smallest in size, light in weight
2. Interface of mini thermal imaging core
3. Different lens can be customized
4. Can be used on vehicle, monitor,
telescope, helmet, UAV etc.
5. Image color mode.
Specification:
|
Detector Performance
|
|
Type
|
Uncooled amorphous silicon FPA
|
|
Fpa format/Pixel pitch
|
384*288/17μm Gen2
|
|
Sensitivity
|
≤50mk at f/1.0 300k
|
|
Spectral range
|
8~14μm
|
|
Image Processing
|
|
Non-uniformity correction
|
Self-adaption calibration
|
|
Time to image
|
≤3s
|
|
Frame rate
|
50Hz
|
|
Lens
|
Optional 7mm, 9mm, 12mm, 19mm, etc.
|
|
Display Control
|
|
Modes
|
While hot / black hot / (Optional colorful)
|
|
Brightness
|
Auto/manual
|
|
Power
|
|
Operation Voltage range
|
DC: +2.5v~+5.5V
|
|
Typical
|
DC:3.7V
|
|
Reverse protection
|
Yes
|
|
Environment Parameters
|
|
Operation temperature range
|
Commercial: -20℃~+60℃
|
|
special purpose: -40℃~+60℃
|
|
Physical Attributes
|
|
Weight(excludes lens)
|
12g
|
|
Module Size
|
20*20mm
|
|
External power supply
|
Yes
|
